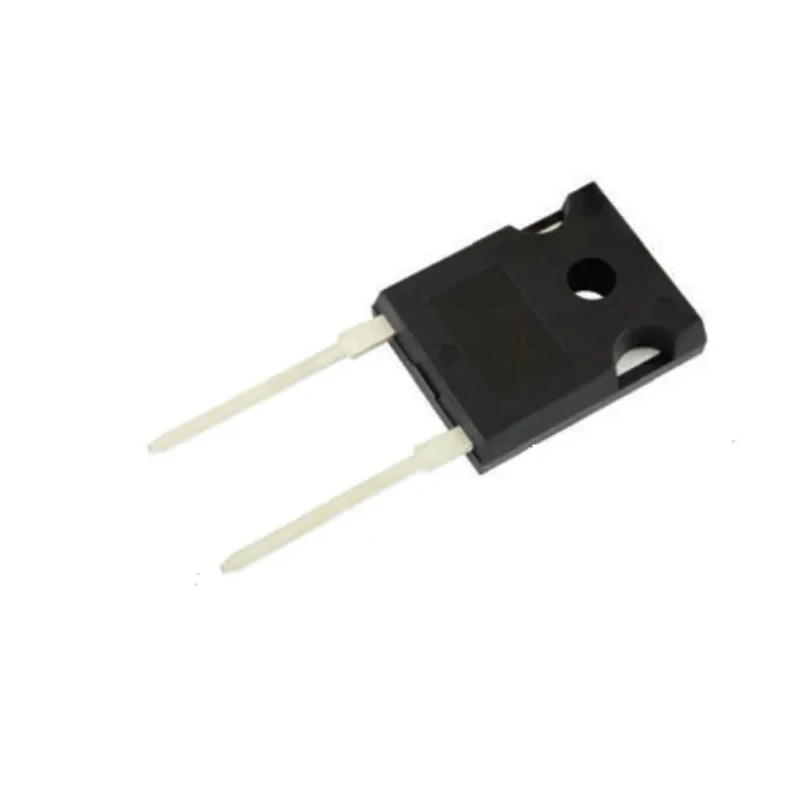

Vishay Ultrafast Soft Recovery Diode 60A Maximum Continuous Forward Current TO-247AD VS-60EPU04LHN3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-60EPU04LHN3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AD |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 60A |
| Diode Configuration | Single |
| Rectifier Type | Soft Recovery |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600A |
| Maximum Forward Voltage Vf | 0.87V |
Key Features
- Ultrafast recovery time ensures efficient performance in high-frequency applications.
- Soft recovery characteristic reduces electromagnetic interference and switching noise.
- Maximum forward voltage of 0.87 volts ensures low power loss.
- Operates reliably within a temperature range of -55°C to 175°C.
- Peak non-repetitive forward surge current of 600A supports high transient loads.
- Qualified to AEC-Q101 automotive standard for high reliability.
- Designed to minimize the need for snubbers in power converter circuits.
- Ideal for HF welding, power converters, and other electronic power conditioning systems.
Product Description
Vishay VS-60EPU04LHN3 is a high-performance ultrafast soft recovery diode designed for optimized efficiency and reliability in demanding electronic applications. Housed in a TO-247AD package, this diode supports a maximum continuous forward current of 60 amperes and operates over a broad temperature range from -55°C to 175°C, making it suitable for harsh industrial environments.
The soft recovery feature significantly reduces switching losses and electromagnetic interference (EMI), eliminating or reducing the need for additional snubber circuits. Its low forward voltage drop of 0.87 volts contributes to enhanced energy efficiency in power converters and high-frequency welding equipment.
This diode complies with the RoHS directive and meets the AEC-Q101 automotive standards, ensuring suitability for automotive and industrial applications that demand high reliability and quality. The device is particularly effective in power conditioning systems where switching losses are not the dominant losses, enabling reduced parts count and simplified circuit designs.
Applications include industrial power converters, HF welding machines, and other equipment requiring efficient rectification and low noise operation. The diode is also designed to meet the stringent requirements of automotive electronics with AEC-Q101 certification and passes the JESD 201 class 1A whisker test for quality assurance.
Ultrafast recovery time minimizes energy loss during switching. Soft recovery characteristic reduces electromagnetic interference. Robust operating temperature range from -55°C to 175°C. AEC-Q101 qualification ensures automotive-grade reliability.
High forward current rating supports demanding power applications. Low forward voltage drop enhances efficiency. Eliminates or reduces snubber circuitry for simpler designs. Compliance with RoHS environmental regulations.
Discover more Vishay semiconductor components and explore reliable Schottky diodes and rectifiers for industrial, automotive, and power electronics applications on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay VS-60EPU04LHN3 is 60 amperes.
It operates reliably within a temperature range of -55°C to 175°C.
The maximum forward voltage drop is 0.87 volts, which contributes to low power loss.
The peak non-repetitive forward surge current is rated at 600A, supporting high transient loads.
This diode is housed in a TO-247AD package type.
Yes, it is qualified to the AEC-Q101 automotive standard for high reliability.
The soft recovery characteristic of this diode significantly reduces electromagnetic interference and switching noise.
It is ideal for use in industrial power converters, HF welding machines, and other electronic power conditioning systems.
The diode complies with the RoHS directive, ensuring it meets environmental regulations.
This model is classified as a soft recovery rectifier.
The mounting type for the Vishay VS-60EPU04LHN3 is surface mount.
This diode belongs to the FRED Pt series.
