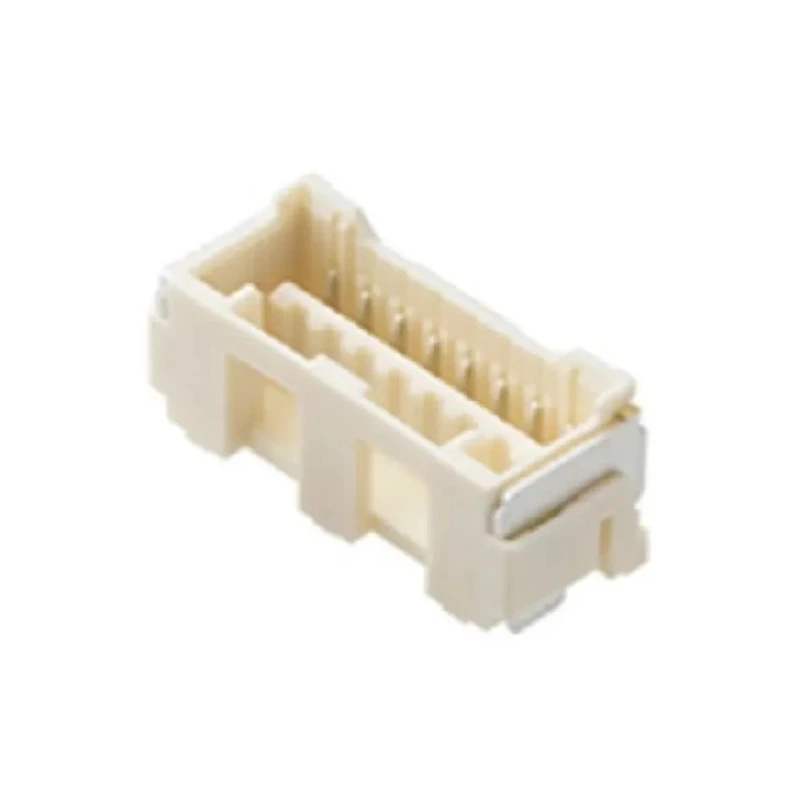

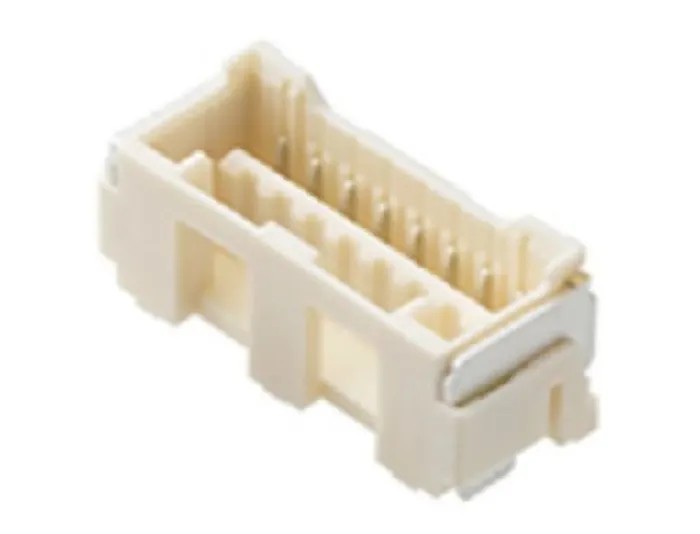

Molex 502584 Series Vertical Surface PCB Socket, 3-Contact, 1 Row, 1.5 mm Pitch, 100V, 2A, Thermoplastic Housing 502584-0360
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 2A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 502584 |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 105°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.5mm |
| Standards/Approvals | CHINA RoHS, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector System | Wire-to-Board |
Key Features
- Vertical orientation for efficient PCB mounting.
- Surface mount termination enabling automated assembly.
- Rated for 100V voltage and 2A current handling.
- Made with durable thermoplastic housing material.
- Operating temperature range from -40° to 105°C for reliability.
- Contact plating of tin on copper alloy contacts.
- Beige body color providing clear visual identification.
- Supports 1 row and 3 contacts configuration.
Product Description
Molex 502584-0360 vertical surface PCB socket is engineered for reliable wire-to-board interconnections in electronic components and assemblies. Featuring a 3-contact, 1-row design with 1.5 mm pitch, this socket supports up to 100V and 2A, making it suitable for a wide range of low-voltage electronic applications.
The socket employs a vertical orientation and surface mount termination type to facilitate efficient PCB mounting and automated production processes. Its thermoplastic housing is designed to withstand harsh operating environments, offering resistance to temperature extremes from -40°C to +105°C.
The contacts are constructed from copper alloy with tin plating for enhanced conductivity and corrosion resistance. The beige-colored body aids in visual inspections and assembly accuracy.
This PCB socket meets international standards including China RoHS and EU RoHS, ensuring compliance with environmental regulations and safety. It is manufactured in Japan, reflecting high manufacturing quality and consistency.
Ideal for industrial, electronic manufacturing, telecommunications, and automation sectors, this socket can be incorporated into circuit boards requiring secure and reliable plug-in connectivity. The surface mount design improves production efficiency by enabling soldering with automated pick-and-place equipment.
Vertical orientation for efficient PCB mounting. Surface mount termination enabling automated assembly. Rated for 100V voltage and 2A current handling. Made with durable thermoplastic housing material. Operating temperature range from -40° to 105°C for reliability.
Contact plating of tin on copper alloy contacts. Beige body color providing clear visual identification. Supports 1 row and 3 contacts configuration. Compliant with China RoHS and EU RoHS standards. Manufactured in Japan assuring high-quality standards.
Explore our extensive Electronics Components category for compatible PCB Sockets and connectors optimized for various industrial applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB socket is 100V.
This model has a current handling capacity of 2A.
The pitch size of the contacts is 1.5 mm.
The operating temperature range is from -40°C to +105°C.
It uses a surface mount termination type, facilitating automated assembly processes.
The housing is made of thermoplastic, and the contacts are constructed from copper alloy with tin plating.
This socket supports a configuration of 3 contacts.
The orientation of this model is vertical, designed for efficient PCB mounting.
Yes, it complies with China RoHS and EU RoHS standards.
It is manufactured in Japan, ensuring high manufacturing quality.
This socket utilizes a wire-to-board connector system.
The body of this socket is beige, providing clear visual identification.
