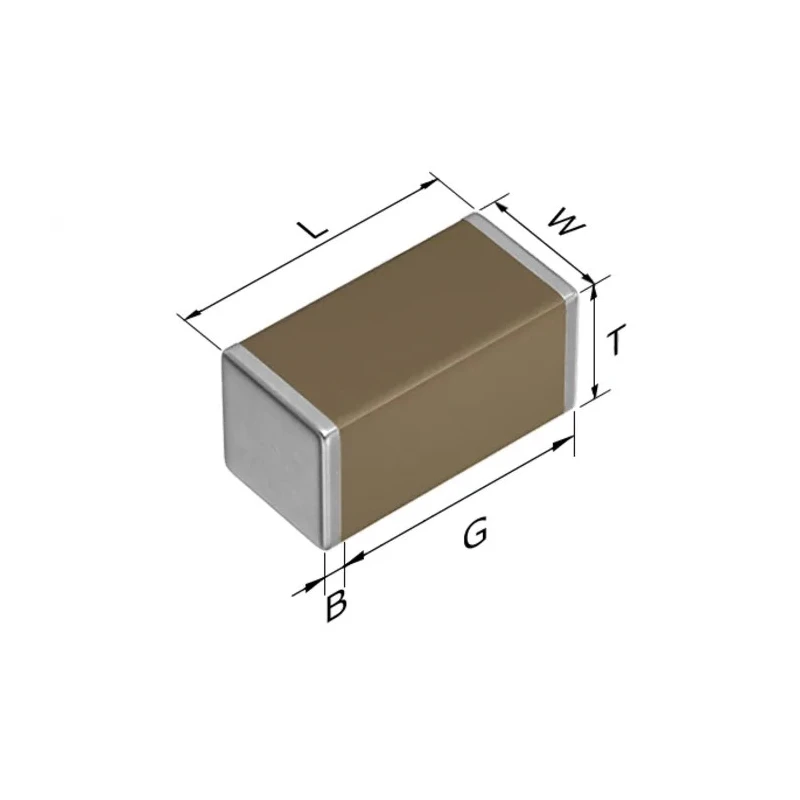

TDK 220 nF Multilayer Ceramic Capacitor, 250V dc, ±10 %, X7T Dielectric, Surface Mount 1206 Package C C3216X7T2E224K160AE
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V dc |
| Brand | TDK |
| Height | 1.6mm |
| Length | 3.2mm |
| Model | C3216X7T2E224K160AE |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | C |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1206 |
| Dielectric | X7T |
| Suppression Class | Class II |
Key Features
- This capacitor features an X7T dielectric suitable for stable operation up to 125°C.
- The tolerance is ±10%, providing consistent capacitance within specified limits.
- It uses soft termination conductive resin layers ensuring high mechanical endurance and thermal shock resistance.
- The surface mount package supports automated PCB assembly with reliable solder joints.
- Operating temperature ranges from -55°C to 125°C, suitable for diverse electronics applications.
- Designed for fail-safe design in battery lines and prevention of ceramic body cracks by board bending.
- Packaging is provided as Tape & Reel for efficient manufacturing usage.
- Product is of Japanese origin assuring quality manufacturing standards.
Product Description
TDK C3216X7T2E224K160AE multilayer ceramic capacitor is a high-quality component designed for surface mount applications. It offers capacitance of 220 nF and a voltage rating of 250V dc, making it suitable for a wide range of industrial and electronic circuits.
This capacitor belongs to the C series with X7T dielectric material, allowing operation up to 125°C with reliable performance. Its ±10% tolerance ensures consistent performance over the specified voltage and temperature ranges.
Equipped with soft termination, the capacitor includes conductive resin layers which provide enhanced mechanical endurance by absorbing thermal and mechanical stresses. This reduces the risk of solder cracks and ceramic body fractures due to board flexing or thermal shocks.
The 1206 surface mount package facilitates automated placement and soldering on printed circuit boards, suitable for modern mass production environments.
Typical applications include fail-safe battery line designs and devices requiring high-reliability multilayer ceramic capacitors. Its robust design is aimed at industrial, commercial, and consumer electronics sectors.
Packaged on Tape & Reel, this component supports efficient assembly line processing. Manufactured in Japan, this capacitor meets stringent quality standards. This capacitor features an X7T dielectric suitable for stable operation up to 125°C.
The tolerance is ±10%, providing consistent capacitance within specified limits. It uses soft termination conductive resin layers ensuring high mechanical endurance and thermal shock resistance. The surface mount package supports automated PCB assembly with reliable solder joints.
Operating temperature ranges from -55°C to 125°C, suitable for diverse electronics applications. Designed for fail-safe design in battery lines and prevention of ceramic body cracks by board bending. Packaging is provided as Tape & Reel for efficient manufacturing usage.
Product is of Japanese origin assuring quality manufacturing standards. Explore more high-performance Multilayer Ceramic Capacitors at EnvMart to find optimal solutions for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 220 nF.
It has a voltage rating of 250V dc.
The operating temperature range is from -55°C to 125°C.
This capacitor uses an X7T dielectric material.
The dimensions are 3.2mm in length, 1.6mm in width, and 1.6mm in height.
It is packaged on Tape & Reel for efficient assembly line processing.
The tolerance for this capacitor is ±10%.
This model supports surface mounting.
The termination type is surface mount.
This capacitor is manufactured in Japan.
It is suitable for fail-safe battery line designs and high-reliability electronic devices.
It features soft termination conductive resin layers that absorb thermal and mechanical stresses, enhancing mechanical endurance.
