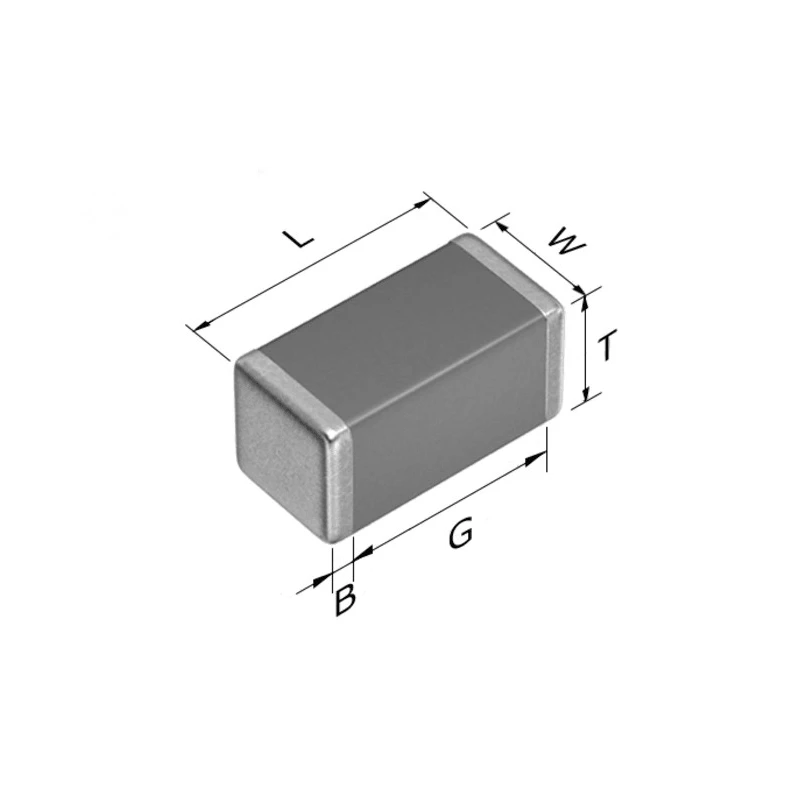

TDK 1 nF Multilayer Ceramic Capacitor 50V dc ±5 % Tolerance Surface Mount CGA2B2NP01H102J050BA

Free Delivery in India | Lowest Global Shipping Charges

TDK 1 nF Multilayer Ceramic Capacitor 50V dc ±5 % Tolerance Surface Mount CGA2B2NP01H102J050BA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	TDK
Height	0.5mm
Length	1mm
Model	CGA2B2NP01H102J050BA
Packaging	Tape & Reel
Width	0.5mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	150°C
Tolerance	±5 %
Capacitance	1nF
Minimum Operating Temperature	-55°C
Package/Case	0402
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

Operates in temperatures from -55°C to 150°C, suitable for high temperature applications.
Features C0G dielectric with stable capacitance and excellent DC bias properties.

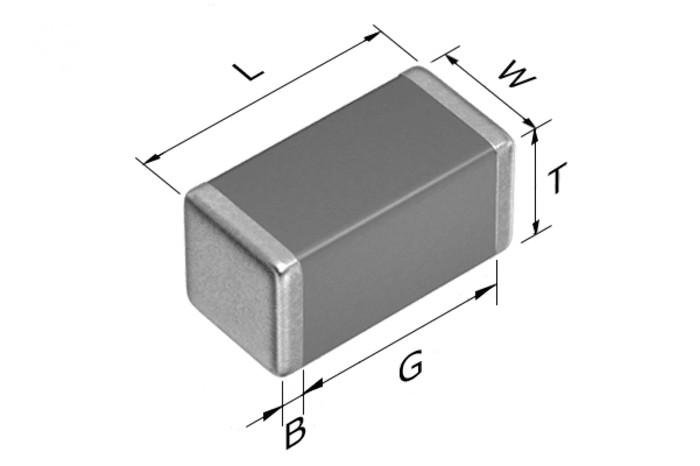

Surface mount device with 0402 package size (1 mm x 0.5 mm x 0.5 mm).
AEC-Q200 compliant for automotive and engine room applications.
Ideal for smoothing and decoupling in sensor modules and high temperature circuits.
Packaged in tape and reel format for automated assembly.

Product Description

TDK CGA2B2NP01H102J050BA is a high-quality 1 nF multilayer ceramic capacitor featuring a 50V dc voltage rating and ±5 % capacitance tolerance. This surface mount device uses C0G dielectric technology, renowned for excellent stability, minimal capacitance variation, and superior DC bias characteristics. The capacitor comes in a compact 0402 package with dimensions of 1 mm length, 0.5 mm width, and 0.5 mm height.

Engineered to withstand operating temperatures from -55°C up to 150°C, it is designed specifically for demanding environments such as automotive engine compartments and other high temperature industrial applications. The component meets the stringent AEC-Q200 automotive standard, ensuring reliability and durability for safety-critical systems.

The capacitor is packaged in tape and reel format to support high-volume automated assembly lines. Its surface mount termination type enhances ease of installation on printed circuit boards. Its Class I suppression classification ensures excellent performance for peripheral circuits, smoothing, decoupling, and sensor modules in advanced automotive and industrial electronics.

Applications include integration with insulated gate bipolar transistor drivers (IGDT), silicon carbide (SiC), and gallium nitride (GaN) modules where stable capacitance under high temperature and voltage stress is essential.

The CGA series capacitors by TDK offer excellent DC bias properties for optimized circuit performance in precision and high frequency filters. Operates reliably between -55°C and 150°C ambient conditions, suitable for automotive and industrial sectors.

C0G dielectric ensures minimal capacitance change over temperature and voltage variations. Compact 0402 package supports miniaturized electronic designs. Compliance with AEC-Q200 automotive standards guarantees robust performance under extreme conditions.

Mounted as surface devices with tape and reel packaging for efficient manufacturing.

This multilayer ceramic capacitor is ideal for industries including automotive, industrial electronics, HVAC systems, sensor modules, and power electronics manufacturing. TDK products are known for precision engineering and consistent performance, making this capacitor a reliable choice for manufacturing and repair applications. Browse EnvMart’s Electronics Components category for additional Multilayer Ceramic Capacitors and complimentary products.
