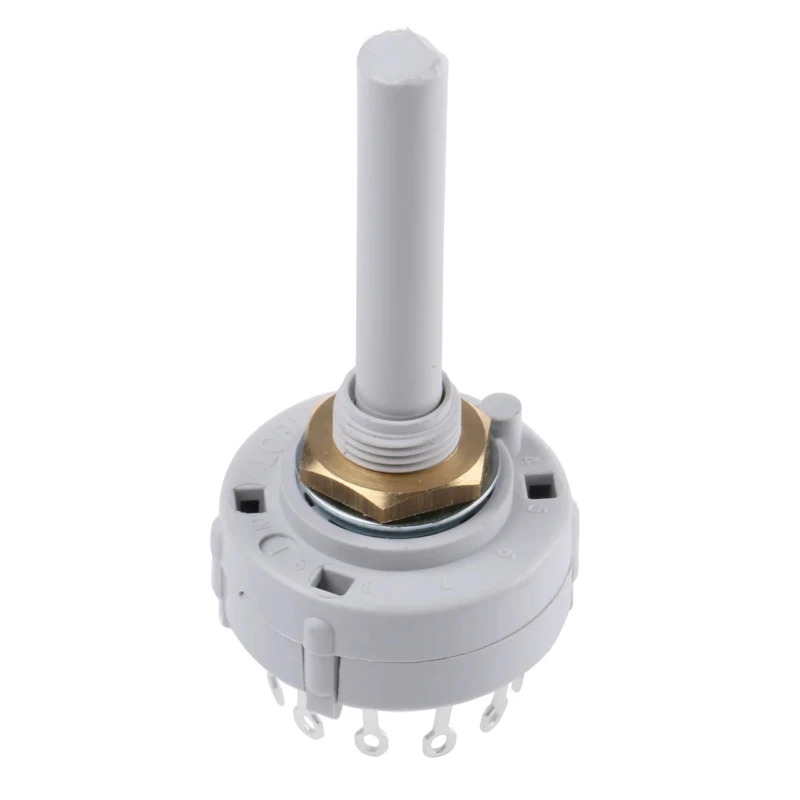

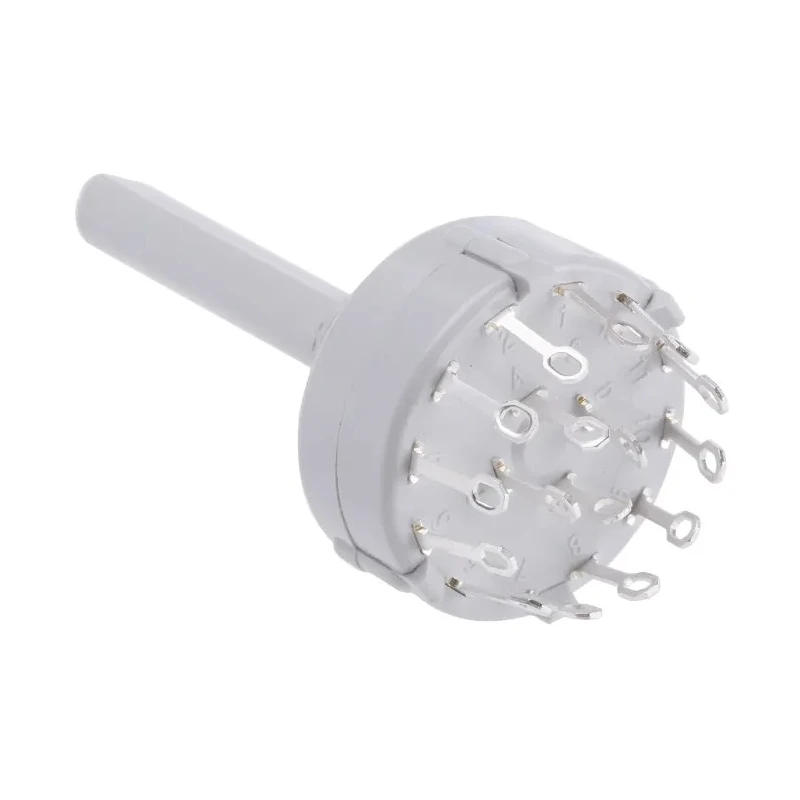

Lorlin Midget Wafer 3 Position 4PST Rotary Switch 150mA 250V AC/DC Silver Actuator CK1037
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Dimensions | 1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread |
| Height | 59.1mm |
| Model | CK1037 |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 4PST |
| Number of Positions | 3 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder Tab |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 4 |
| Standards/Approvals | RoHS |
| Actuator Colour | Silver |
| Switch Contact Current | 150mA |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 250V ac |
| Angle of Throw | 90 ° |
| Lorlin CK, 3 Position 4PST Rotary Switch, 150mA, Solder TabBrand | Lorlin |
Key Features
- This rotary switch features a polyamide housing and silver actuator coloring for durability and corrosion resistance.
- It supports a maximum AC voltage of 250V and maximum DC voltage of 24V for versatile use.
- The switch has a mechanical life of 10,000 cycles ensuring long-lasting operation in control circuits.
- Terminal connection is via solder tabs for reliable electrical contact.
- Operating temperature ranges from -30°C to 85°C, suitable for varied industrial environments.
- RoHS compliant, guaranteeing environmentally safe manufacturing standards.
- The angle of throw is 90 degrees with options for adjustable stop and rotation continuity.
Product Description
Lorlin CK1037 is a midget wafer series rotary switch designed for industrial and commercial electrical control applications. This 3 position 4PST rotary switch supports contact currents of up to 150mA at 250V AC/DC, making it ideal for low power switching tasks.
The switch housing is made of polyamide, providing excellent insulation and mechanical robustness. The silver-colored actuator offers corrosion resistance and a professional finish suitable for panel mounting.
It features a compact design with a 27.5mm diameter body and overall height of 59.1mm. The spindle is 1.5 inches long, 0.25 inches in diameter, and includes a 30mm flat for secure mounting using grub screws. The bush dimensions and threading allow for reliable knob attachment.
The switch terminals are solder tab type, facilitating secure soldered connections. It operates reliably within a temperature range of -30°C to 85°C, suitable for various industrial and laboratory environments.
Lorlin CK1037 rotary switch offers a mechanical life rating of 10,000 cycles, providing dependable performance over time. It is RoHS compliant, ensuring adherence to environmental and safety regulations.
This product is commonly used in industrial automation, control panels, instrumentation, and electronic device applications requiring precise switching functions. Its compact size and robust construction make it a preferred choice for panel-mounted rotary switching needs in HVAC, manufacturing, and electrical equipment.
Adjustable stops and continuous rotation options allow customization for various actuation requirements. Set includes the rotary switch with solder tab terminals ready for integration into control circuits. Country of origin is United Kingdom.
Browse more industrial Rotary Switches and electrical components in EnvMart's Electronics & Electricals category for all your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum AC voltage for this switch is 250V, and the maximum DC voltage is 24V.
This rotary switch has a mechanical life rating of 10,000 cycles, ensuring long-lasting operation.
The switch has a diameter of 27.5mm, a height of 59.1mm, and features a spindle that is 1.5 inches long and 0.25 inches in diameter.
The housing of this rotary switch is made of polyamide, which provides excellent insulation and mechanical robustness.
The switch features solder tab type terminals, allowing for secure soldered connections.
The angle of throw for this model is 90 degrees, with options for adjustable stop and rotation continuity.
It operates reliably within a temperature range of -30°C to 85°C, making it suitable for various industrial environments.
This rotary switch has 3 positions, allowing for versatile control in applications.
Yes, it is RoHS compliant, ensuring adherence to environmental and safety regulations.
This model is commonly used in industrial automation, control panels, instrumentation, and electronic devices requiring precise switching functions.
The switch is designed for panel mounting, making it suitable for integration into control circuits.
The contact configuration of this rotary switch is 4PST, allowing for multiple circuits to be controlled simultaneously.
