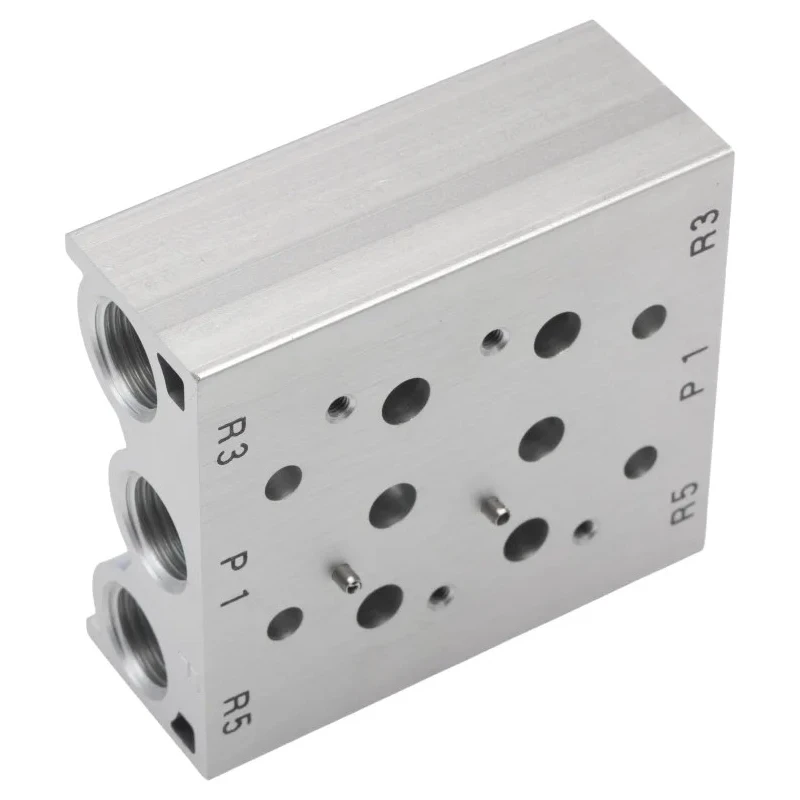

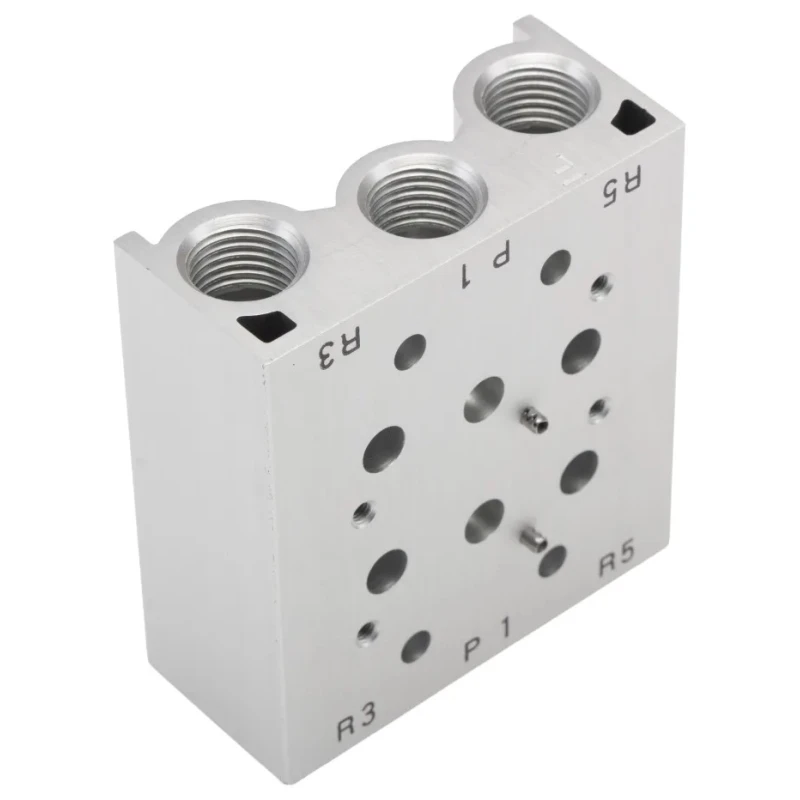

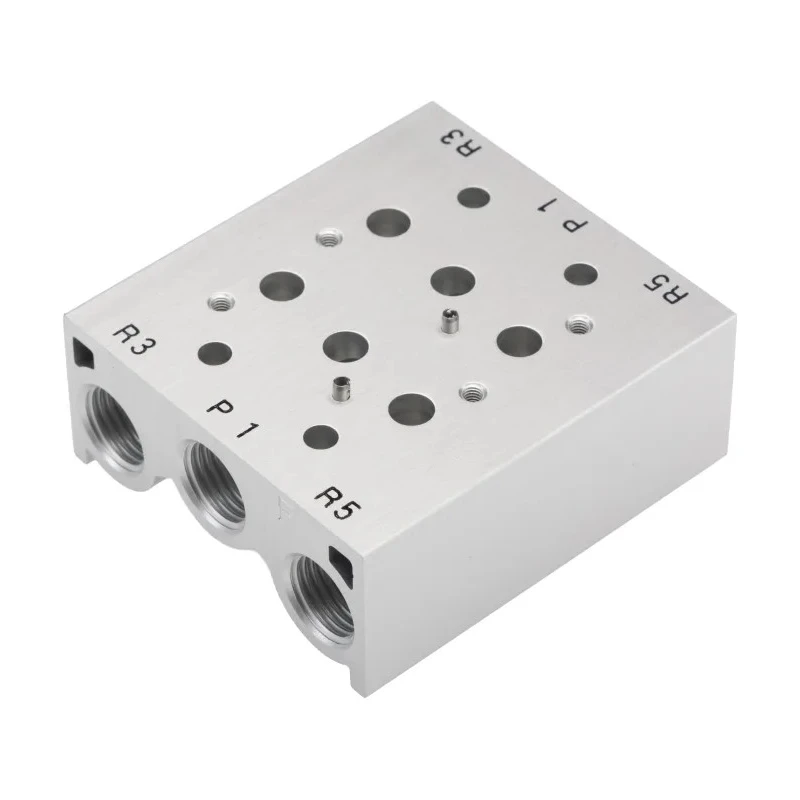

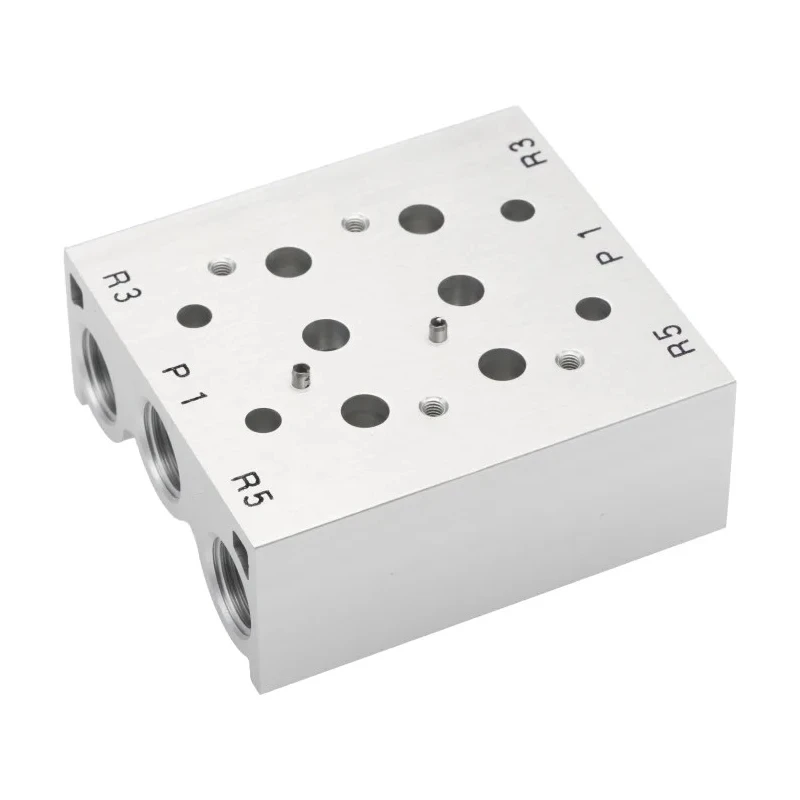

SMC Pneumatic Manifold 2 Station G Connection Die Cast Aluminium SS5YJ7

SMC SS5YJ7 pneumatic manifold provides a robust solution for pneumatic system distribution with a dual-station configuration. Featuring a die cast aluminium body, it offers durability and corrosion resistance essential for industrial environments. The manifold supports G thread connection type with 1/4 inch ports, facilitating easy and secure integration into existing pneumatic circuitry.

This model accommodates various port types including Type B, Type R, Type A, R2, R1, and Type P, enhancing its versatility for diverse pneumatic control scenarios. Manufactured to comply with international standards IEC 61238-1, CE, IEC 60947-7-1, cURus, and RoHS, it guarantees conformity to safety and performance benchmarks.

Designed specifically for use with SYJ700 and SYJ7000 series valves, which provide low power consumption and space-saving features, the SS5YJ7 manifold enables efficient system engineering and reduced operating costs. The valves incorporated in applications using this manifold series include a pilot exhaust and copper-free design, increasing operational reliability.

Number of stations: 2 for manifold system flexibility. Port size: 1/4 inch suitable for standard pneumatic fittings. Thread standard: G type for robust leak-proof connection. Material: Die cast aluminium body for enhanced mechanical strength.

Compliance: Meets IEC, CE, cURus, and RoHS standards. Compatibility: Supports multiple port types including B, R, A, and P types. Industrial use: Suitable for fluid power, manufacturing automation, and pneumatic control systems.

Low power valve operation reduces energy consumption and engineering workload.

The manifold is commonly used in pneumatic valve base assemblies for process control, automation lines, and manufacturing equipment. It aids in efficient fluid power management, ensuring system stability and minimizing downtime. The robust construction and certified standards compliance make it appropriate for demanding industrial and laboratory pneumatic applications.

SMC's SS5YJ7 series helps companies maintain consistent pneumatic control architecture, ensuring easy maintenance and system scalability. This 2 station G manifold facilitates streamlined air flow distribution with reliable mechanical connections and broad valve compatibility.
