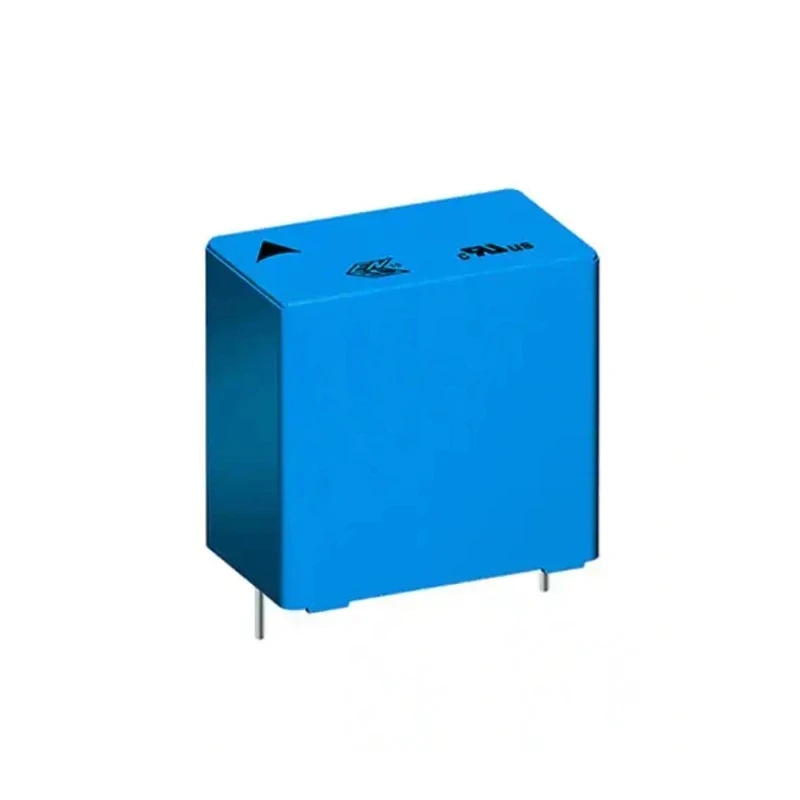

TDK Polypropylene Film Capacitor 220 nF 305V AC 305 V DC Through Hole 2 Pin B32923C3224K189

Free Delivery in India | Lowest Global Shipping Charges

TDK Polypropylene Film Capacitor 220 nF 305V AC 305 V DC Through Hole 2 Pin B32923C3224K189



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	15mm
Length	26.5mm
Model	B32923C3224K189
Width	6mm
Mount Type	Through Hole
Series	B32923C
Maximum Operating Temperature	110°C
Capacitance	220nF
Pin Count	2
Rated AC Voltage	305V ac
Rated DC Voltage	305V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Suppression Class	X2

Key Features

The capacitor has a capacitance value of 220 nanofarads.
It features a rated AC and DC voltage of 305 volts each.
Mount type is through hole with a 15 mm lead pitch for easy installation.
Rated maximum operating temperature is 110 degrees Celsius.
Manufactured with polypropylene dielectric material offering self-healing properties.
Equipped with parallel wire leads made from lead-free tinned material.
Designed to meet IEC 60384-14 and EN 60384-14 standards for safety and quality.
The physical dimensions are 26.5 mm length, 15 mm height, and 6 mm width.

Product Description

TDK B32923C3224K189 Polypropylene Film Capacitor is a precision electronic component offering a capacitance of 220 nF with AC and DC voltage ratings of 305V each. It is engineered for through-hole mounting, featuring a 15 mm lead pitch and two pins for robust and reliable connections within electronic circuits.

The capacitor uses polypropylene dielectric material, known for its excellent self-healing capabilities and reliability in EMI suppression in harsh ambient conditions. It is housed in a plastic case with epoxy sealing to enhance durability and safety.

With compliance to IEC 60384-14:2013/AMD1:2016 and EN 60384-14:2014/A1:2016 standards, this component meets stringent quality and performance requirements. It operates safely up to a maximum temperature of 110°C, ensuring stability under thermal stress.

Physical dimensions include a length of 26.5 mm, height of 15 mm, and width of 6 mm, with leads made from lead-free tinned copper wire and a diameter of 0.8 mm. Rated for suppression class X2, this capacitor is ideal for connection in series with mains power lines to mitigate electromagnetic interference.

The capacitor has a capacitance of 220 nF for precise filtering. Rated for both 305V AC and 305 V DC voltages ensuring versatility. Through hole mount type ensures sturdy and secure PCB integration. Self-healing polypropylene dielectric delivers long-term reliability.

Meets international standards IEC 60384-14 and EN 60384-14 for safety and quality. Designed for use in severe ambient conditions and EMI suppression. Compact dimensions facilitate integration in space-constrained circuits.

Lead-free tinned wire and epoxy sealing ensure environmental compliance. Ideal for industrial, consumer electronics, and power electronics applications. Ensures noise reduction and improves electromagnetic compatibility of equipment.

This TDK polypropylene Film Capacitor is suitable for use in industrial electronics, power supplies, and signal processing applications where reliable suppression of interference is critical. EnvMart offers this proven, high-quality component to support your electronic design and manufacturing needs.
