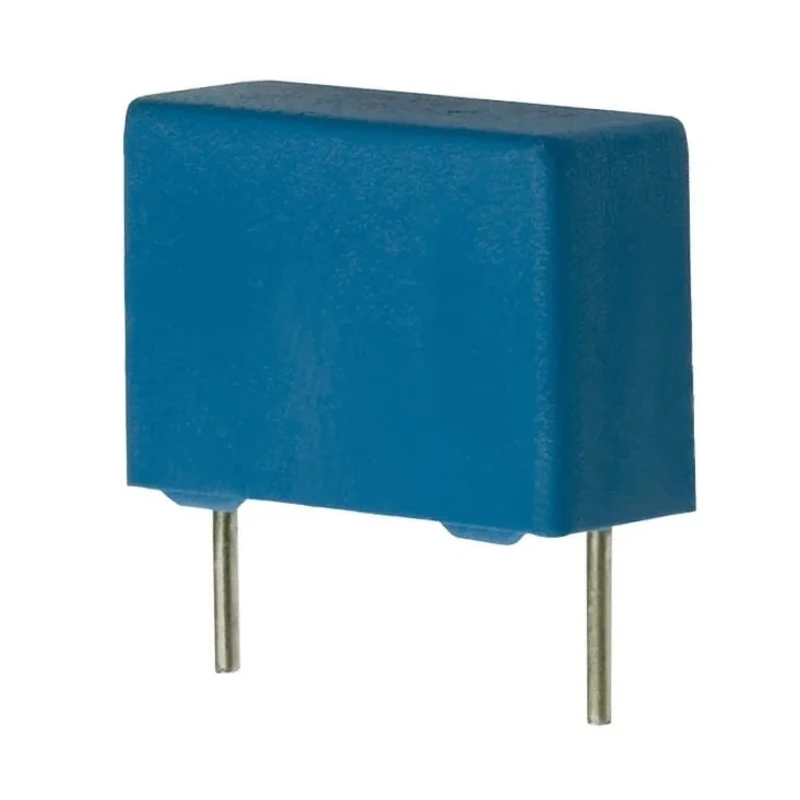

TDK Polypropylene Film Capacitor Through Hole 680nF 305V AC 305V DC B32922C3684K189



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	18.5mm
Length	18mm
Model	B32922C3684K189
Width	11mm
Mount Type	Through Hole
Series	B32922C
Maximum Operating Temperature	110°C
Capacitance	680nF
Pin Count	2
Rated AC Voltage	305V ac
Rated DC Voltage	305V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Suppression Class	X2

Key Features

Capacitance value is precisely 680nF suitable for filtering and coupling applications.
Rated for maximum AC and DC voltage of 305 volts for robust electrical insulation.
Constructed using polypropylene dielectric with plastic casing and epoxy sealing for durability.
Features 15mm lead pitch with 0.8mm lead diameter for secure through-hole fitting.
Complies with IEC 60384-14 and EN 60384-14 standards for safety and performance.
Maximum operating temperature up to 110 degrees Celsius ensures dependable operation.
Suppression class X2 designed for EMI suppression in electronic circuits.
Lead-free tinned parallel wire leads support environmental compliance.

Product Description

TDK B32922C3684K189 Polypropylene Film Capacitor is a high-quality passive electronic component designed for through-hole mounting in various industrial and commercial electronic circuits. It features a nominal capacitance of 680nF and voltage ratings of 305 volts AC and DC, ensuring robust performance and reliability in filtering, power factor correction, and EMI suppression applications.

This capacitor uses a polypropylene dielectric material combining excellent electrical insulation with low dissipation factor, making it ideal for precision electronic and power electronics contexts. The casing is made from durable plastic with epoxy sealing to protect against environmental stress and mechanical damage.

The component has a lead pitch of 15mm and lead diameter of 0.8mm with lead-free tinned wires, aligning with modern environmental standards. It operates safely up to 110°C, suitable for applications in harsh industrial environments.

Compliance with international standards IEC 60384-14:2013/AMD1:2016 and EN 60384-14:2014/A1:2016 guarantees quality and conformity necessary for electronic manufacturing and certification.

Physical dimensions of 18mm length, 11mm width, and 18.5mm height ensure it fits compact PCB layouts. Its EMI suppression class X2 rating makes it suitable for noise reduction in power supplies, HVAC systems, medical devices, and manufacturing electronics equipment.

Capacitance of 680nF facilitates effective filtering and signal integrity. Designed for robust applications with 305V AC/DC voltage ratings. Polypropylene dielectric offers excellent stability and self-healing properties.

Through-hole mount type with 15mm lead pitch for easy assembly. High temperature tolerance up to 110°C for industrial use. Meets stringent IEC and EN capacitor standards. Compact and lightweight with plastic casing and epoxy sealing.

Lead-free tinned parallel wire leads for environmental compliance. Ideal for use in electronics manufacturing, power supplies, HVAC, and noise suppression. Reliable and safe component engineered for professional electronic designs.

This polypropylene Film Capacitor is a critical component for engineers and manufacturers requiring high reliability and quality in industrial, laboratory, HVAC control, and electronic power conversion systems. Explore more electronic components from TDK and related accessories on EnvMart.
