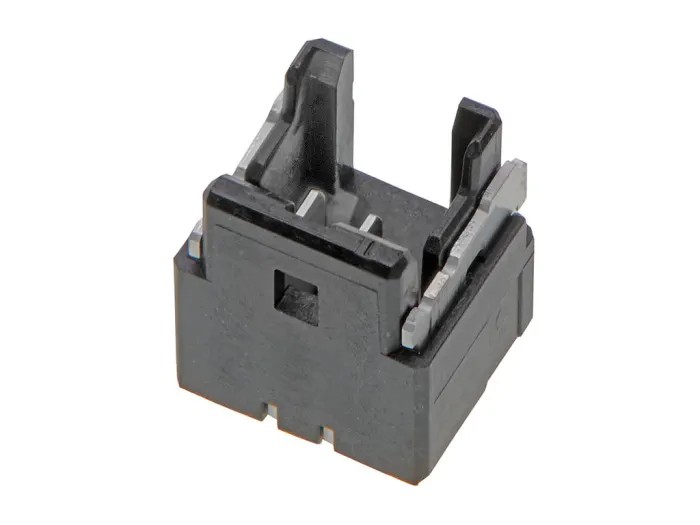

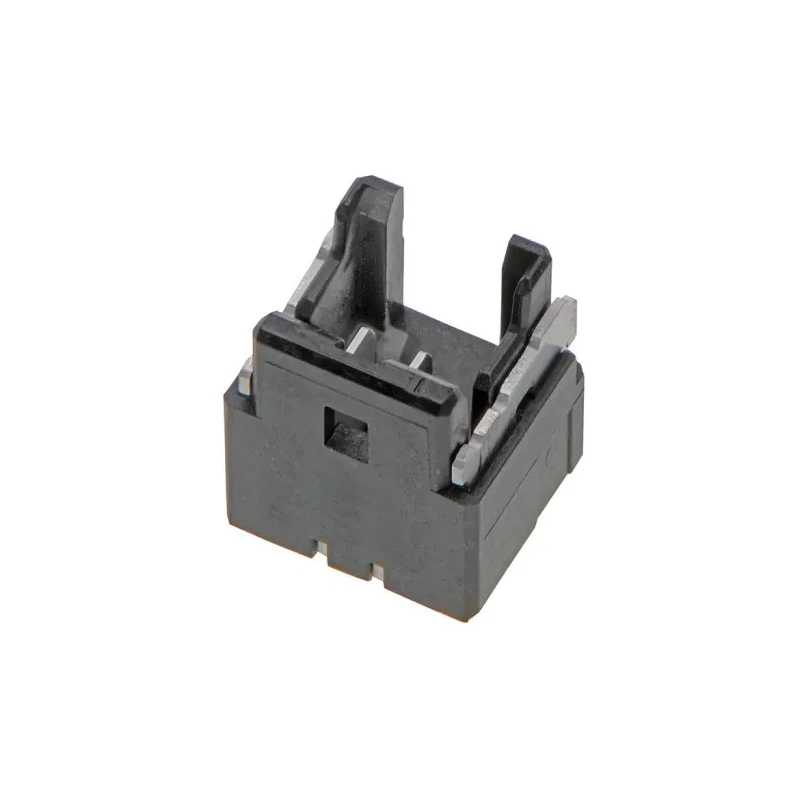

Molex OneBlade Series Vertical Surface PCB Header, 2 Contact 1 mm Pitch 2 Row Shrouded 214094-0020

Molex 214094-0020 OneBlade Series Vertical Surface PCB Header offers a reliable wire-to-board connector system designed with 2 contacts and a fine 1 mm pitch in a 2-row shrouded configuration. This vertical header is engineered for safe and secure mount on printed circuit boards, ideal for electronics manufacturing and industrial applications requiring robust and compact connectors.

The housing is made of polyamide material providing excellent mechanical strength and heat resistance, functioning effectively between -40°C and 105°C operating temperatures. The brass contacts plated with matt tin ensure excellent electrical conductivity and corrosion resistance, supporting a rated current of 2.5 A at 100 Vrms voltage.

This header's surface mount technology configuration and male contact gender facilitate streamlined PCB assembly with solder termination. The dual-row design enhances signal density while the shrouded housing provides improved protection against accidental damage and short circuits.

Certified under CHINA RoHS, EU ELV, and EU RoHS standards, this connector aligns with global environmental compliance norms, making it suitable for international applications. It is manufactured in Korea, guaranteeing high-quality production processes and material standards.

Durability ratings support up to 30 mating cycles, suitable for applications where connectors must be repeatedly connected and disconnected. The product is widely used in electronic component assemblies within industrial, manufacturing, consumer electronics, and related sectors.

The header supports a current rating of 2.5 A, suitable for moderate electrical loads. Constructed with polyamide housing material for robust thermal and mechanical performance. Features brass contacts plated with matt tin ensuring reliable connectivity and corrosion resistance.

Operational temperature range from -40°C to 105°C caters to demanding industrial environments. The male contact design with 2 mm mating pin length facilitates precise and durable connections. Surface mount type ensures ease of assembly on PCBs in automated manufacturing processes.

Shrouded dual-row arrangement improves contact protection and insulation. Compliant with CHINA RoHS, EU ELV, and EU RoHS standards, ensuring environmental safety and regulatory compliance. Designed and manufactured in the Republic of Korea maintaining high quality standards.

Durability rated for 30 mating cycles providing reliable repeated connection performance. For professionals seeking high-quality PCB connectors, explore our extensive range of electronics components and PCB Headers at EnvMart.
