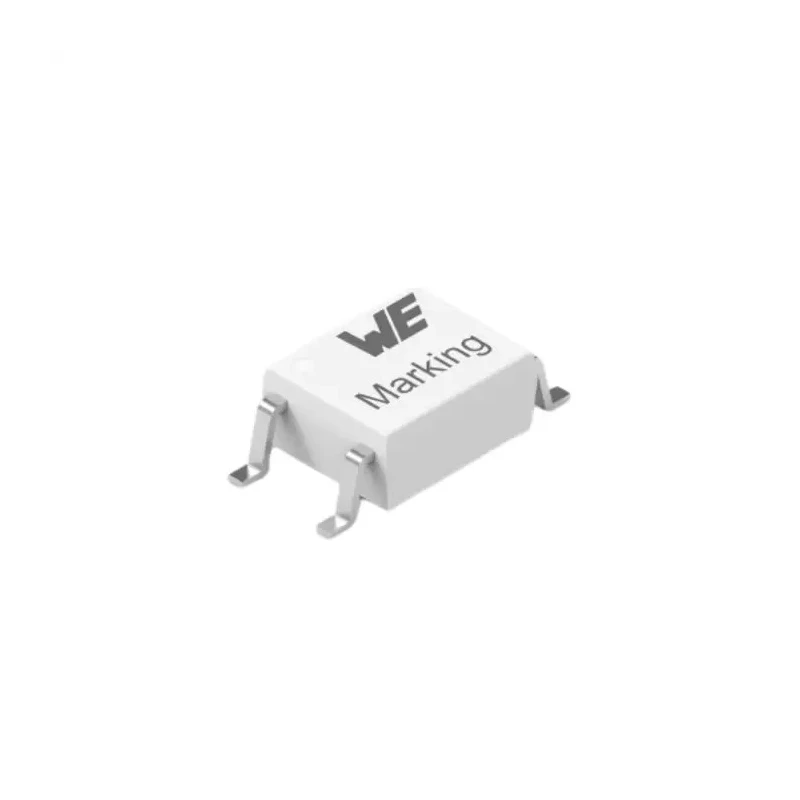

Wurth Elektronik AC Input Phototransistor, Surface Mount, 4-Pin SOP Package 140354245100
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | WL-OCPT |
| Maximum Operating Temperature | 110°C |
| Package Type | SOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | AC |
| Typical Rise Time | 5μs |
| Maximum Current Transfer Ratio | 150% |
| Typical Fall Time | 6μs |
| Minimum Current Transfer Ratio | 50% |
Key Features
- The phototransistor provides efficient AC input detection.
- Features a maximum forward voltage of 1.4V for reliable operation.
- Typical rise and fall times are 5µs and 6µs, respectively, ensuring fast switching.
- Supports a maximum input current of 60mA with AC current type input.
- Isolation voltage rating is 3750Vrms for high safety standards.
- Operating temperature range spans from -55°C to 110°C.
- Complies with UL standards and is RoHS and halogen free.
- Housed in a durable white plastic SOP package for surface mounting.
Product Description
Wurth Elektronik 140354245100 is a high-performance AC input phototransistor designed for advanced optoelectronic applications. This phototransistor comes in a compact 4-pin Small Outline Package (SOP) suitable for surface mounting.
It operates with an input current type AC and exhibits a typical rise time of 5 microseconds and fall time of 6 microseconds, making it suitable for fast switching environments.
The device supports a maximum forward voltage of 1.4 volts and a maximum input current of 60 milliamperes, while providing high isolation voltage of 3750 Vrms, ensuring robustness in demanding industrial and electronic environments.
Operating temperatures range from an extremely wide spectrum of -55°C to +110°C, suitable for harsh conditions including industrial and automotive electronics. Compliant with UL standards and built with RoHS and halogen-free materials, this phototransistor ensures safety and environmental compliance.
The white plastic housing offers durability and reliable protection for the semiconductor elements within this SOP package form factor. The Phototransistor supports efficient AC input detection in electronic circuits. It offers fast response times suitable for signal processing applications.
Meets strict isolation and operating temperature standards for reliability. Complies with international safety and environmental directives. Ideal for use in electronic components, optocouplers, and photodetectors in industrial electronics, telecommunications, and power control systems.
It is a new condition component suitable for replacement or integration in new designs. Explore more related optoelectronic components and optocouplers at EnvMart for your industrial and commercial electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 60 milliamperes (mA).
It operates within a temperature range of -55°C to +110°C.
The typical rise time is 5 microseconds (µs) and the fall time is 6 microseconds (µs).
The maximum forward voltage is 1.4 volts (V).
It supports AC input current type.
The isolation voltage rating is 3750 Vrms.
This model is packaged in Tape & Reel format.
It has 4 pins.
It complies with UL standards and is RoHS and halogen-free.
The maximum current transfer ratio is 150%.
The mount type is surface mount.
It belongs to the WL-OCPT series.
