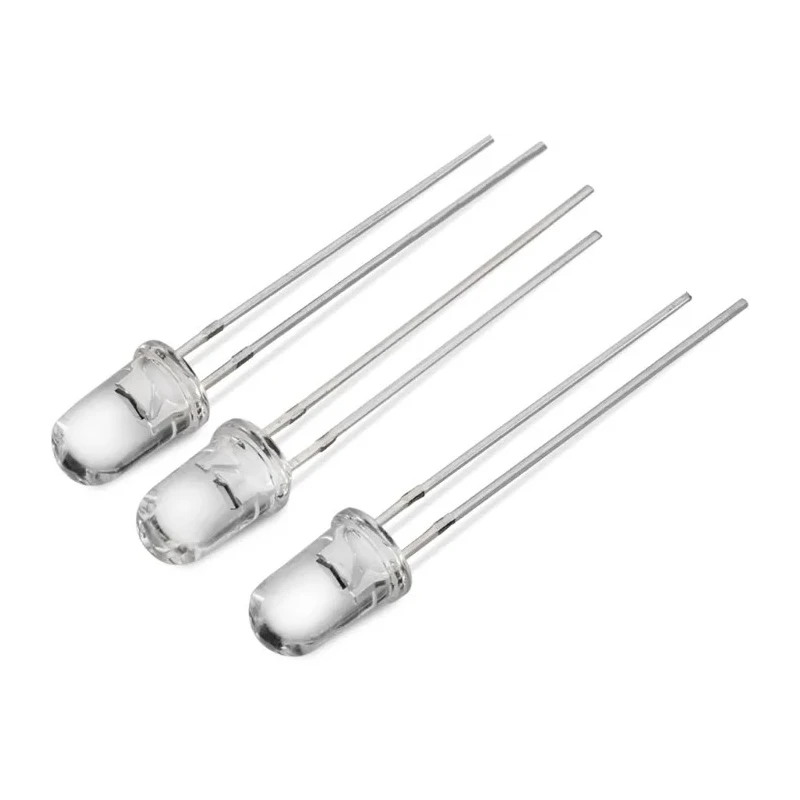

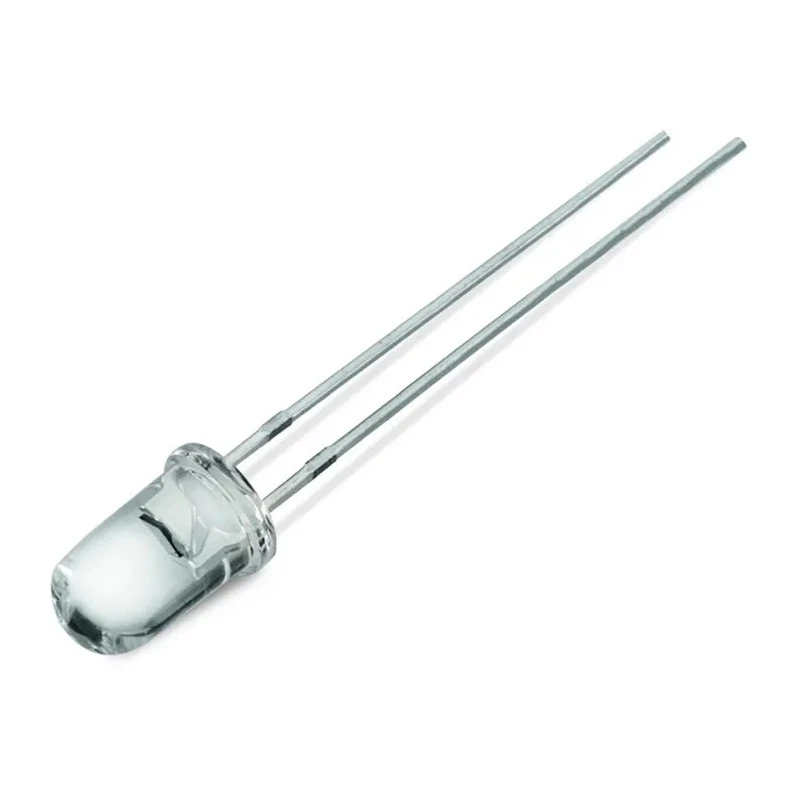

Wurth Elektronik Infrared Photodiode, 35 ° Half Sensitivity Angle, Through Hole 5mm Package 1540051EA3590
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.8mm |
| Brand | Wurth Elektronik |
| Height | 8.7mm |
| Length | 5mm |
| Model | 1540051EA3590 |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | WL-TDRW |
| Maximum Operating Temperature | 85°C |
| Package Type | 5 |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Dark Current | 30nA |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 0.6ns |
| Wavelength of Peak Sensitivity | 940nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 30V |
| Minimum Wavelength Detected | 400nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 35 ° |
Key Features
- The photodiode features a standard 5 mm through-hole package.
- Peak sensitivity wavelength of 940 nanometers for infrared detection.
- Fast response times with typical rise and fall times of 0.6 nanoseconds.
- Operates within a temperature range of -40 °C to 85 °C.
- Low dark current of 30 nanoamperes ensuring high sensitivity.
- Suitable for applications including touch screens, remote controllers, and security systems.
- Compliant with RoHS standards ensuring environmental safety.
- Available in tape and reel packaging for automated assembly.
Product Description
Wurth Elektronik 1540051EA3590 is a highly reliable infrared photodiode designed for precision detection of infrared light at a peak wavelength of 940 nm. Packaged in a 5 mm through-hole format, it offers a robust solution for various optoelectronic applications requiring fast switching times and low power consumption.
This photodiode exhibits fast typical rise and fall times of 0.6 nanoseconds, making it suitable for rapid signal detection and processing. It operates effectively across a broad temperature range from -40 °C to 85 °C, ensuring dependable performance in diverse industrial and commercial environments.
The device’s low dark current of 30 nanoamperes contributes to its high sensitivity and accuracy in infrared light detection. The 35 ° angle of half sensitivity ensures focused reception of infrared signals, enabling precise detection in applications such as touch screens, cleaning robots, remote controllers, optoelectronic switches, video cameras, and security systems.
Manufactured under stringent RoHS compliance, the photodiode supports environmentally friendly designs. Provided in tape and reel packaging, it facilitates efficient handling and automated assembly in manufacturing processes.
The photodiode is designed for visible and infrared light detection applications. Its compact 5 mm through-hole package allows easy integration into electronic circuits. Fast switching times of 0.6 ns enable use in high-speed optoelectronic devices.
Low power consumption contributes to energy-efficient system designs. The operating temperature range makes it suitable for a wide variety of industrial and commercial installations. High reliability ensures consistent performance over extended periods.
Complies with RoHS standards for environmental safety. Ideal for applications in consumer electronics, industrial automation, and security. Explore the comprehensive Wurth Elektronik Photodiode range on EnvMart for advanced optoelectronic components to meet your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The photodiode has a peak sensitivity wavelength of 940 nanometers, specifically designed for infrared detection.
It operates effectively within a temperature range of -40 °C to 85 °C, making it suitable for various environments.
This photodiode features typical rise and fall times of 0.6 nanoseconds, allowing for rapid signal detection and processing.
The photodiode has a low dark current of 30 nanoamperes, which contributes to its high sensitivity in detecting infrared light.
It comes in a standard 5 mm through-hole package with dimensions of 5 mm in length, 5 mm in width, and 8.7 mm in height.
The angle of half sensitivity for this photodiode is 35 degrees, allowing for focused reception of infrared signals.
It is compliant with RoHS standards, ensuring it meets environmental safety requirements.
The photodiode is available in tape and reel packaging, which facilitates efficient handling and automated assembly processes.
This model is suitable for applications including touch screens, remote controllers, cleaning robots, and security systems.
The breakdown voltage for this photodiode is 30 volts, which defines the maximum reverse voltage it can withstand.
It is designed to detect infrared light, with a detection range from 400 nm to 1100 nm.
This photodiode features 2 pins, which are required for its connection in electronic circuits.
