Vishay 1-Element Bi-Directional TVS Diode 1.5 kW, 2-Pin DO-214 SMCJ58CA-E3/57T

Vishay SMCJ58CA-E3/57T is a 1-Element Bi-Directional Transient Voltage Suppressor (TVS) Diode designed for protecting sensitive electronic components from transient voltage spikes. With a peak pulse power dissipation rating of 1.5 kW, this diode safely clamps voltage surges to prevent damage to circuits.

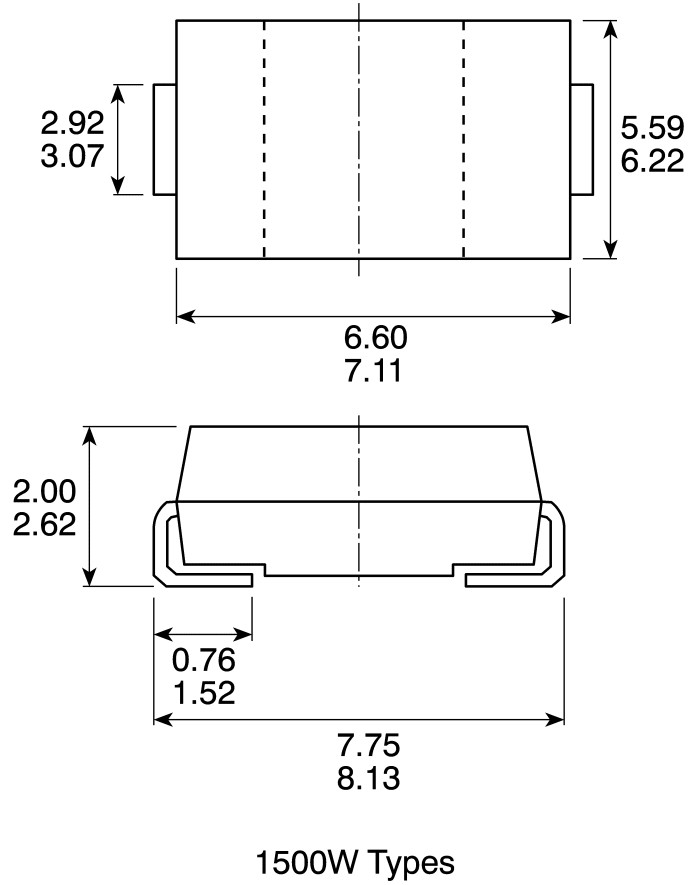

Featuring a 2-pin DO-214 surface mount package, the device is compact and easy to integrate into printed circuit board designs. Its single diode configuration and bi-directional design make it suitable for AC as well as DC voltage transient suppression applications.

The diode provides a minimum breakdown voltage of 64.4 V and a maximum reverse stand-off voltage of 58 V, offering precise voltage protection across various operating conditions. It exhibits a low maximum reverse leakage current of 1 μA, contributing to minimal power losses under normal operating voltage.

The device operates reliably across a broad temperature range from -55°C to 150°C, making it ideal for industrial, automotive, telecommunications, and power management systems. It meets the automotive industry standard AEC-Q101, ensuring high quality and durability.

Single diode configuration ensures reliable protection against voltage spikes. Bi-directional direction type suitable for AC and DC applications. Compact DO-214 surface mount package for easy assembly. Peak pulse power dissipation of 1.5 kW handles high-energy transients.

Low reverse leakage current contributes to power efficiency. Wide operating temperature range for harsh environmental conditions. Compliance with automotive standard AEC-Q101 for reliability. This TVS Diode is commonly used in semiconductor, electronics, and power protection applications, ensuring enhanced longevity and stability of electronic circuits.
