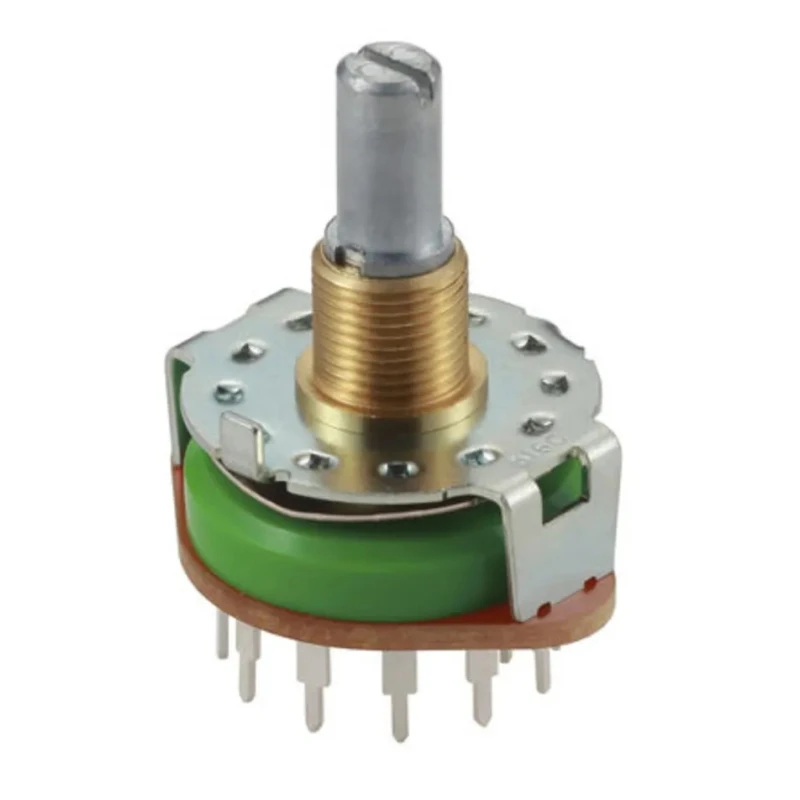

Alps Alpine Rotary Switch 4 Position 3P4T 250mA Terminal PCB Mount SRRM342800

Alps Alpine SRRM342800 rotary switch is a 4-position, 3P4T contact configuration switch designed for mounting on printed circuit boards (PCB) via terminal connections. Rated for a contact current of 250mA, this switch supports a maximum AC voltage of 500V and maximum DC voltage of 30V, making it suitable for diverse electrical and automation applications.

The switch operation employs a 12-position general-purpose vertical type mechanism with an actuator color of grey and an angle of throw of 30 degrees. It offers a compact form factor with dimensions of 31.5mm in height, 26.8mm width, and 24.9mm depth, and a diameter of 31mm. The mechanical life expectancy reaches up to 10,000 cycles, providing dependable switching performance.

The terminal type mount facilitates secure PCB installation in industrial automation, electrical equipment, and control systems.

Typical applications include use in electrical controls, automated machinery, instrumentation panels, and other precision switching contexts that require robust and reliable rotary switch components. This product supports engineers and designers in creating reliable switch control solutions within electrical and electronic systems.

This rotary switch features a 12-position general-purpose vertical operation. It has a contact configuration of 3P4T allowing versatile electrical routing. Maximum AC voltage rating is 500 V AC for industrial applications.

The switch uses a grey actuator with a 30-degree angle of throw for precise control. Mechanical life expectancy is 10,000 cycles ensuring long-term reliability. Compact dimensions include a height of 31.5mm, width 26.8mm, depth 24.9mm.

The device is compliant with RoHS standards and manufactured in Japan. Discover more high-quality Rotary Switches and components in the Electronics & Electricals category on EnvMart.
