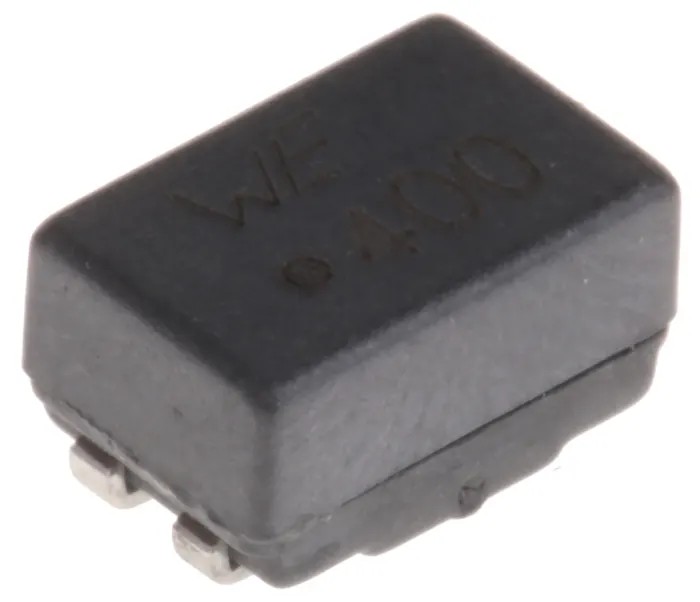

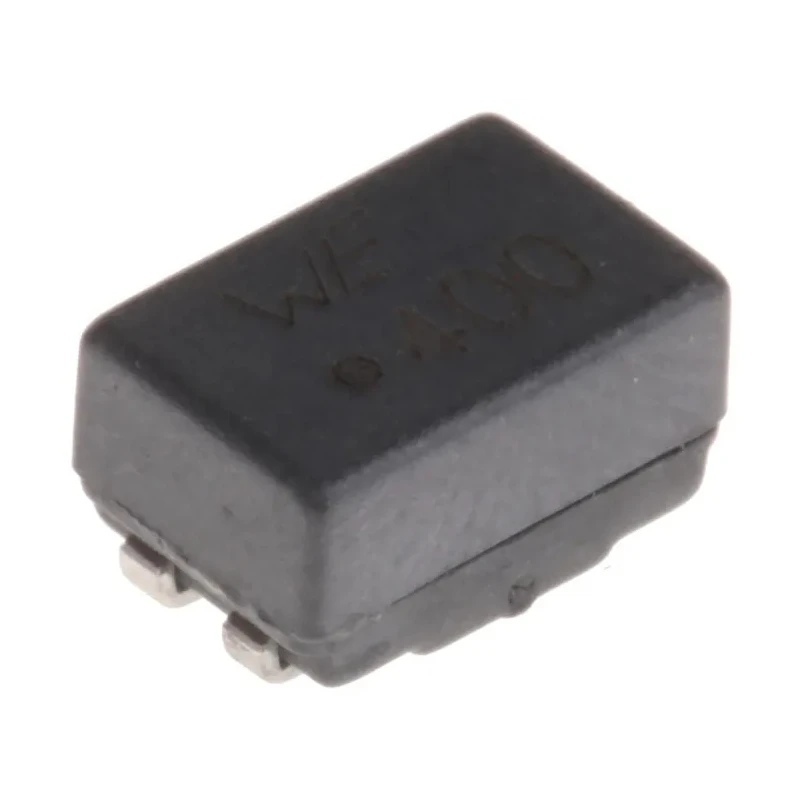

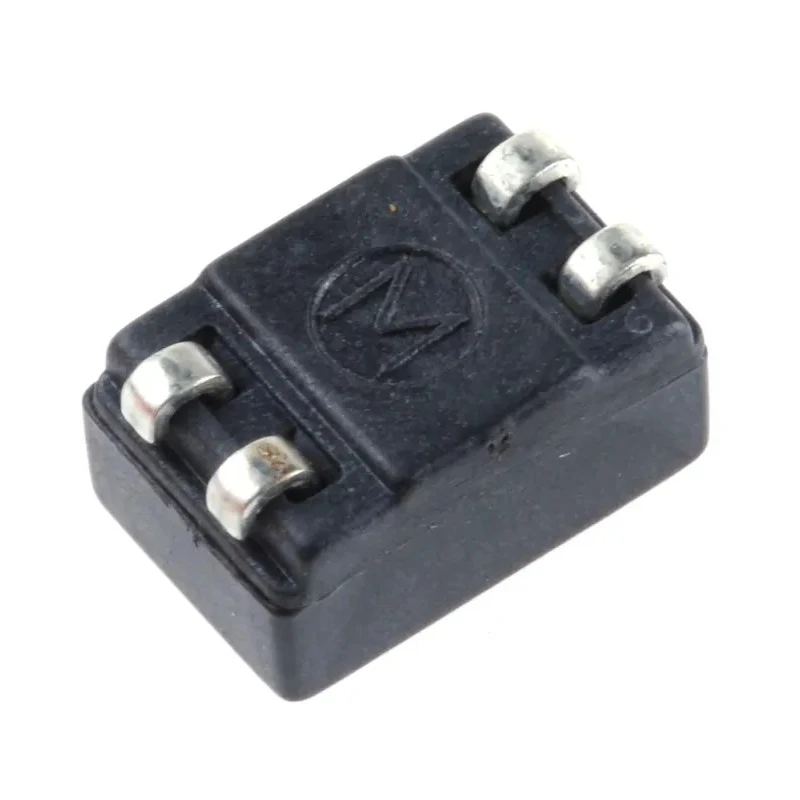

Wurth Elektronik Surface Mount Common Mode Line Filter 40μH Dual ±30% 900mA IDC WE-SL2 744225
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 5mm |
| Length | 9.2mm |
| Model | 744225 |
| Depth | 6mm |
| Packaging | Tape & Reel |
| Series | WE-SL2 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB, ISDN |
| Core Material | Ferrite |
| Inductance | 40μH |
| Standards/Approvals | UL 94 V0 |
| Maximum DC Current | 900mA |
| Pin Count | 4 |
| Maximum DC Resistance | 250mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |

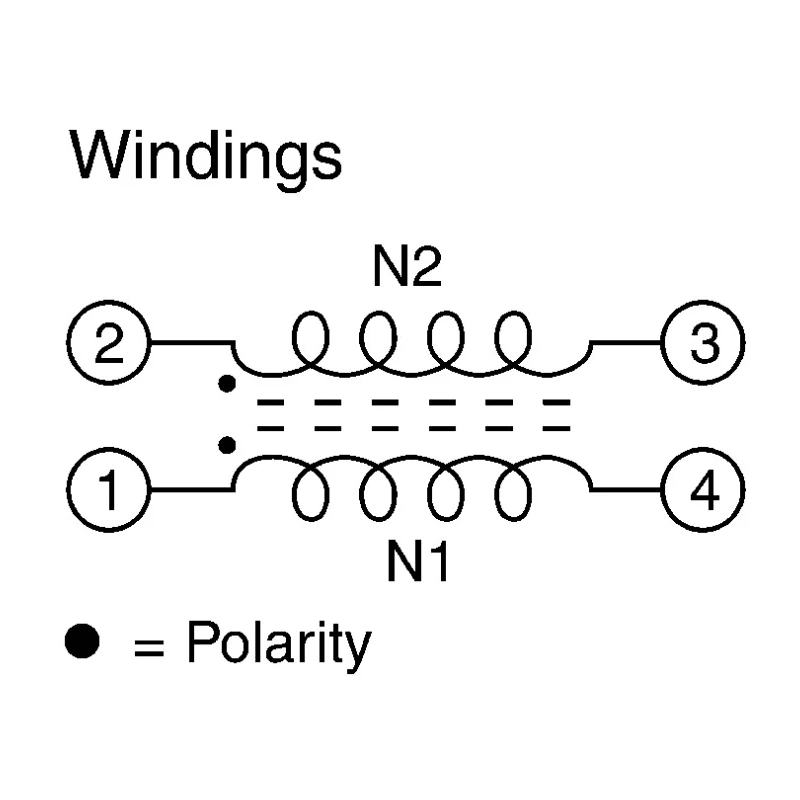

| Inductor Construction | Dual |
| Automotive Standard | AEC-Q200 |
Key Features
- Designed with a ferrite core for enhanced magnetic performance.
- Offers a maximum DC resistance of 250mΩ ensuring efficient current flow.
- Features AEC-Q200 automotive standard compliance for high reliability.
- Suitable for signal and data line filtering in bus systems like CAN and USB.

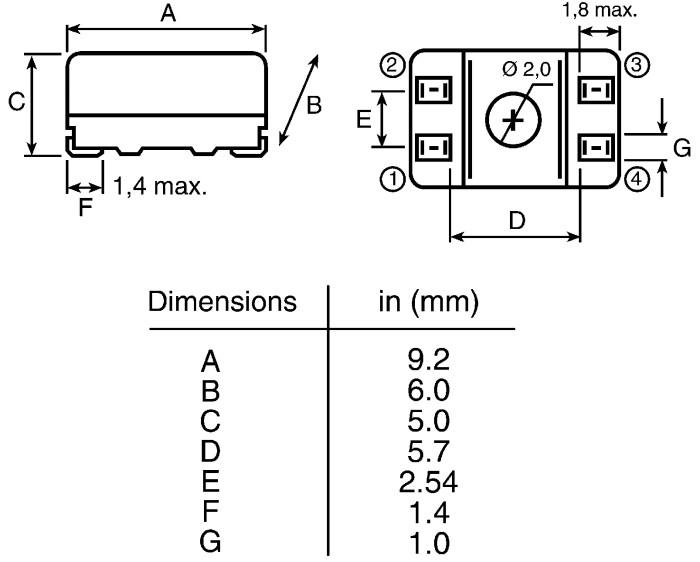

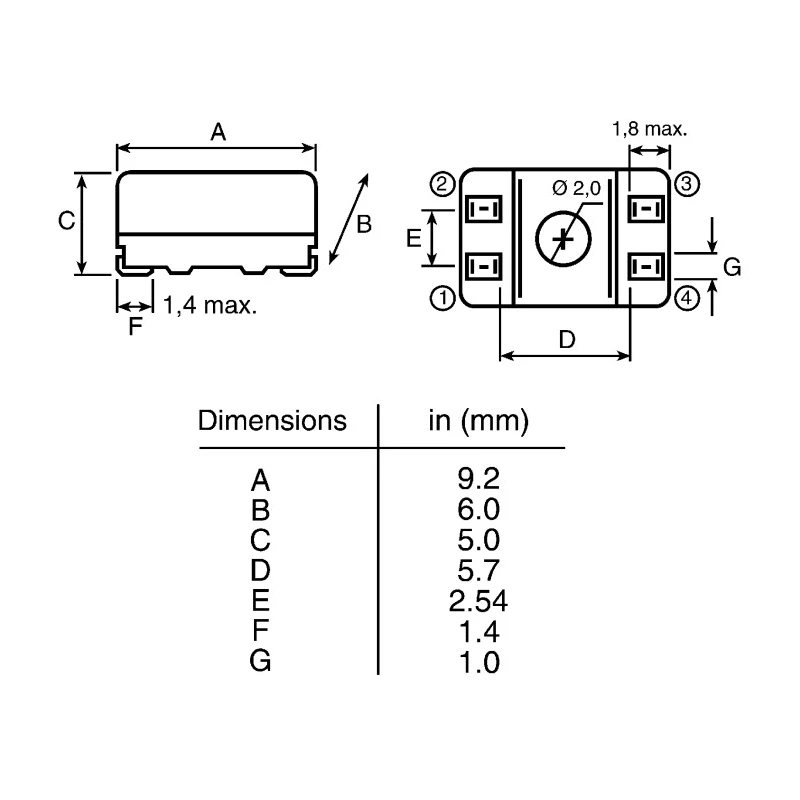

- Compact 4-pin surface mount housing measuring 9.2 x 6 x 5 mm.
- Operates reliably within a temperature range of -40°C to 125°C.
- UL 94 V0 moulded construction ensures flame retardancy.
- Ideal for applications in power supplies and measuring signal lines.
Product Description
Wurth Elektronik 744225 WE-SL2 Surface Mount Common Mode Line Filter is a dual inductor with 40μH inductance and ±30% tolerance rating designed to support currents up to 900mA DC. The ferrite core construction provides effective noise suppression for EMI/RFI in electronic circuits.
This surface mount device features a compact 4-pin package with dimensions of 9.2 mm length, 6 mm depth, and 5 mm height, making it suitable for high-density PCB mounting applications. Its UL 94 V0 flame-retardant moulded housing enhances safety and durability in harsh environments.
Compliant with the AEC-Q200 automotive standard, this line filter is robust enough for demanding automotive and industrial electronics environments. It offers a maximum DC resistance of 250mΩ, ensuring minimal power loss during operation.
The WE-SL2 choke is specifically designed for use in bus systems including CAN, USB, and ISDN interfaces, providing excellent common mode noise attenuation up to 9 kΩ impedance at designated frequencies.
Applications include filtering power supplies, signal conditioning lines, and measuring equipment where suppression of electromagnetic interference is critical. Its surface mount termination style enables efficient automated assembly processes, supplied on tape and reel packaging format.
Designed with a ferrite core for enhanced magnetic performance. Offers a maximum DC resistance of 250mΩ ensuring efficient current flow. Features AEC-Q200 automotive standard compliance for high reliability. Suitable for signal and data line filtering in bus systems like CAN and USB.
Compact 4-pin surface mount housing measuring 9.2 x 6 x 5 mm. Operates reliably within a temperature range of -40°C to 125°C. UL 94 V0 moulded construction ensures flame retardancy. Ideal for applications in power supplies and measuring signal lines.
Explore the extensive range of electronic components for high-performance surface mount solutions in industrial and automotive electronics at EnvMart.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 40μH with a tolerance rating of ±30%.
It can support a maximum DC current of 900mA.
The dimensions of this surface mount device are 9.2 mm in length, 6 mm in depth, and 5 mm in height.
The maximum DC resistance is 250mΩ, which ensures efficient current flow.
It operates reliably within a temperature range of -40°C to 125°C.
It complies with the AEC-Q200 automotive standard, ensuring high reliability in automotive applications.
The inductor is constructed with a ferrite core, enhancing its magnetic performance.
This model features a surface mount termination style, which is suitable for automated assembly processes.
It is suitable for signal and data line filtering in bus systems such as CAN and USB, as well as for power supplies and measuring equipment.
It is supplied in tape and reel packaging format, facilitating easy handling and assembly.
This model is compatible with USB and ISDN interfaces, making it versatile for various electronic applications.
The moulded housing meets the UL 94 V0 standard for flame retardancy, enhancing safety in harsh environments.
