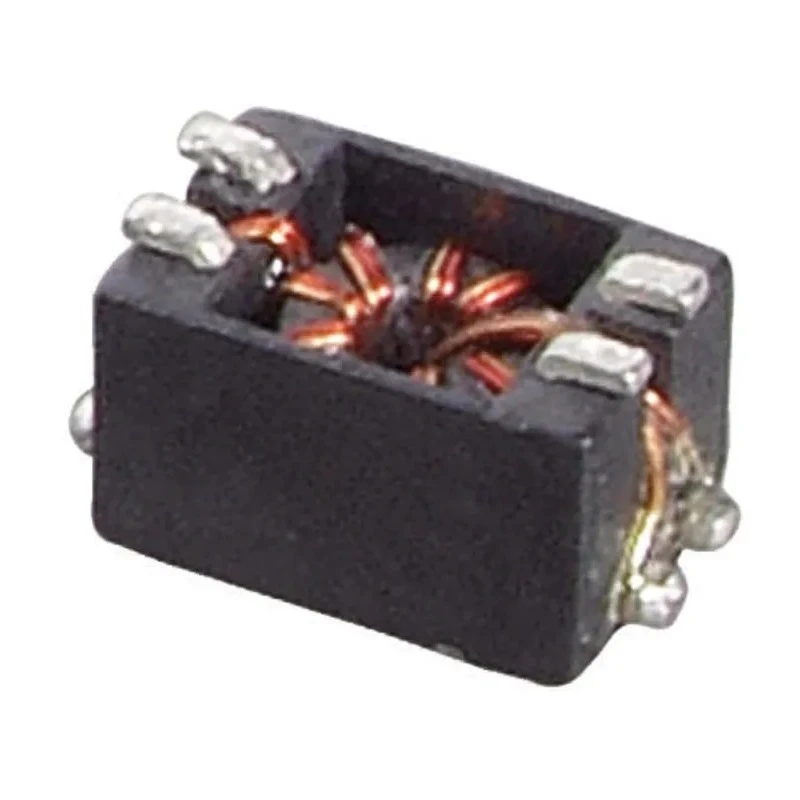

Wurth Elektronik Surface Mount Common Mode Line Filter 11 μH Ferrite Core 300 mA 744242110
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 6mm |
| Brand | Wurth Elektronik |
| Operating Temperature | - 40°C to +125°C |
| Height | 3.3mm |
| Length | 6mm |
| Depth | 3.3mm |
| Packaging | Tape & Reel |
| Series | WE-SLM |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 11μH |
| Standards/Approvals | UL-94-V0 Class F |
| Maximum DC Current | 300mA |
| Maximum DC Resistance | 180mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Offers high current capability up to 300 mA.
- Features an inductance tolerance of -30 to 50 % for reliable performance.
- Designed to operate within a temperature range of -40°C to 125°C.
- Compact dimensions include 6mm diameter and length with 3.3mm height and depth.
- Constructed with a wirewound inductor and ferrite core for effective noise filtering.
- Complies with automotive standard AEC-Q200 for assurance of quality.
- Suitable for surface mount PCB assembly with tape and reel packaging.
- Has a maximum DC resistance of 180 mΩ ensuring minimal power loss.
Product Description
Wurth Elektronik 744242110 is a Surface Mount Common Mode Line Filter featuring an 11 μH inductance with a high-performance ferrite core. It is designed for effective suppression of common mode noise in various electronic circuits.
This line filter accommodates a maximum DC current of 300 mA and operates reliably between -40°C to 125°C. It exhibits an inductance tolerance ranging from -30 to 50 %, enabling it to function under diverse environmental conditions.
The device is compact with a 6mm diameter and length, and 3.3mm height and depth, making it suitable for space-constrained PCB designs. Constructed with a wirewound inductor coil and ferrite core material, it provides excellent noise filtering characteristics and durability.
This product complies with automotive standard AEC-Q200 and has a low maximum DC resistance of 180 mΩ ensuring efficient power transmission with minimal loss. Its maximum self-resonant frequency is 100 kHz, making it apt for high-frequency applications.
Typically used in USB, CAN, FireWire signal lines, sensor lines, power supply systems, and data lines, this filter ensures improved signal integrity and system performance in industrial, automotive, communication, and consumer electronics settings.
Offers high current capability up to 300 mA. Features an inductance tolerance of -30 to 50 % for reliable performance. Designed to operate within a temperature range of -40°C to 125°C. Compact dimensions: 6mm diameter and length, 3.3mm height and depth.
Constructed with a wirewound inductor with a ferrite core for effective noise filtering. Complies with automotive standard AEC-Q200 for quality assurance. Suitable for surface mount PCB assembly with tape and reel packaging.
Has a maximum DC resistance of 180 mΩ ensuring low power loss. Rated for a maximum self-resonant frequency of 100 kHz. Ideal for use in USB, CAN, FireWire signal lines, sensor lines, power supply, and data lines. Explore the Electronics Components category at EnvMart for more premium Surface Mount Inductors and filters to meet your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 11 μH.
It can accommodate a maximum DC current of 300 mA.
The operating temperature range is from -40°C to 125°C.
It has a diameter and length of 6 mm, with a height and depth of 3.3 mm.
The maximum DC resistance is 180 mΩ, ensuring minimal power loss.
The maximum self-resonant frequency is 100 kHz.
It is constructed with a wirewound inductor and ferrite core for effective noise filtering.
It complies with the automotive standard AEC-Q200 and UL-94-V0 Class F.
It is suitable for surface mount PCB assembly and is packaged in tape and reel format.
The inductance tolerance is between -30% to +50%.
It is typically used in USB, CAN, FireWire signal lines, sensor lines, power supply systems, and data lines.
The core material used in this model is ferrite.
