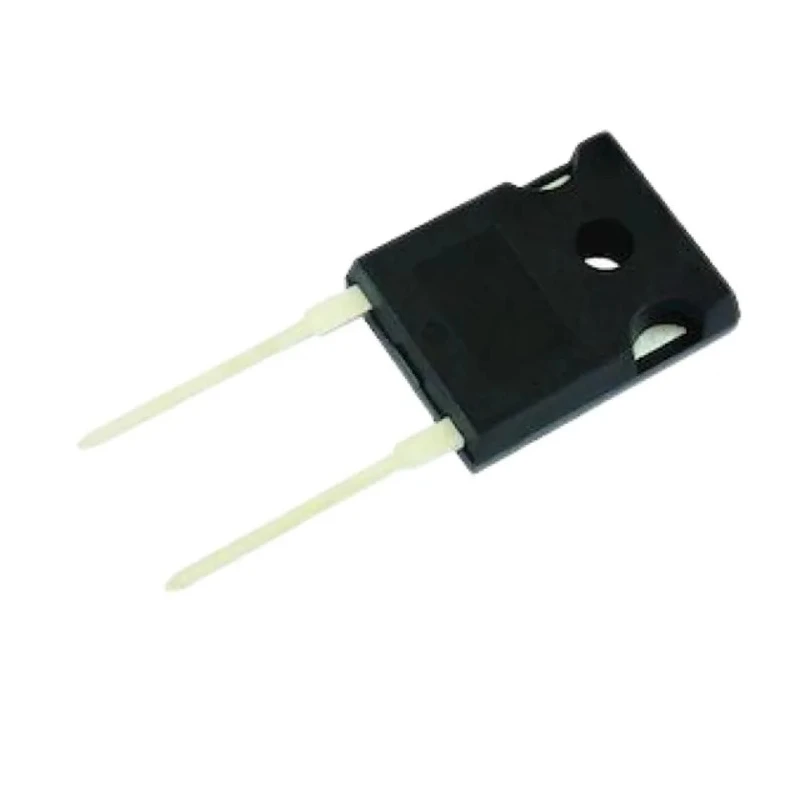

Vishay 600 V 60 A General Purpose Rectifier & Schottky Diode 3-Pin TO-247AD 2L VS-E5PH6006LHN3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 41.02mm |
| Length | 15.87mm |
| Model | VS-E5PH6006LHN3 |
| Mount Type | Through Hole |
| Series | VSX |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AD 2L |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Maximum Forward Voltage Vf | 1.2V |
Key Features
- Supports a maximum continuous forward current of 60 amperes.
- Offers a peak reverse repetitive voltage rating of 600 volts.
- Features a maximum forward voltage of 1.2 volts ensuring efficient rectification.
- Operates within a temperature range of -55°C to 175°C for robust performance.
- Designed with a peak non-repetitive forward surge current of 500 amperes.
- Built with polyimide passivation for enhanced durability.
- Complies with automotive standard AEC-Q101 and meets JESD 201 class 1A whisker test.
- Optimized for high-speed operation with hyperfast and optimized Qrr technologies.
Product Description
Vishay VS-E5PH6006LHN3 is a high-performance general purpose rectifier and Schottky diode designed for efficient power conversion and high current applications. Featuring a 600 V peak reverse repetitive voltage and maximum continuous forward current of 60 A, it is housed in a TO-247AD 2L package with 3 pins for through-hole mounting.
This diode is engineered for high efficiency with best-in-class low forward voltage drop and switching losses, making it ideal for soft switched, resonant, and medium frequency hard switching converters. It offers a peak forward surge current of 500 A, ensuring reliability under transient conditions.
Operating reliably from -55°C to 175°C, the device incorporates polyimide passivation to protect against environmental stresses. It is AEC-Q101 qualified and meets stringent automotive reliability testing standards, making it suitable for automotive and industrial applications.
The diode is particularly optimized for high-speed LLC output rectification stages in electric vehicle (EV) and hybrid electric vehicle (HEV) on-board battery chargers, improving overall system efficiency.
Supports a maximum continuous forward current of 60 amperes. Offers a peak reverse repetitive voltage rating of 600 volts. Features a maximum forward voltage of 1.2 volts ensuring efficient rectification. Operates within a temperature range of -55°C to 175°C for robust performance.
Designed with a peak non-repetitive forward surge current of 500 amperes. Built with polyimide passivation for enhanced durability. Complies with automotive standard AEC-Q101 and meets JESD 201 class 1A whisker test. Optimized for high-speed operation with hyperfast and optimized Qrr technologies.
This product is suitable for use in industrial electronics, automotive systems, power supply converters, battery charging systems, and other demanding electronic applications requiring efficient rectification and fast switching.
Explore Vishay products and similar Schottky diodes & rectifiers in the Electronics & Electricals category on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 60 amperes.
It has a peak reverse repetitive voltage rating of 600 volts.
The maximum forward voltage drop is 1.2 volts, ensuring efficient rectification.
This unit operates within a temperature range of -55°C to 175°C.
The diode is designed with a peak non-repetitive forward surge current of 500 amperes.
It is housed in a TO-247AD 2L package with 3 pins for through-hole mounting.
This model complies with the automotive standard AEC-Q101.
The diode has a height of 41.02 mm and a length of 15.87 mm.
This diode is classified as a general purpose rectifier.
The peak reverse current is rated at 500 μA.
It is suitable for use in industrial electronics, automotive systems, power supply converters, and battery charging systems.
It is optimized for high-speed operation with hyperfast and optimized Qrr technologies.
