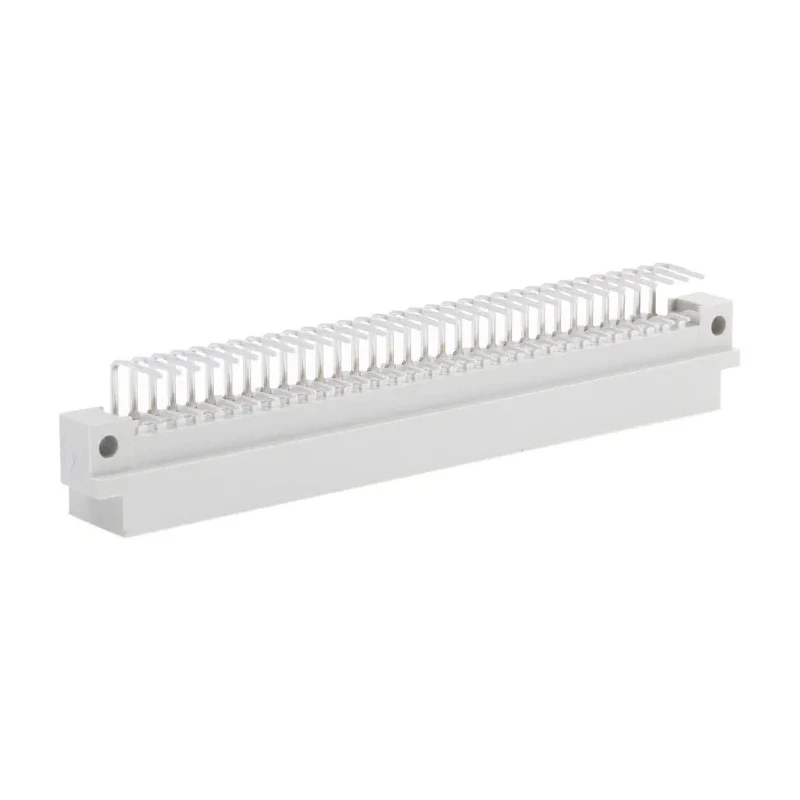

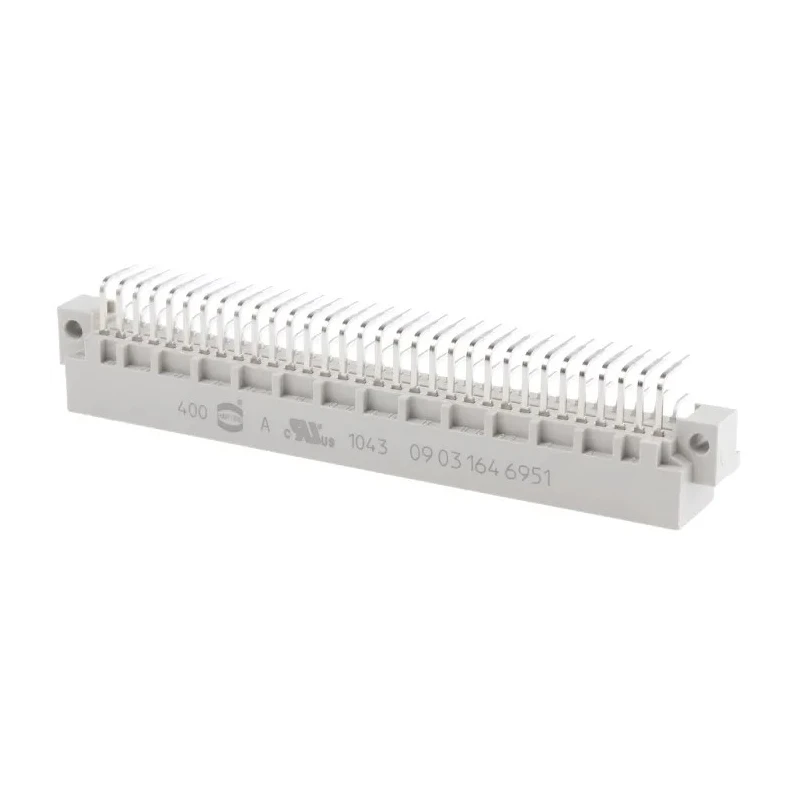

HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole 2 Row Male Right Angle Connector 09031646951
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 64 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/C |
Key Features
- Features 64 contacts to handle complex signal transmissions efficiently.
- Designed with a 2-row male configuration oriented at a right angle for optimal PCB layout.
- Contact plating of gold over nickel ensures durable and corrosion-resistant connections.
- Operates reliably between -55°C and 125°C for harsh industrial environments.
- Termination is solder type ensuring secure and permanent connections.
- Constructed from copper alloy contacts and polybutylene terephthalate housing for durability.
- Maximum contact resistance is 20 milliohms, ensuring efficient signal transmission.
- Mating first at positions a1 and a31 to ensure proper alignment and connectivity.
Product Description
HARTING 09031646951 DIN 41612 connector is a highly reliable, two-row, 64-way male right angle connector designed for electronic backplane and rack connections. It features a 2.54 mm pitch and type C/2 through-hole mount with solder termination adhering to Class C2 standards for industrial-grade performance.
Constructed with copper alloy contacts plated with gold over nickel and housed in durable polybutylene terephthalate, the connector withstands operating temperatures ranging from -55°C to 125°C. Its maximum contact resistance is 20 milliohms, making it ideal for low resistance signal transmission. The connector is designed to mate first at positions a1 and a31, ensuring safe and correct installation.
This DIN 41612 connector meets the demands of rigorous industrial, manufacturing, and electronic equipment applications, providing stable and long-lasting interconnection in PCB designs and Eurocard racking systems.
64 contacts for versatile connection needs. 2-row male right angle design for PCB integration. Solder termination ensures strong mechanical and electrical contact. Gold over nickel plating provides corrosion resistance. Thermoplastic resin housing offers mechanical robustness.
Wide operating temperature range supports extreme environments. Suitable for industrial, laboratory, and commercial electronic applications.
This product is manufactured in Germany, reflecting high-quality engineering and consistent performance excellence. For reliable DIN 41612 connector solutions, choose HARTING products available at EnvMart.
Explore more products in our DIN 41612 Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 2.54 mm, which is standard for DIN 41612 connectors.
This model features 64 contacts, allowing for versatile connection needs in electronic applications.
The maximum operating temperature for this connector is 125°C, making it suitable for harsh industrial environments.
It uses solder termination, ensuring secure and permanent connections for reliable performance.
The connector is constructed with copper alloy contacts and a polybutylene terephthalate housing for durability.
This connector is designed with a right angle orientation, which optimizes PCB layout.
The maximum contact resistance is 20 milliohms, ensuring efficient signal transmission.
The current rating for this connector is 2A, suitable for various electronic applications.
This connector belongs to the DIN 41612 series, which is commonly used for electronic backplane and rack connections.
The minimum operating temperature for this connector is -55°C, allowing it to function in extreme conditions.
This product is manufactured in Germany, reflecting high-quality engineering standards.
The sub-type of this connector is C/2, which indicates its specific configuration within the DIN 41612 series.
