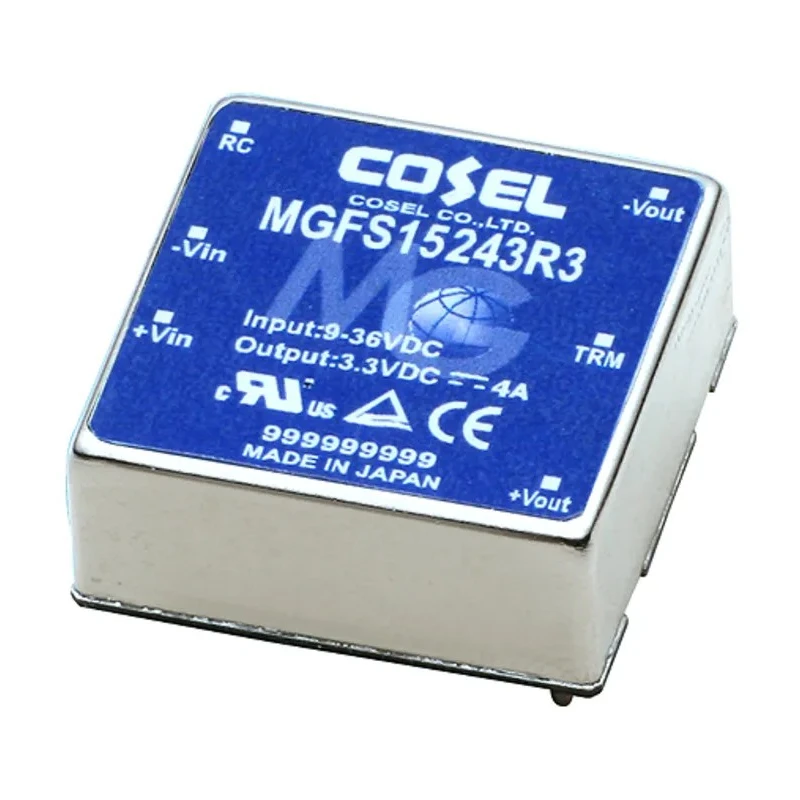

Cosel MGFS DC/DC Converter 3.3V DC 4A Output, 24V DC & 9V DC Input, 13.2W Power, PCB Mount, 6-Pin DIP MGFS15243R3-R
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Cosel |
| Efficiency | 87% |
| Length | 25.4mm |
| Model | MGFS15243R3-R |
| Depth | 9.9mm |
| Gross Weight | 20g |
| Width | 9.9mm |
| Mount Type | PCB |
| Series | MGFS |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 13.2W |
| Maximum Input Voltage | 24V dc |
| Standards/Approvals | TUV, UL 60950-1, CE, cUL, cULus, EN 60950-1 |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 4A |
| Isolation Voltage | 500V dc |
| High reliability | no built-in aluminium and tantalum electrolytic capacitor |
| High efficiency | synchronised rectification circuit (MGS10 / MGS15 / MGFS15 / MGS30 / MGFS30) |
Key Features
- Output voltage is precisely 3.3V DC with 4A output current capacity.
- Wide input voltage range from 9V minimum to 24V maximum supports diverse power supplies.
- Compact PCB mounting with a 6-pin DIP package for easy integration.
- High efficiency of 87% ensures minimal power loss during conversion.
- Built-in overcurrent and overvoltage protection circuits enhance reliability.
- Isolation voltage of 500V DC provides electrical separation and safety.
- Low ripple and noise voltage of 150mV peak-to-peak for stable output.
- Designed for industrial applications with temperature ratings from -40°C to 85°C.
Product Description
Cosel MGFS15243R3-R is a high-quality DC/DC converter engineered to deliver stable 3.3V DC output voltage at 4A current suitable for professional electronic and industrial applications. This converter accommodates a wide input voltage range from 9V to 24V DC, allowing versatility in power sources. Its compact 6-pin DIP package ensures convenient PCB mounting integration while the robust design caters to harsh industrial environments with operating temperatures ranging from -40°C to 85°C.
The MGFS Series features high efficiency of 87% facilitated by a synchronized rectification circuit, ensuring energy-efficient power conversion and reduced heat generation. It includes comprehensive safety features such as built-in overcurrent and overvoltage protection circuits, which automatically recover to prevent damage to connected equipment. The electrical isolation voltage of 500V DC ensures user safety and device integrity.
Designed without the use of aluminum and tantalum electrolytic capacitors, the converter achieves superior reliability and long operational life. The low output ripple and noise make it suitable for sensitive electronic circuits, while the remote On/Off control feature allows convenient power management. The compact dimensions of 25.4mm length, 9.9mm width, and 9.9mm depth make it ideal for space-constrained applications.
Precise 3.3V DC output voltage at 4A current capability. Wide input voltage range suitable for varied power sources. Compact 6-pin DIP package for easy PCB mounting integration. High energy efficiency of 87% reduces power loss and heat.
Comprehensive protection circuits for overcurrent and overvoltage. Electrical isolation voltage of 500V DC with safety compliance. Low ripple and noise of 150mV peak-to-peak for stable output. Operational temperature range from -40°C to 85°C suitable for industrial use.
High reliability design without aluminum or tantalum capacitors. Remote On/Off function for convenient operation control.
This Cosel DC/DC converter is suitable for use in industrial controls, telecommunications, instrumentation, and other electronics requiring reliable, isolated power conversion. The unit complies with international standards including TUV, UL 60950-1, CE, and EN 60950-1, ensuring safety and quality. Manufactured in Japan, it offers a 10 year warranty representing durable performance and trust.
Explore the comprehensive range of DC/DC Converters by Cosel on EnvMart to find solutions that fit various power supply and conversion requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 3.3V DC, with a current capacity of 4A.
It supports a wide input voltage range from 9V to 24V DC.
The efficiency of this unit is rated at 87%, which helps reduce power loss during operation.
This converter measures 25.4mm in length, 9.9mm in width, and 9.9mm in depth.
The isolation voltage of this model is 500V DC, ensuring electrical separation and safety.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
The Cosel MGFS15243R3-R is designed for PCB mounting with a 6-pin DIP package.
It includes built-in overcurrent and overvoltage protection circuits to enhance reliability.
The output ripple and noise voltage is specified at 150mV peak-to-peak.
It complies with TUV, UL 60950-1, CE, cUL, cULus, and EN 60950-1 standards.
The maximum output power is 13.2W, suitable for various applications.
Yes, this unit features a remote On/Off control function for convenient power management.
