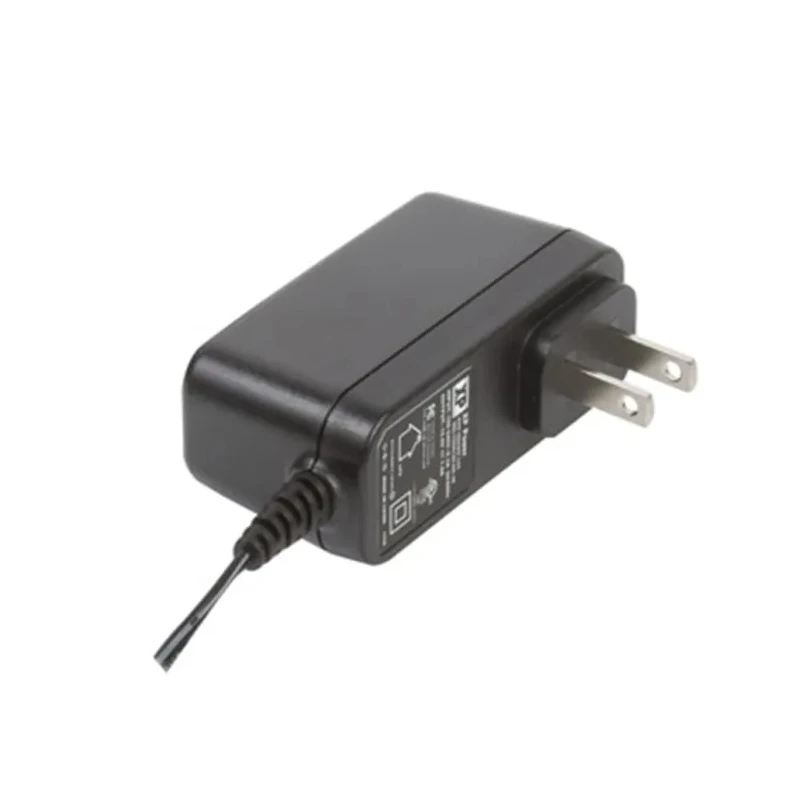

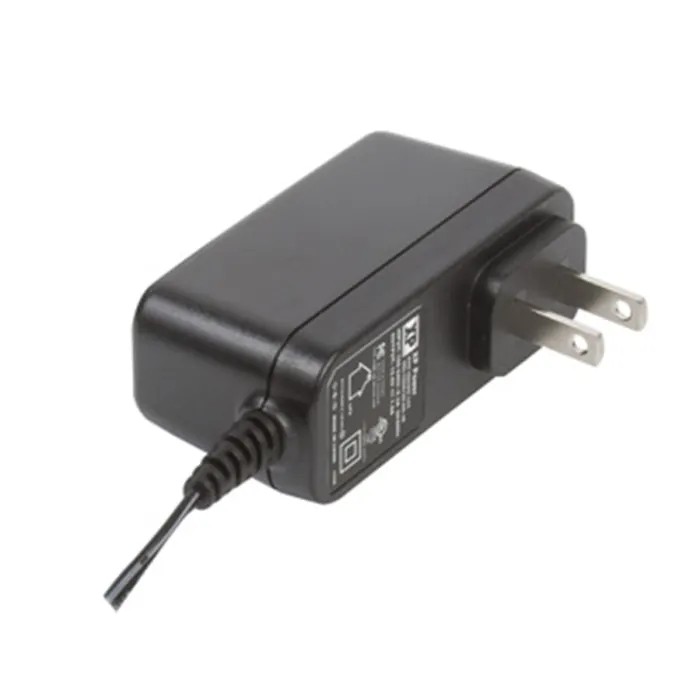

XP Power AC/DC Adapter Type A, 36W, 12V DC Output, 3A, Centre Positive, 2.1 x 5.5 x 12 mm, US Plug VEL36US120-US-JA

Free Delivery in India | Lowest Global Shipping Charges

XP Power AC/DC Adapter Type A, 36W, 12V DC Output, 3A, Centre Positive, 2.1 x 5.5 x 12 mm, US Plug VEL36US120-US-JA

Name: XP Power AC/DC Adapter Type A, 36W, 12V DC Output, 3A, Centre Positive, 2.1 x 5.5 x 12 mm, US Plug VEL36US120-US-JA
Brand: XP Power
SKU: 91391



Category AC/DC Adapter Brand XP Power Condition New

Specifications

Country of Origin	China
Brand	XP Power
Power	36W
Efficiency	87%
Length	94mm
Model	VEL36US120-US-JA
Depth	46.6mm
Width	35mm
Series	VEL36
Maximum Operating Temperature	45°C
Minimum Operating Temperature	0°C
Plug Type	Type A
Number of outputs	1
Output Voltage	12V dc
Standards/Approvals	UL 60950-1, EN 60950-1, CE, CB
Minimum Input Voltage	100V ac
Output Connector Type	2.1 x 5.5 x 12 mm Centre Positive
Input Connector Type	US Plug
Adapter Current	3A
Energy Efficiency Level	VI

Key Features

Compact AC/DC adapter with centre positive output connector.
Delivers 36W power with a 12V DC output and 3A current for reliable performance.
Features a US plug for convenient compatibility with Type A sockets.
High efficiency level VI with UL, EN, CE, and CB approvals for safe operation.
Class II construction and universal input for versatile applications.
Suitable for industrial, laboratory, and electronic equipment requiring stable DC power.
Single output with 2.1 x 5.5 x 12 mm connector for various devices.
Operating temperature range from 0°C to 45°C for extended usability.

Product Description

XP Power VEL36US120-US-JA is a high-performance AC/DC adapter engineered for industrial, laboratory, and electronics use. The unit delivers a stable 12V DC output at up to 3A, with a total power capacity of 36W, making it suitable for powering sensitive equipment and devices requiring reliable DC supply.

Featuring a centre positive output connector (2.1 x 5.5 x 12 mm), this adapter is designed for compatibility with a wide range of devices, from measuring instruments to power distribution modules. Its US plug (Type A) makes it ideal for use in environments with Type A socket standards. The adapter ensures safety with UL 60950-1, EN 60950-1, CE, and CB certifications (compliance confirmed per source evidence).

Compact and robust design for industrial, laboratory, and commercial applications. Efficient energy conversion: Level VI efficiency and 87% typical efficiency reduce power consumption. Universal input range (100V AC minimum) accommodates varying installation environments.

Single-output configuration with a centre positive connector ensures easy integration into existing systems. Reliable operation across a temperature range of 0°C to 45°C. Class II construction for enhanced safety and low no-load power consumption.

Ideal for advanced electronics, automation, instrumentation, and testing benches.

With a compact housing dimension of 94mm (length) x 35mm (width) x 46.6mm (depth), the adapter is space-efficient and easy to deploy. The VEL36 series from XP Power is widely recognized for quality and efficiency in plug-in power supplies.

Industrial applications include powering control systems, sensors, communication modules, and laboratory devices. Browse related AC/DC Adapters and power supply solutions from XP Power in the EnvMart electronics category.
