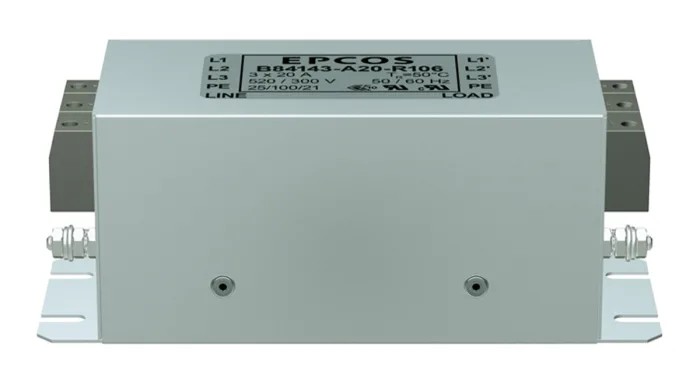

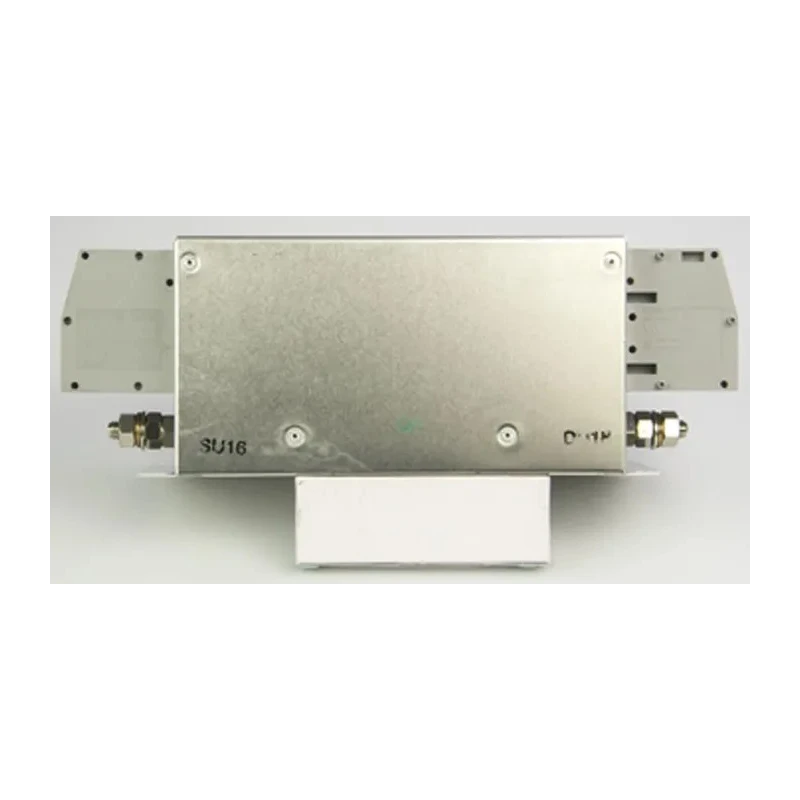

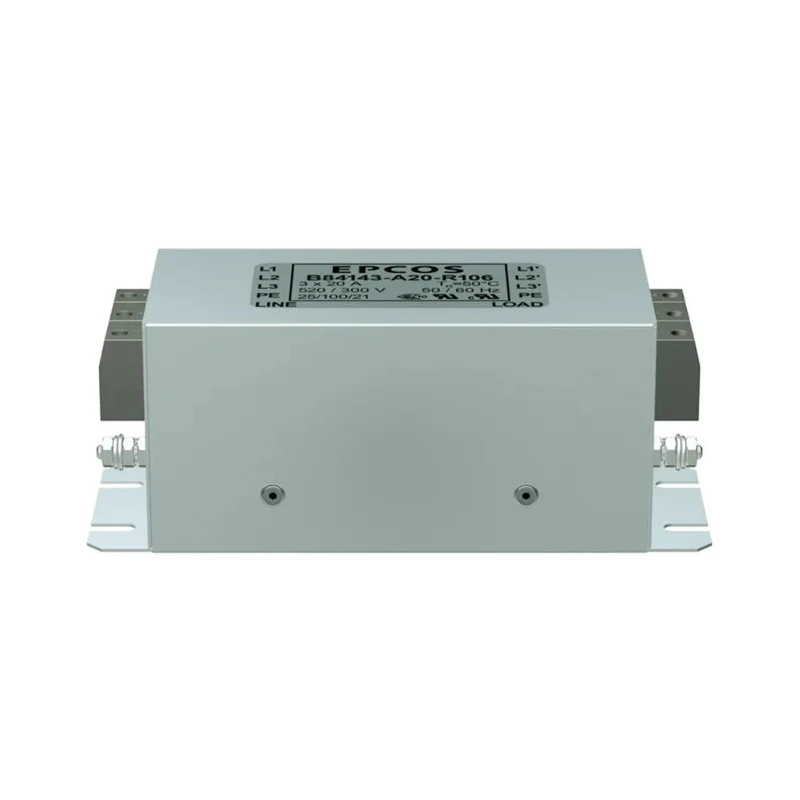

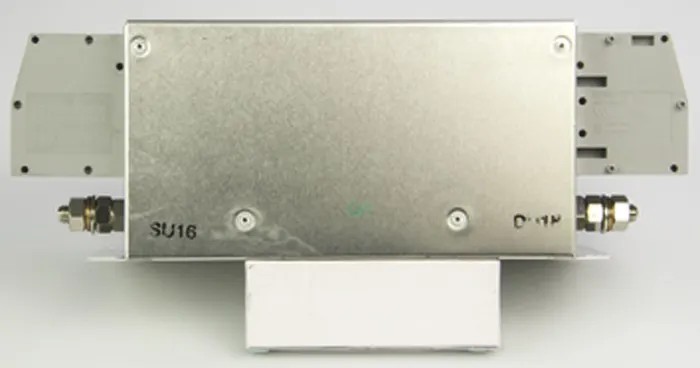

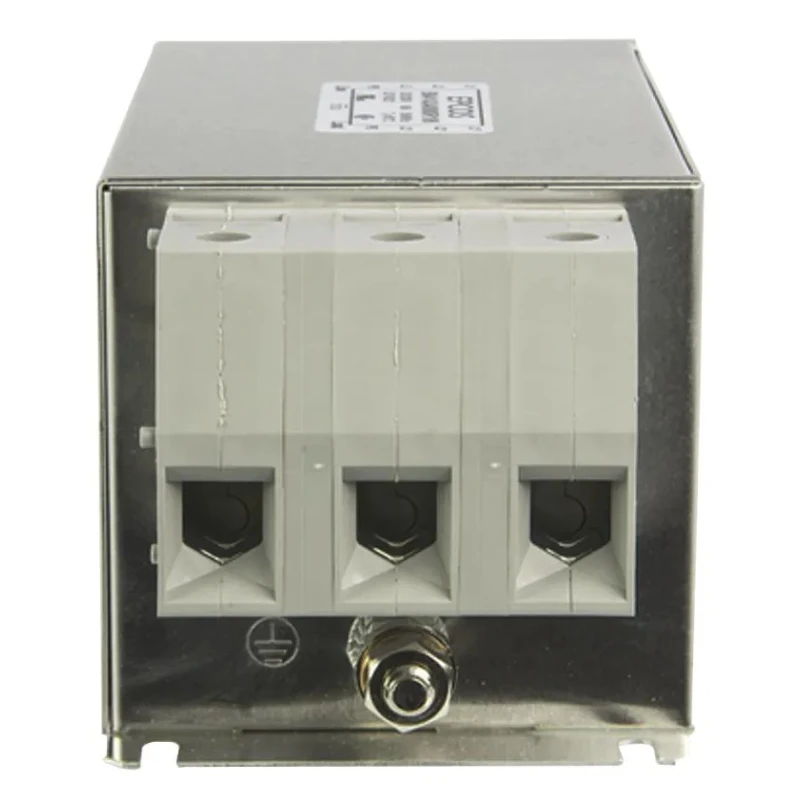

TDK 3 Phase Flange EMC Filter 80 A 520V AC 50Hz, 60 Hz Screw Termination B84143A0080R106
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 90mm |
| Length | 256mm |
| Model | B84143A0080R106 |
| Depth | 94.5mm |
| Mount Type | Flange |
| Operating Frequency | 50, 60Hz |
| Series | B84143A*R106 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 600Ω |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 80A |
| Number of Phases | 3 |
| Leakage Current | 3.4mA |
| Maximum Voltage | 520V ac |
| Standards/Approvals | UL 1283 |
| Termination Style | Screw |
| Applications include | Frequency converters for motor drives (e.g. elevators, pumps, conveyor systems and HVAC systems), Power supplies, Textile machines, Packaging machines and Machine - tools |
Key Features
- Compact metal case optimized for easy installation and high insertion loss.
- Suitable for long motor cables and full load operation.
- Rated for IP 20 protection ensuring safety in various industrial environments.
- Designed for use in frequency converters for motor drives including elevators, pumps, conveyors, and HVAC systems.
- Highly reliable with a leakage current of 3.4 mA and operates between -25°C and 100°C.
- Mount type is flange with screw termination style for secure connections.
- Complies with IEC 60939 standard and UL 1283, CSA 22.2 No.8 approvals.
Product Description
TDK B84143A0080R106 is a 3 Phase Flange EMC Filter designed for industrial and commercial applications requiring efficient electromagnetic interference suppression.
This filter supports a maximum current of 80 A and operates at a maximum voltage of 520V AC with frequencies of 50Hz and 60Hz, making it suitable for varied power system requirements.
The flange mounting and screw termination style ensure secure and stable installation in control panels and motor drive systems. Its compact metal casing facilitates easy installation while maintaining high insertion loss, reducing EMI noise effectively.
With an operating temperature range from -25°C up to 100°C and a leakage current of only 3.4 mA, this filter performs reliably under demanding conditions.
The product is IP 20 rated, offering protection against solid objects, and meets international standards IEC 60939 and certifications UL 1283 and CSA 22.2 No.8, confirming its quality and safety compliance.
Typical applications include frequency converters for motor drives such as elevators, pumps, conveyor systems, HVAC systems, power supplies, textile machines, packaging machines, and machine-tools.
Compact metal case optimized for easy installation and high insertion loss. Suitable for long motor cables and full load operation. Rated for IP 20 protection ensuring safety in various industrial environments. Designed for use in frequency converters for motor drives including elevators, pumps, conveyors, and HVAC systems.
Highly reliable with a leakage current of 3.4 mA and operates between -25°C and 100°C. Mount type is flange with screw termination style for secure connections. Complies with IEC 60939 standard and UL 1283, CSA 22.2 No.8 approvals.
Dimensions are 256mm length, 90mm height, and 94.5mm depth for compact integration. Explore more high-quality EMI filters and power line filters at EnvMart for your industrial electronic component needs.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 80 A.
It operates at a maximum voltage of 520V AC.
This unit supports operating frequencies of 50 Hz and 60 Hz.
The leakage current is 3.4 mA.
It operates within a temperature range of -25°C to 100°C.
The dimensions are 256 mm in length, 90 mm in height, and 94.5 mm in depth.
This EMC filter uses a flange mounting type with screw termination style for secure installation.
It complies with IEC 60939 and has certifications from UL 1283 and CSA 22.2 No. 8.
The resistance value is 600 Ω.
This model supports 3 phases.
It is rated IP 20, providing protection against solid objects.
