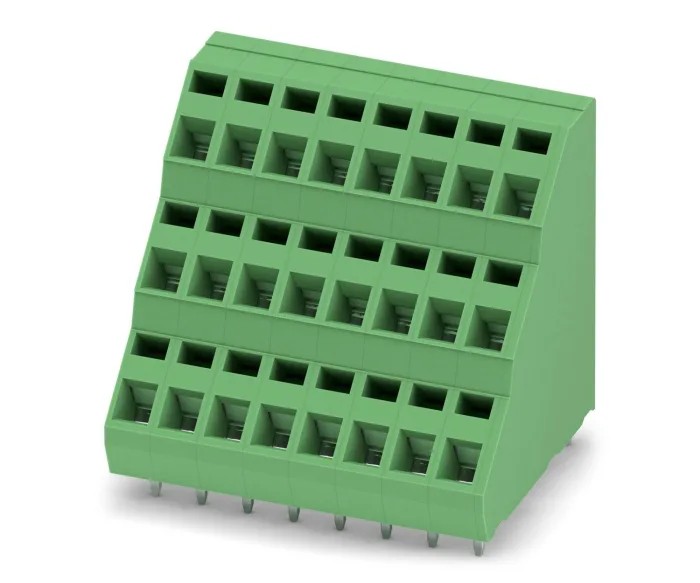

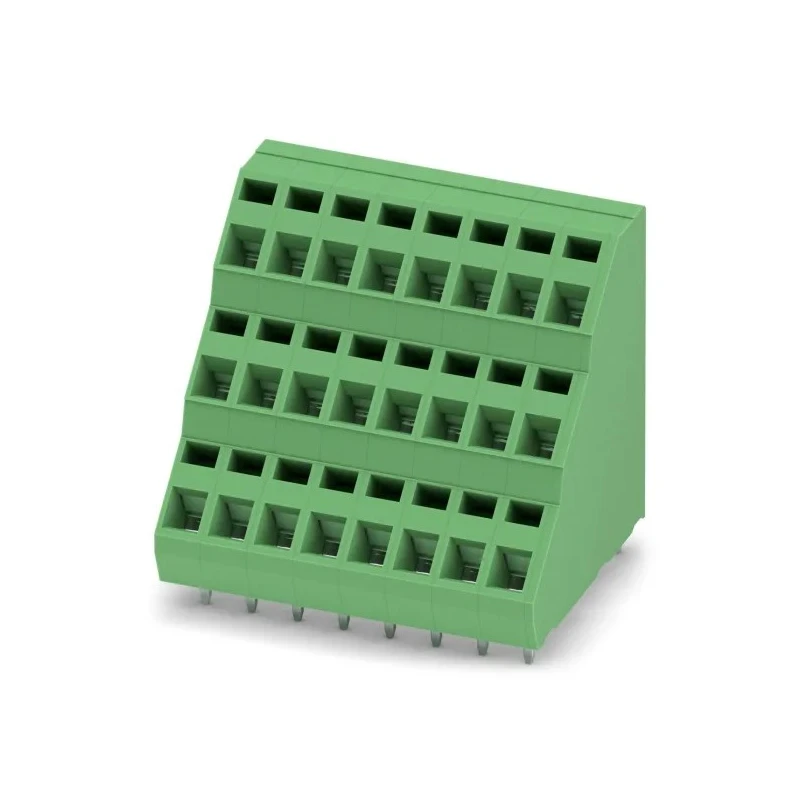

Phoenix Contact PCB Terminal Block ZFK3DSA 1.5-5.08-8 Series, 8 Contacts, 3 Rows, 12A Current, 400V Voltage ZFK3DSA
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Current | 12A |
| Model | ZFK3DSA |
| Housing Material | Polyamide |
| Series | ZFK3DSA 1.5-5.08- 8 |
| Number of Rows | 3 |
| Pitch | 5.08mm |
| Standards/Approvals | CHINA RoHS, EU RoHS, EU REACH SVHC, cULus, CSA |
| Number of Contacts | 8 |
Key Features
- Designed for PCB mounting with wave soldering method.
- Pitch size of 5.08 mm ensures standard spacing between contacts.
- Constructed with durable polyamide housing material for thermal and mechanical stability.
- Utilizes spring-cage connection for secure conductor retention.
- Pin layout employs linear pinning with 45° conductor/PCB connection direction.
- Complies with CHINA RoHS, EU RoHS, EU REACH SVHC, cULus, and CSA standards.
- Nominal cross-section of 1.5 mm² supports efficient current flow and connection.
- Compact form factor with 3 rows and 8 positions per row maximizes space efficiency.
Product Description
Phoenix Contact ZFK3DSA PCB Terminal Block is an industrial-grade connector designed specifically for printed circuit board (PCB) applications. Featuring 8 contacts arranged in 3 rows, it supports a nominal current of 12 A and a rated voltage of 400 V (III/2), making it suitable for various electronic and electrical assemblies requiring secure wire connections.
The terminal block employs a spring-cage connection system, ensuring robust and vibration-resistant conductor retention. Its polyamide housing offers excellent mechanical strength and thermal resistance, contributing to long-term reliability. The product is designed for wave soldering mounting, facilitating efficient and precise automated assembly processes.
The 5.08 mm pitch enables standard spacing between contacts, which, along with linear pinning and a 45-degree conductor/PCB connection direction, allows for optimized board layouts and ease of wiring. This terminal block meets rigorous international standards including CHINA RoHS, EU RoHS, EU REACH SVHC, cULus, and CSA, ensuring environmental compliance and safety certification compliance.
With a nominal cross-section of 1.5 mm² and 24 potentials distributed across three rows, this component is ideal for industrial, electronic manufacturing, HVAC control systems, automation equipment, and other commercial applications requiring reliable electrical connections.
Designed for PCB mounting with wave soldering method. Pitch size of 5.08 mm ensures standard spacing between contacts. Constructed with durable polyamide housing material for thermal and mechanical stability. Utilizes spring-cage connection for secure conductor retention.
Pin layout employs linear pinning with 45° conductor/PCB connection direction. Complies with CHINA RoHS, EU RoHS, EU REACH SVHC, cULus, and CSA standards. Nominal cross-section of 1.5 mm² supports efficient current flow and connection.
Compact form factor with 3 rows and 8 positions per row maximizes space efficiency.
This Phoenix Contact ZFK3DSA series PCB Terminal Block offers precision, durability, and certification-compliant quality for industrial, commercial, and manufacturing sectors. Explore a wide selection of PCB connectors and terminal blocks in the Electronics Components category at EnvMart for your electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a nominal current of 12 A and a rated voltage of 400 V.
It features 8 contacts arranged in 3 rows.
The pitch size is 5.08 mm, ensuring standard spacing between contacts.
It utilizes a spring-cage connection system for secure conductor retention.
The housing is constructed from polyamide, providing thermal and mechanical stability.
It complies with CHINA RoHS, EU RoHS, EU REACH SVHC, cULus, and CSA standards.
The nominal cross-section is 1.5 mm², supporting efficient current flow.
The pin layout employs linear pinning with a 45-degree conductor/PCB connection direction.
Yes, it is designed for PCB mounting using the wave soldering method.
The country of origin is Germany.
Its compact form factor with 3 rows and 8 positions per row maximizes space efficiency on PCBs.
It is suitable for industrial, electronic manufacturing, HVAC control systems, and automation equipment.
