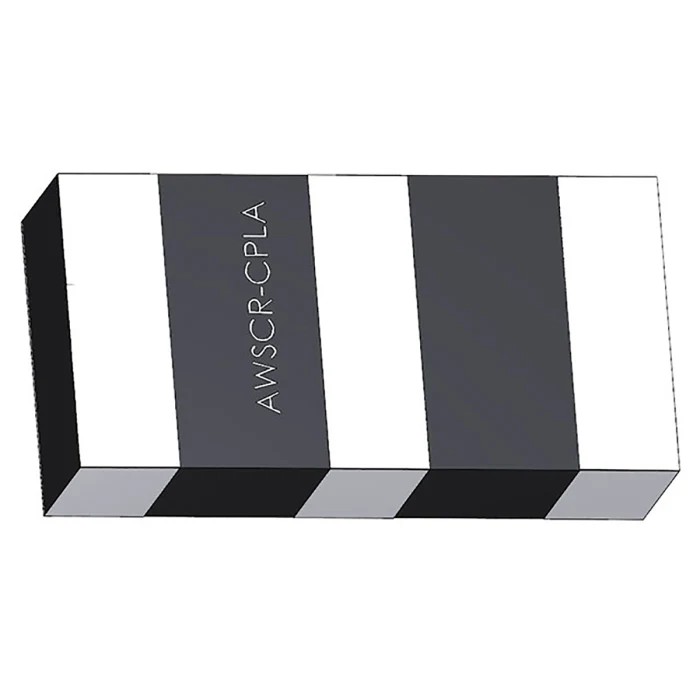

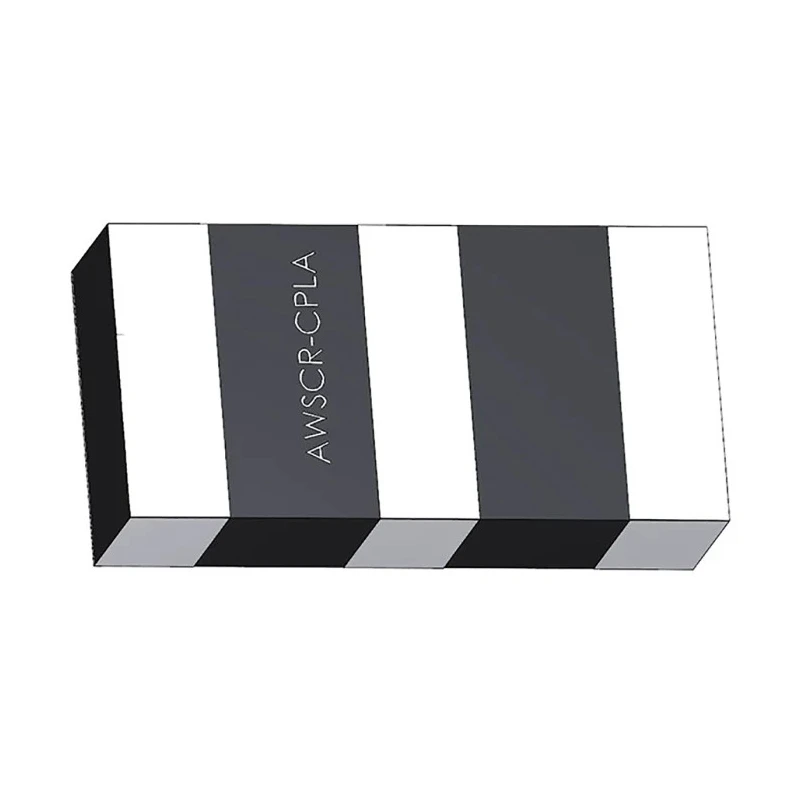

Abracon Ceramic Resonator 8 MHz 30 pF Surface Mount 3-Pin Tape & Reel AWSCR-8.00CPLA-C30-T4

Abracon AWSCR-8.00CPLA-C30-T4 is a high-quality Ceramic Resonator designed for reliable frequency control in electronic circuits. It operates at a resonance frequency of 8 MHz with a load capacitance of 30 pF and features a surface mount 3-pin configuration presented in a tape and reel package optimized for automated assembly processes.

The resonator exhibits a frequency tolerance of ±0.5% and a frequency ageing of ±0.1% which ensures long-term frequency stability required in metering systems, remote controls, industrial control applications, and microprocessor circuits. Its operational temperature range from -40°C to 85°C enables use in harsh environmental conditions often encountered in industrial and commercial electronic devices.

Physical dimensions include a compact footprint of 6 mm length, 3 mm width, and 1.5 mm height making it suitable for space-constrained PCB layouts. The device features a resonance resistance of 30 Ω contributing to low loss and precise performance. Its solder termination type allows for reliable connections on printed circuit boards.

The product complies with RoHS environmental regulations, supporting eco-friendly manufacturing and disposal practices. Manufactured in China, it is supplied new in condition, assuring quality and reliability for electronic component applications.

Applications include frequency stabilization in metering systems, remote control devices, industrial automation, electric appliances, and microprocessor circuit timing. Packaging in tape and reel form facilitates efficient handling and placement in high volume PCB assembly lines.

Features a resonance frequency of 8 MHz suitable for precise timing applications. Equipped with a frequency tolerance of ±0.5% ensuring stable operation. Mounted as a surface type with solder termination for easy PCB assembly.

Operates within a temperature range from -40°C to 85°C permitting use in extended industrial environments. Includes a resonance resistance of 30 Ω for optimized signal characteristics. Comes with a standardized AWSCR-CPLA series footprint measuring 6 mm length, 3 mm width, and 1.5 mm height.

Packaged in tape and reel format for automated SMT placement. Meets RoHS compliance for environmental safety. Manufactured in China with new product condition ensuring reliability. Discover more electronic components and accessories in EnvMart’s Electronics & Electricals categories for precision frequency control and reliable circuit design.
