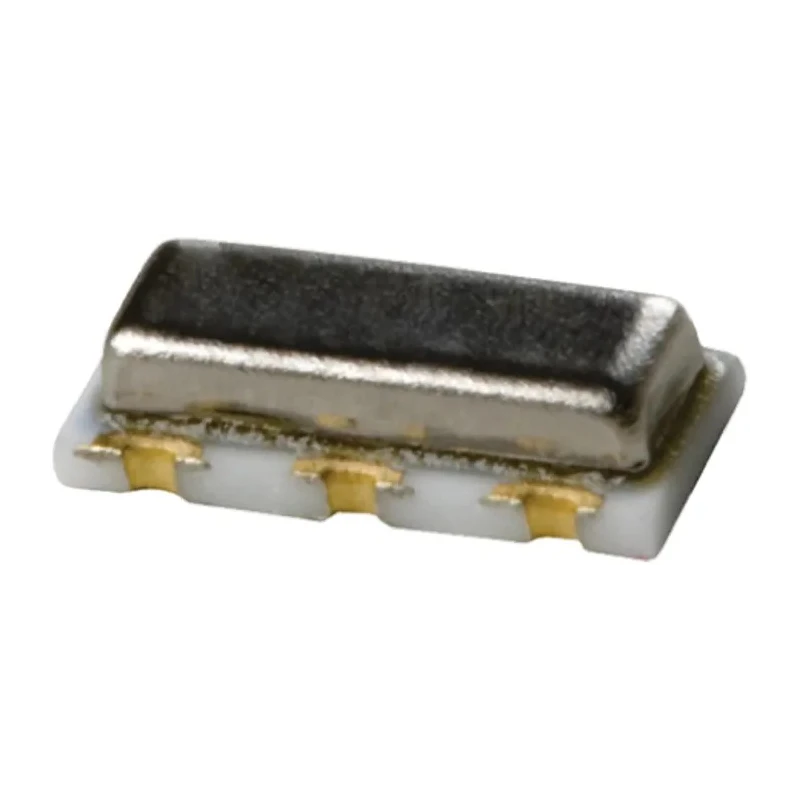

Murata Ceramic Resonator 7.37 MHz Shear Mode 39 pF Load Capacitance 3-Pin Surface Mount 1.15 mm Height 2 mm CSTCR7M37G55-R0
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 1.15mm |
| Length | 4.5mm |
| Model | CSTCR7M37G55-R0 |
| Width | 2mm |
| Mount Type | Surface |
| Series | CSTCR |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 3 |
| Load Capacitance | 39pF |
| Resonance Frequency | 7.37MHz |
| Resonance Resistance | 50Ω |
| Mode of Oscillation | Shear |
Key Features

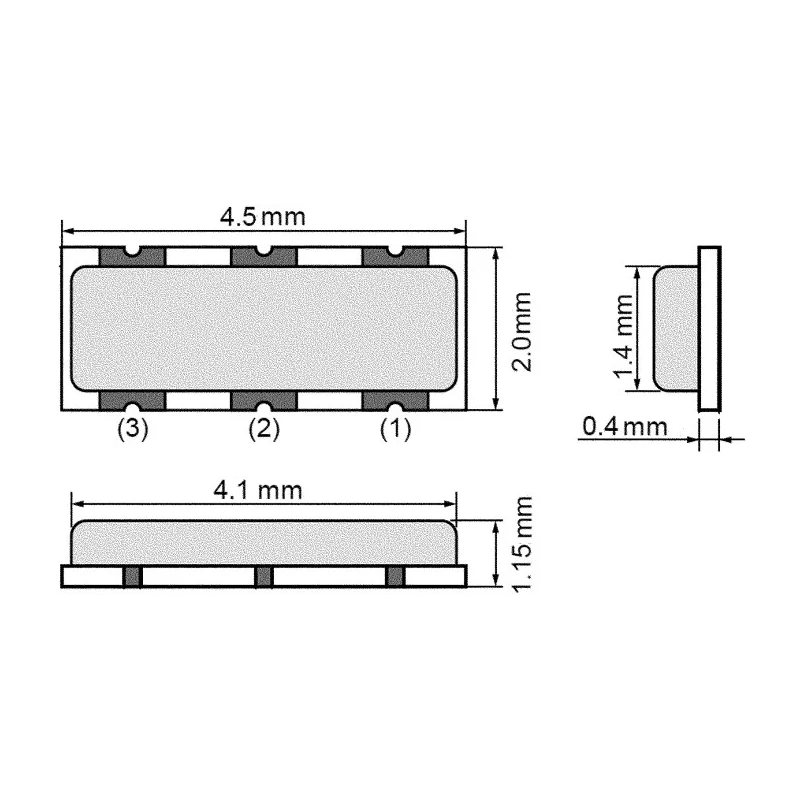

- This ceramic resonator features 3 pins and low profile dimensions of 1.15 mm height, 2 mm width, and 4.5 mm length.
- It provides excellent frequency stability with ±0.2% and frequency tolerance of ±0.5%.
- The resonator exhibits a resonance resistance of 50 Ω and frequency ageing of ±0.1% for reliable performance.
- Operating temperature ranges from -20°C to 80°C supporting various industrial environments.
- Built to RoHS and REACH standards, ensuring environmental compliance.
- Incorporates integral load capacitors eliminating need for external capacitors, optimizing PCB space.
- Part of Murata's CERALOCK® CSTCR series offering a wide range of MHz band ceramic resonators for high-density mounting.
- Suitable as a replacement for crystal oscillators in USB controller ICs, audio equipment, musical instruments, and other electronic devices.
Product Description
Murata CSTCR7M37G55-R0 ceramic resonator delivers a resonance frequency of 7.37 MHz utilizing shear mode oscillation with an integrated 39 pF load capacitance. This surface mount device features a compact 3-pin configuration with dimensions of 1.15 mm height, 2 mm width, and 4.5 mm length, enabling an economical use of PCB space and facilitating high-density mounting.
Part of the Murata CERALOCK® CSTCR series, this ceramic resonator benefits from high stability piezoelectric ceramics and integral load capacitors that eliminate the need for external load components in oscillation circuits. Its frequency tolerance of ±0.5% and frequency stability of ±0.2% ensure precise oscillation performance, while its resonance resistance of 50 Ω and frequency ageing of ±0.1% provide dependable signal integrity over time. Operating effectively in temperatures from -20°C to 80°C, it is suitable for applications in a variety of industrial and commercial settings.
The resonator complies with REACH and RoHS environmental standards, guaranteeing hazardous substance management and eco-friendly construction.
This product is widely used as a cost-effective substitute for crystal oscillators in circuits such as USB controller ICs, audio electronics, and musical instrument circuits, delivering reliable timing and frequency generation.
This ceramic resonator features 3 pins and low profile dimensions of 1.15 mm height, 2 mm width, and 4.5 mm length. It provides excellent frequency stability with ±0.2% and frequency tolerance of ±0.5%. Resonance resistance is 50 Ω with frequency ageing of ±0.1% for long-term reliability.
Integral load capacitors eliminate the need for additional external capacitors. Operation temperature ranges from -20°C to 80°C, suitable for industrial environments. Compliant with REACH and RoHS standards to meet environmental regulations.
Compact surface-mount design optimizes PCB space and manufacturing efficiency. Explore more high-quality electronic components and Ceramic Resonators at EnvMart for industrial, commercial, and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this ceramic resonator is 7.37 MHz, utilizing shear mode oscillation.
This model has a height of 1.15 mm, a width of 2 mm, and a length of 4.5 mm, making it suitable for high-density mounting.
The resonator features an integral load capacitance of 39 pF, eliminating the need for external capacitors.
It operates effectively within a temperature range from -20°C to 80°C, suitable for various industrial environments.
The frequency tolerance of this resonator is ±0.5%, ensuring precise oscillation performance.
The resonance resistance is 50 Ω, which contributes to its reliable signal integrity.
Yes, it complies with REACH and RoHS standards, ensuring hazardous substance management and eco-friendly construction.
It is suitable as a replacement for crystal oscillators in USB controller ICs, audio equipment, and musical instruments.
This model features a 3-pin configuration, facilitating surface mounting.
It is part of the Murata CERALOCK® CSTCR series, which offers a range of MHz band ceramic resonators.
This resonator utilizes shear mode oscillation for its frequency generation.
