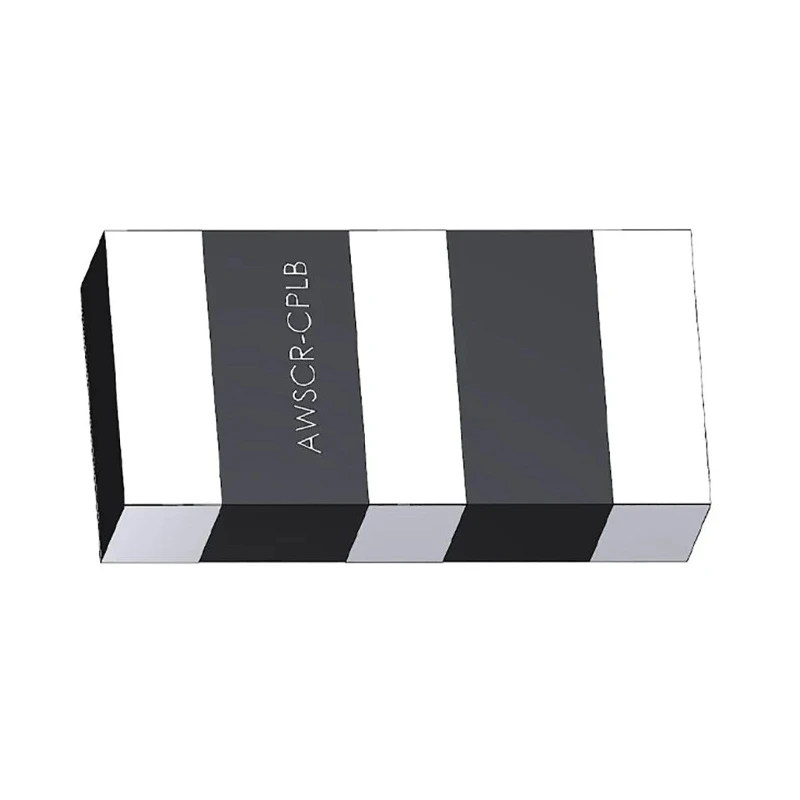

Abracon Ceramic Resonator Surface Mount 4 MHz 10 pF Load Capacitance Tape & Reel AWSCR-4.00CPLB-C10-T4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 1.5mm |
| Length | 6mm |
| Model | AWSCR-4.00CPLB-C10-T4 |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | AWSCR-CPLB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Package Type | Tape & Reel |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Load Capacitance | 10pF |
| Resonance Frequency | 4MHz |
| Resonance Resistance | 30Ω |
Key Features
- This ceramic resonator has a resonance resistance of 30 ohms to ensure signal stability.
- It features a frequency tolerance of ±0.5% for precise operation.
- Packaged as Tape & Reel with a 3 mm width and 6 mm length for easy automated PCB assembly.
- Designed to operate within an extended temperature range of -40°C to 125°C.
- The device has a frequency ageing rate of ±0.1% and frequency stability of ±0.4%.
- Solder termination type is used for reliable surface mounting.
- The resonator complies with RoHS standards for environmental safety.
- Ideal for industrial control, metering systems, remote controls, microprocessor circuits, and electric appliances.
Product Description
Abracon AWSCR-4.00CPLB-C10-T4 ceramic resonator is a surface mount device designed to provide stable 4 MHz frequency oscillations with a 10 pF load capacitance, packaged in Tape & Reel format.
This low resonance impedance resonator features a three-pin layout with 1.5 mm height, 3 mm width, and 6 mm length footprint compatible with industry-standard PCB assembly processes. It supports a wide operating temperature range from -40°C to 125°C, making it suitable for harsh and industrial environments.
Typical applications include metering systems, remote controls, microprocessor clock generation, industrial control systems, and various electric appliances requiring reliable frequency references.
The device exhibits a frequency tolerance of ±0.5%, frequency ageing of ±0.1%, and frequency stability of ±0.4%, ensuring accurate and consistent performance. Its solder termination type facilitates secure surface mounting on printed circuit boards. The resonator series AWSCR-CPLB is RoHS compliant and manufactured in China.
This ceramic resonator has a resonance resistance of 30 ohms to ensure signal stability. It features a frequency tolerance of ±0.5% for precise operation. Packaged as Tape & Reel with a 3 mm width and 6 mm length for easy automated PCB assembly.
Designed to operate within an extended temperature range of -40°C to 125°C. The device has a frequency ageing rate of ±0.1% and frequency stability of ±0.4%. Solder termination type is used for reliable surface mounting.
The resonator complies with RoHS standards for environmental safety. Ideal for industrial control, metering systems, remote controls, microprocessor circuits, and electric appliances.
Whether used in industrial, laboratory, or electrical engineering applications, this Abracon Ceramic Resonator provides reliable frequency stabilization critical for precise electronic timing and control tasks.
Browse more in our Electronics Components section for additional Abracon resonators and related products to complement your design and manufacturing needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resonance frequency of this ceramic resonator is 4 MHz.
This model has a load capacitance of 10 pF.
It is designed to operate within a temperature range of -40°C to 125°C.
The resonance resistance is 30 ohms, which helps ensure signal stability.
It is packaged in Tape & Reel format, with a width of 3 mm and a length of 6 mm for easy automated PCB assembly.
This unit uses a solder termination type for reliable surface mounting.
The frequency tolerance is ±0.5%, ensuring precise operation.
Typical applications include industrial control, metering systems, remote controls, and microprocessor circuits.
The dimensions are 1.5 mm in height, 3 mm in width, and 6 mm in length.
The frequency stability is ±0.4%, which contributes to accurate and consistent performance.
This resonator is manufactured in China.
It complies with RoHS standards for environmental safety.
