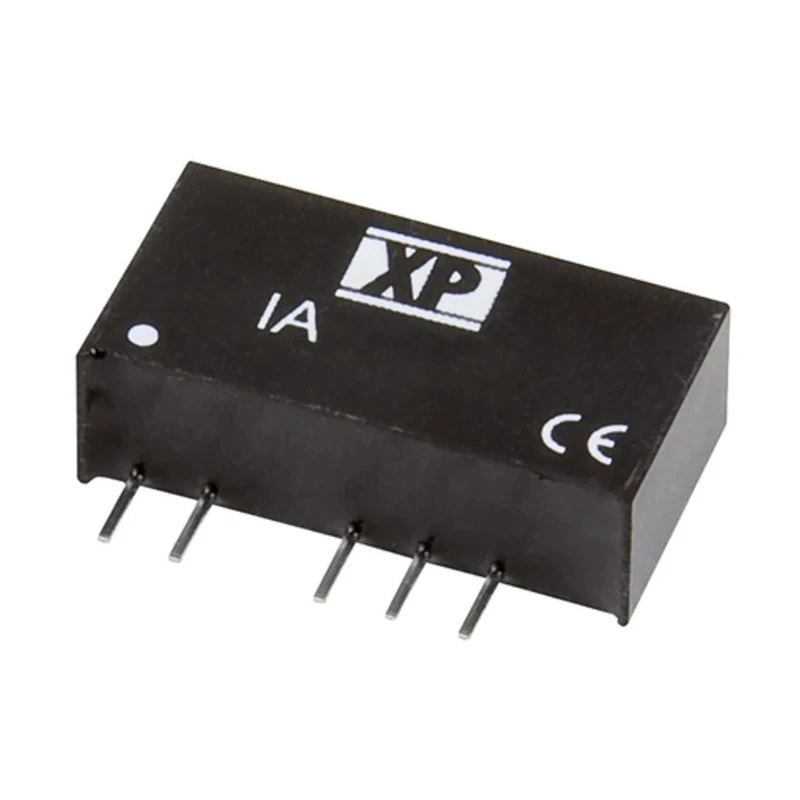

XP Power Isolated Dual Output DC/DC Converter 24V and -24V, 21mA Output Current, 1W Power, SIP Package Through Hole IA1224S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IA DC/DC Converter, 24V, -24 V/ 21 mA, 13 |
| Brand | XP Power |
| Efficiency | 76% |
| Length | 19.3mm |
| Model | IA1224S |
| Depth | 10.16mm |
| Width | 6.09mm |
| Mount Type | Through Hole |
| Series | IA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 24, -24V |
| Output Current 1 | 21mA |
| Isolation Voltage | 1kV dc |
Key Features
- Dual output voltage providing 24V and -24V outputs for versatile power needs.
- Maximum input voltage of 13.2V DC and minimum input voltage of 10.8V DC for stable operation.
- High isolation voltage of 1000 VDC ensures reliable electrical isolation.
- Operates efficiently at 76% efficiency with a wide temperature range from -40°C to 85°C.
- Compact SIP through hole mount package with 7 pins and dimensions 19.3mm x 10.16mm x 6.09mm.
- Mean time between failures (MTBF) of 1,100,000 hours indicating high reliability.
- Designed for industrial and electronic applications requiring isolated dual supply voltages.
Product Description
XP Power IA1224S isolated DC/DC converter is a dual output power supply unit delivering +24V and -24V outputs with 21mA current and 1W maximum output power. It features a SIP through hole package type with a compact design measuring 19.3mm length, 10.16mm depth, and 6.09mm width.
This converter supports input voltage from 10.8V DC minimum up to a maximum of 13.2V DC, making it suitable for diverse electronics and industrial power supply circuits. The device offers up to 1000V DC isolation, providing safe electrical separation between input and output circuits, essential for sensitive applications.
With an efficiency of 76%, the IA1224S operates reliably across a broad temperature range between -40°C and 85°C, ensuring performance in demanding environments. The unit is built for through hole mounting with 7 pins in an industry-standard SIP package, facilitating easy PCB integration.
Typical use cases include industrial control equipment, instrumentation, telecommunications, and other applications requiring stable isolated dual DC voltages with low power consumption and high reliability.
Dual output voltage providing 24V and -24V outputs for versatile power needs. Maximum input voltage of 13.2V DC and minimum input voltage of 10.8V DC for stable operation. High isolation voltage of 1000 VDC ensures reliable electrical isolation.
Operates efficiently at 76% efficiency with a wide temperature range from -40°C to 85°C. Compact SIP through hole mount package with 7 pins and small dimensions. Mean time between failures (MTBF) of 1,100,000 hours indicating high reliability.
Suitable for industrial, electronic component, and power supply applications.
This XP Power IA Series DC/DC converter is a reliable choice for engineers designing systems requiring isolated dual voltage outputs with low noise and high stability. Explore more XP Power DC/DC Converters and related power supply products on EnvMart to meet your application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of +24V and -24V.
The maximum input voltage for the IA1224S is 13.2V DC.
It operates with an efficiency of 76%.
The IA1224S operates within a temperature range of -40°C to 85°C.
This model features two outputs.
The isolation voltage is rated at 1000V DC.
The SIP package measures 19.3mm in length, 10.16mm in depth, and 6.09mm in width.
The maximum output power is 1W.
This unit has 7 pins for connection.
The MTBF for the IA1224S is 1,100,000 hours.
It is designed for through hole mounting.
It is suitable for industrial control equipment, instrumentation, and telecommunications requiring isolated dual DC voltages.
