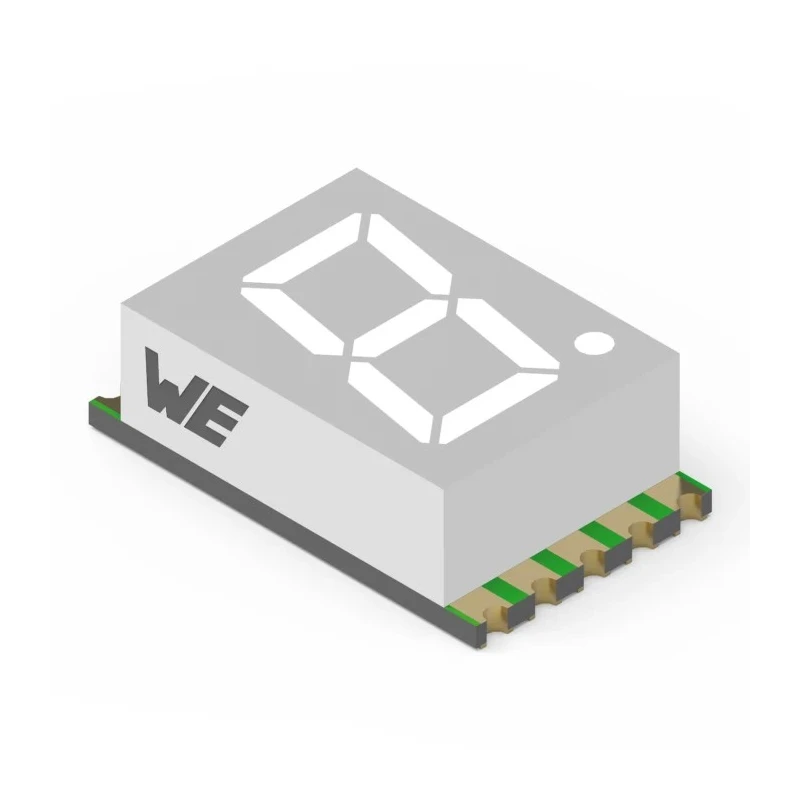

Wurth Elektronik 1 Digit 7 Segment LED Display Super Red 28mcd 14.2mm Character Height Anode Right Side 157143S12800

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 1 Digit 7 Segment LED Display Super Red 28mcd 14.2mm Character Height Anode Right Side 157143S12800

Name: Wurth Elektronik 1 Digit 7 Segment LED Display Super Red 28mcd 14.2mm Character Height Anode Right Side 157143S12800
Brand: Wurth Elektronik
SKU: 172341
Price: 2.96 USD
Availability: InStock



Category LED Display Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Display Type	7 Segment
Brand	Wurth Elektronik
Model	157143S12800
Series	WL-S7DS
Character height	14.2mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number Of Segments	7
Power Dissipation	52mW
Luminous Intensity	28mcd
Standards/Approvals	IEC, REACH, RoHS, EN
LED Colour	Super Red
Dominant Wavelength	635nm
Colour of Face	Grey
Forward Current	100mA
Number of Characters	1
Common Connection	Anode
Decimal Orientation	Right Side

Key Features

Common anode connection ensures compatibility with standard circuit designs.
Compact industrial standard size measuring 19 x 12.4 x 3.75 mm.
Super red LED color with a dominant wavelength of 635 nm for clear visibility.
Low power dissipation of 52 mW enables efficient operation.
Designed to operate within -40°C to 85°C temperature range for reliability.
Suitable for high peak forward current up to 100 mA.
Grey face color with milky diffused segments reduces glare and enhances readability.
Ideal for audio equipment, instrument panels, digital readouts, and control units.

Product Description

Wurth Elektronik 157143S12800 is a 1 digit, 7 segment LED display module designed for industrial use and electronic component integration. The display features a super red emitting color with a luminous intensity of 28 mcd and a character height of 14.2 mm, making it highly visible and suitable for various instrument panels and measurement devices.

The display utilizes a common anode configuration and supports a forward current up to 100 mA, allowing for efficient driving with DC current in the forward direction only. Its compact dimensions of 19 x 12.4 x 3.75 mm conform to industrial standards for easy mounting and replacement.

The grey face with milky diffused segments provide enhanced contrast and readability while minimizing glare. The decimal point is oriented to the right side, aiding in clear numeric displays.

This LED display operates reliably in challenging conditions with a temperature range from -40°C to 85°C, making it suitable for harsh industrial environments. It is compliant with IEC, REACH, RoHS, and EN standards, ensuring environmentally friendly and safe usage.

Typical applications include audio and measuring equipment, instrument panel displays, digital readout units, and control systems across industrial, laboratory, and commercial sectors.

Common anode connection enhances circuit compatibility. Super red LED color provides distinct visibility. Compact industrial size supports versatile installations. Low power consumption reduces energy costs. Wide operating temperature range ensures durability.

High peak forward current capability supports dynamic display needs. Grey face and diffused segments improve display clarity. Compliant with major safety and environmental standards. Ideal for industrial and commercial electronic devices.
