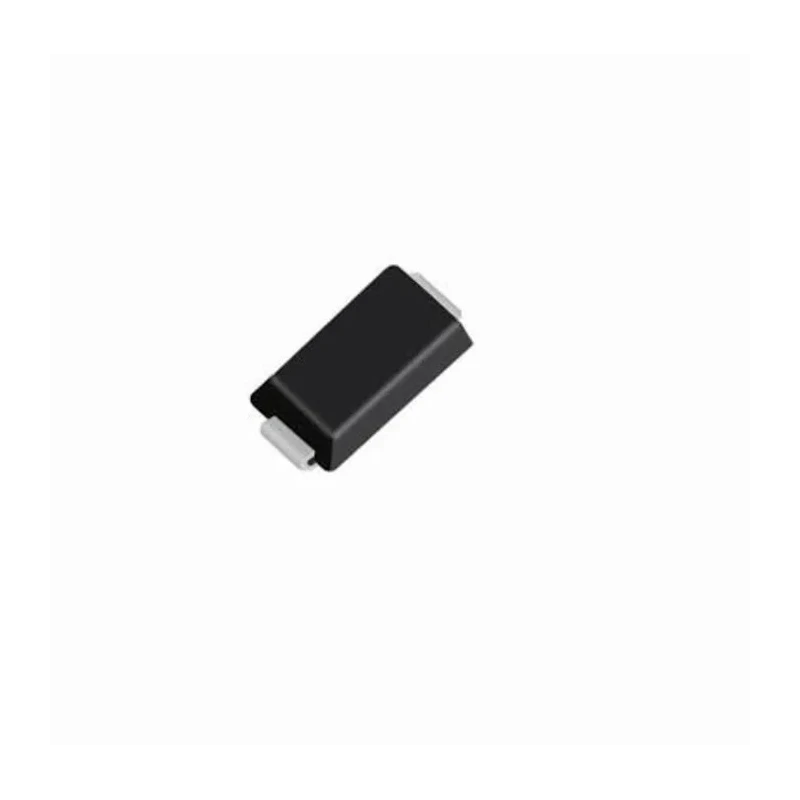

DiodesZetex 1 kV 1 A Fast Recovery Surface Mount Diode DO-219AA FRS1MEQ-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 1 kV 1 A Fast Recovery Surface Mount Diode DO-219AA FRS1MEQ-7

Name: DiodesZetex 1 kV 1 A Fast Recovery Surface Mount Diode DO-219AA FRS1MEQ-7
Brand: DiodesZetex
SKU: 171159
Price: 0.13 USD
Availability: InStock



Category Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.2mm
Length	3.9mm
Model	FRS1MEQ-7
Width	2mm
Mount Type	Surface
Series	FRS1MEQ
Maximum Operating Temperature	105°C
Package Type	DO-219AA
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	1kV
Diode Configuration	Single
Rectifier Type	Fast Recovery
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	1.3V
Peak Reverse Recovery Time trr	500ns

Key Features

Maximum continuous forward current of 1 Ampere ensures robust performance.
Peak reverse repetitive voltage rating of 1 kiloVolt enhances reliability.
Fast recovery time of 500 nanoseconds suits ultrafast AC-AC and DC-DC converters.
Compact DO-219AA package with dimensions 3.9 mm length, 2 mm width, and 1.2 mm height.
Operates efficiently within a temperature range from -55°C to 105°C.
Low peak reverse current of 200 microamperes minimizes leakage losses.
Capable of handling peak non-repetitive forward surge current of 30 Amperes.
Glass passivated die and surface mount design ensure durability and ease of PCB integration.

Product Description

DiodesZetex FRS1MEQ-7 is a high-performance fast recovery diode designed for surface mount applications, particularly suitable for power factor correction and secondary rectification in consumer electronics. Featuring a maximum continuous forward current of 1 Ampere and a peak reverse repetitive voltage of 1 kiloVolt, this diode delivers reliable and efficient operation in demanding electrical environments.

The diode's fast recovery time of 500 nanoseconds supports ultrafast switching speeds essential in AC-AC and DC-DC conversion circuits. Packaged in a low-profile DO-219AA form factor measuring 3.9 mm in length, 2 mm in width, and 1.2 mm in height, it facilitates space-saving PCB layouts.

Designed for temperature ranges from -55°C to 105°C, it ensures consistent performance across harsh industrial and automotive environments. Its glass passivated die construction contributes to its low leakage current, further enhancing efficiency.

This diode can handle peak non-repetitive forward surges up to 30 Amperes, making it robust against transient conditions in power electronics. Additionally, compliance with the automotive standard AEC-Q101 signifies its suitability for automotive electrical applications where quality and reliability are critical.

Common industrial use cases include power management in electronic devices, automotive electronics, consumer appliances, and power supply designs requiring fast rectification and switching capabilities.

Maximum continuous forward current of 1 Ampere. Peak reverse repetitive voltage of 1 kiloVolt. Fast recovery time of 500 nanoseconds. Low leakage current due to glass passivated die. Compact DO-219AA package for surface mounting.

Operating temperature range from -55°C to 105°C. Peak non-repetitive forward surge current of 30 Amperes. Complies with AEC-Q101 automotive standard.
