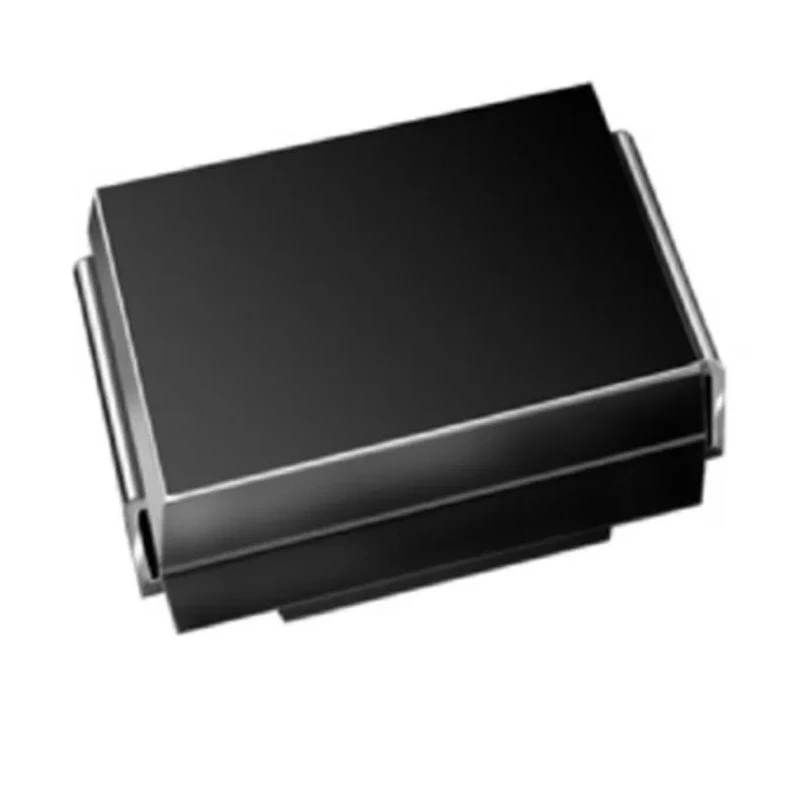

Vishay 1-Element Uni-Directional and Bi-Directional TVS Diode 600 W Peak Pulse Power, 2-Pin DO-214AA SMB SMBJ24CAHE3_A/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | SMBJ24CAHE3_A/H |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA (SMB) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 26.7V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional, Bi-Directional |
| Minimum Breakdown Voltage Vbr | 26.7V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 15.4A |
| Maximum Reverse Leakage Current | 1μA |
| Repetitive rate (duty-cycle) | 0.01 % |
Key Features
- Uni-directional and bi-directional diode configuration ensures versatile transient voltage suppression.
- 600 W peak pulse power dissipation rating supports high transient energy events.
- Compact surface mount DO-214AA (SMB) package measuring 4.57mm x 3.94mm x 2.24mm.
- Clamping voltage of 26.7 V with a minimum breakdown voltage of 26.7 V ensures effective surge protection.
- Wide operating temperature range from -55°C to 150°C for reliable performance in harsh conditions.
- Maximum peak pulse current rating of 15.4 A with low maximum reverse leakage current of 1 μA.
- Designed to withstand repetitive rate duty-cycle of 0.01% enabling durable protection over time.
- Automotive-grade quality certified to AEC-Q101 standard.
Product Description
Vishay SMBJ24CAHE3_A/H is a 1-element uni-directional and bi-directional TVS diode designed for transient voltage suppression in sensitive electronic circuits. It features a peak pulse power dissipation of 600 W, making it capable of handling high-energy transient events.
The diode is housed in a compact DO-214AA SMB surface-mount package with dimensions 4.57 mm length, 3.94 mm width, and 2.24 mm height, allowing integration in space-constrained PCB layouts.
This TVS diode operates reliably over a wide temperature range from -55°C to 150°C, supporting applications in industrial, telecommunications, automotive, consumer electronics, and computer sectors. It offers a minimum breakdown voltage of 26.7 V and a clamping voltage of 26.7 V, ensuring precise voltage suppression to protect downstream components.
The maximum peak pulse current is rated at 15.4 A with a minimal maximum reverse leakage current of 1 μA, enhancing energy handling capabilities with low standby loss. The diode also supports a repetitive rate duty cycle of 0.01%, ensuring longevity in surge environments.
Certified to meet automotive standards AEC-Q101, the SMBJ24CAHE3_A/H model is ideal for protecting ICs, MOSFETs, signal lines, sensor units, and other sensitive electronics against voltage transients caused by inductive load switching, ESD, and lighting surges.
Uni-directional and bi-directional diode configuration for flexible transient suppression. 600 W peak pulse power dissipation capacity. Compact surface-mount DO-214AA SMB package for PCB integration. Effective clamping at 26.7 V for protecting sensitive electronics.
Wide operating temperature range from -55°C to 150°C. Low reverse leakage current of 1 μA ensures energy efficiency. Repetitive rate duty-cycle of 0.01% for durable performance. Automotive-grade quality with AEC-Q101 certification.
Suitable for industrial, telecommunications, automotive, consumer, and computing applications. Explore our comprehensive catalog of TVS Diodes and related semiconductor components at EnvMart for advanced protection solutions in your electronic designs.
