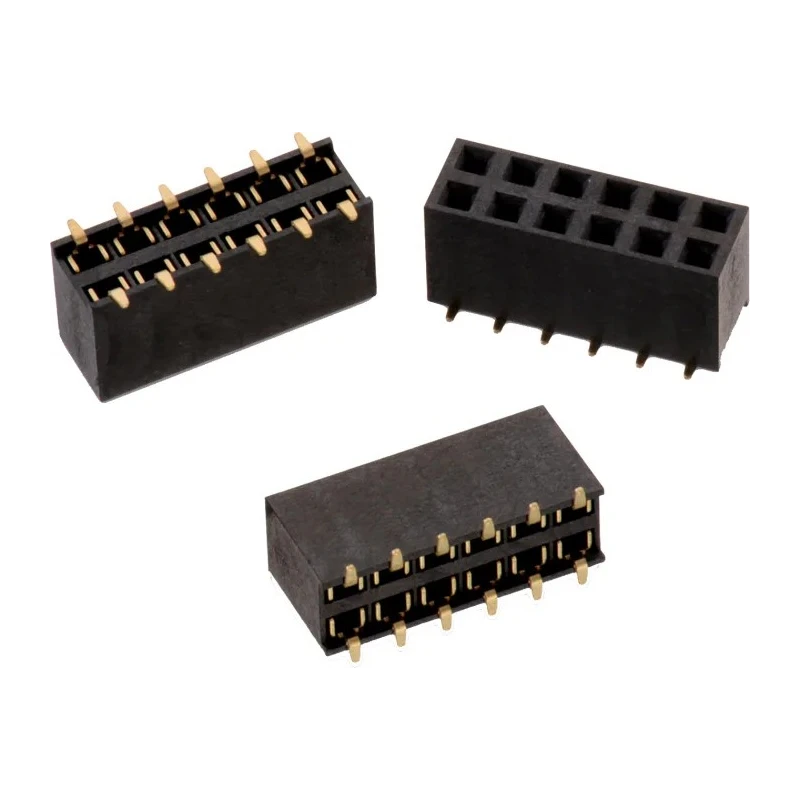

Wurth Elektronik WR-PHD Series Straight Surface PCB Socket, 14-Contact, 2 Row, 2.54 mm Pitch, 500V 3A 61001421821
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25mating cycles |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Flammability Rating | UL94 V-0 |
| Connector System | Board-to-Board |
| Insulator Material | PA9T |
Key Features
- 14-contact socket for board-to-board connections.
- Dual row, straight orientation for precise surface mounting.
- 2.54 mm pitch ensures compatibility with standard PCB layouts.
- Rated for 500V and 3A, suitable for various electronic circuits.
- Gold-plated copper alloy contacts for high conductivity and corrosion resistance.
- PA9T insulator material with UL94 V-0 flammability rating.
- Supports operating temperatures from -40°C to 125°C.
- Durability up to 25 mating cycles for reliable performance.
Product Description
Wurth Elektronik 61001421821 WR-PHD Series Straight Surface PCB Socket offers a robust solution for board-to-board connectivity in electronic applications. Featuring 14 gold-plated copper alloy contacts arranged in two rows with a 2.54 mm pitch, this socket ensures reliable electrical performance and compatibility with standard PCB layouts.
This WR-PHD series socket is rated for a maximum voltage of 500V and a current capacity of 3A, making it ideal for signals and moderate power transmission. It is constructed with PA9T insulator material, providing enhanced thermal and mechanical properties, as well as a flammability rating of UL94 V-0 for safety and compliance.
The socket is surface mountable and designed with a straight orientation, simplifying assembly and maintaining accurate positioning on the PCB. Gold-plated contact surfaces achieve superior conductivity and resistance to corrosion, ensuring stable connections over time. The durability rating enables up to 25 mating cycles, supporting maintenance and replacement needs in industrial and laboratory setups.
14 contacts in dual row configuration. 2.54 mm contact pitch for standard PCB compatibility. Surface mount design with straight orientation. Rated at 500V voltage and 3A current. Gold-plated copper alloy contacts with PA9T insulator.
Operating temperature range from -40°C to 125°C. UL94 V-0 flammability rating for insulator safety. Durability of 25 mating cycles.
This socket meets demanding requirements for electronic, laboratory, and industrial applications, including manufacturing, automation, and instrumentation systems where secure and reliable PCB interconnections are critical. Its high-performance materials and compliance features make it suitable for commercial electronics, prototyping, and assembly environments.
Discover more PCB sockets and connectors from Wurth Elektronik in the Electronics & Electricals > Electronics Components > PCB Socket category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this PCB socket is 500V.
This model features 14 contacts arranged in a dual row configuration.
It has a current capacity of 3A, suitable for moderate power transmission.
The contact pitch is 2.54 mm, ensuring compatibility with standard PCB layouts.
The contacts are made from gold-plated copper alloy, which enhances conductivity and corrosion resistance.
It supports an operating temperature range from -40°C to 125°C.
The insulator material has a UL94 V-0 flammability rating, indicating a high level of safety compliance.
It is rated for up to 25 mating cycles, providing reliability in connections.
This socket is designed for surface mounting, simplifying assembly on PCBs.
The insulator material is PA9T, which offers enhanced thermal and mechanical properties.
It is suitable for various electronic applications, including manufacturing, automation, and instrumentation systems.
The country of origin for this PCB socket is Taiwan.
