| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.6mm |
| Length | 2.5mm |
| Model | PLZ22D-HG3_A/H |
| Mount Type | Surface |
| Series | PLZ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-219AC (MicroSMF) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 200nA |
| Nominal Zener Voltage Vz | 22.63V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 30Ω |

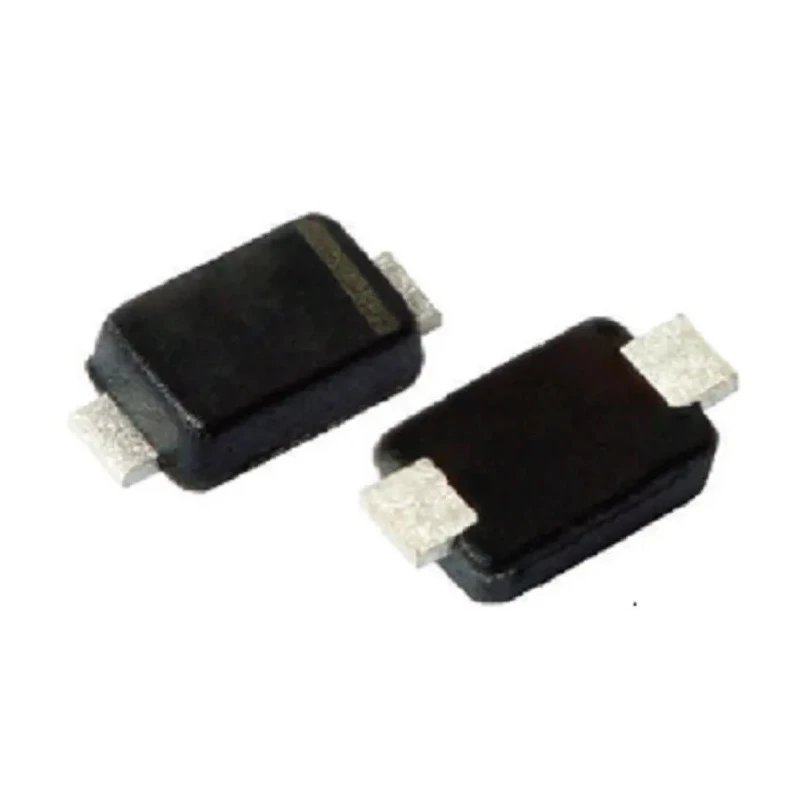

Vishay PLZ22D-HG3_A/H is a high-performance single Zener diode suitable for voltage regulation and protection in electronic and electrical applications. It features a nominal Zener voltage of 22.63 V and a maximum power dissipation rating of 500 milliwatts, making it suitable for precise voltage stabilization.
This diode is housed in an ultra-small MicroSMF DO-219AC surface mount package with only two pins, allowing for compact PCB layouts especially critical in modern electronics engineering. Its silicon planar construction guarantees low leakage current and excellent stability over time.
The device operates reliably across a wide temperature range from -55°C to 150°C, suitable for automotive, industrial, and consumer electronics applications. With a test current of 5 mA and maximum Zener impedance of 30 ohms, it ensures consistent performance under specified conditions.
Additionally, the PLZ series complies with IEC 61000-4-2 and IEC 61760-1 standards and has received RoHS certification, confirming its adherence to international quality and environmental requirements. The AEC-Q101 automotive standard certification underlines its robustness for automotive system integration.
This product is ideal for use in industrial electronics, power supply modules, instrumentation, and automotive electronics where precise voltage reference and protection are necessary.
Nominal Zener voltage of 22.63 volts ensures precise voltage stabilization. Maximum power dissipation of 500 mW supports reliable performance under moderate load. Surface mount package DO-219AC (MicroSMF) offers ultra-small size for compact designs.
Low leakage current provides excellent stability and efficiency in operation. Wide operating temperature range from -55°C to 150°C supports harsh conditions. Test current set at 5 mA optimizes device performance. Complies with IEC 61000-4-2, IEC 61760-1, and RoHS standards for quality and environmental safety.
Automotive grade with AEC-Q101 qualification ensures durability.
