TE Connectivity Free Height Series Straight Surface PCB Socket, 120-Contact, 2 Row, 0.8 mm Pitch 5177983-5

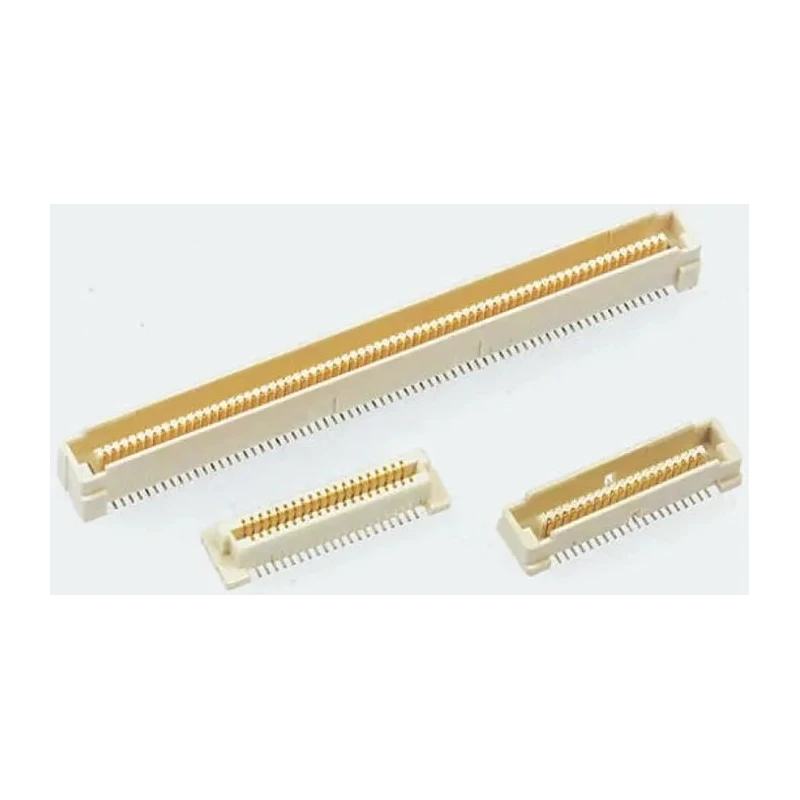

TE Connectivity 5177983-5 Free Height Series Straight Surface PCB Socket is a high-density, 120-contact, 2-row PCB connector designed with 0.8 mm pitch solder termination. The housing is made from liquid crystal polymer, providing strong mechanical and thermal properties. This PCB socket is intended for board-to-board connections in compact electronic assemblies.

The connector supports a maximum current of 500mA and voltage of 100V, suitable for low power electronic device interfaces. Its surface mount design and straight orientation streamline PCB assembly processes. The contact material, beryllium copper alloy plated with gold, provides low resistance and superior corrosion resistance, ensuring reliable electrical performance.

Operating in a temperature range from -40°C to 125°C, this socket meets demanding industrial and consumer electronics environmental conditions. The design incorporates polarization features to prevent incorrect mating and PCB positioning bosses to aid in precise placement during manufacturing.

The bellows type spring contacts resist damage from scooping and stubbing during repeated connections, enhancing product durability. Typical applications include notebook PCs, pen pads, mobile phones, and other miniature electronic equipment requiring compact, high-density board-to-board connectors.

This PCB socket features a liquid crystal polymer housing for enhanced durability. It supports a current rating of 500mA and maximum voltage of 100V. The connector system is board-to-board with surface mount for reliable installation.

The contact material is beryllium copper alloy plated with gold for superior conductivity. Operates reliably between -40°C and 125°C, suitable for various electronics applications. It includes polarization and PCB positioning bosses for accurate placement.

Designed for miniature packaging in devices like notebook PCs and mobile phones. The bellows type spring contact design ensures robust mating and unmating cycles. This product is ideal for industrial, electronics manufacturing, computing, telecommunications, and consumer electronics applications requiring a compact and reliable PCB socket.
