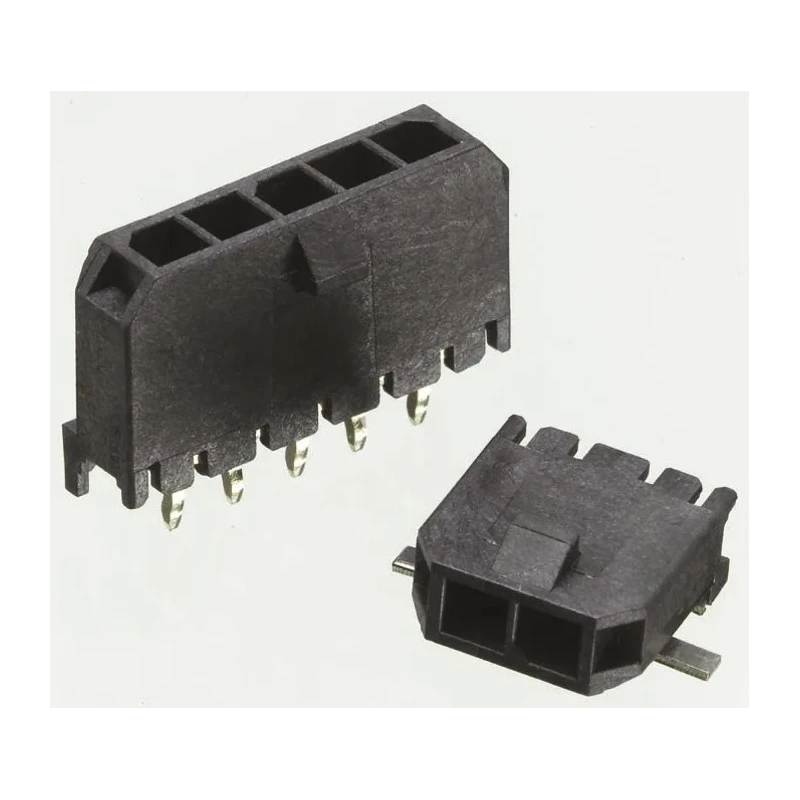

Molex Micro-Fit 3.0 Series Vertical Surface PCB Header 5 Contacts 3 mm Pitch 1 Row Shrouded 43650-0524

Molex 43650-0524 Micro-Fit 3.0 Series Vertical Surface PCB Header is a durable and compact power connector designed for wire-to-board applications. Featuring 5 contacts arranged in a single row with a 3 mm pitch, this header supports a current carrying capacity of 5A, making it ideal for low to mid-range power distribution tasks in industrial, telecommunications, consumer electronics, and medical equipment.

The housing is thermoplastic, rated for high temperatures and compliant with Glow Wire standards, allowing it to withstand soldering processes up to 265°C. Its vertical orientation, shrouded design, and positive locking ramp ensure secure mating connections and prevent accidental disconnection during operation.

The brass contacts with tin plating provide excellent electrical conductivity and resistance against corrosion. The solder tabs incorporated in the design facilitate robust surface mount connection to printed circuit boards, enhancing mechanical stability and electrical reliability.

Operating over a wide temperature range from -40°C to 105°C, this PCB header is engineered for demanding environments encountered in military COTS, solar power systems, consumer appliances like dryers and refrigerators, data communication networks including routers and servers, as well as gaming terminals.

Micro-Fit 3.0 connectors from Molex are known for their compact footprint combined with high current carrying ability and reliable locking mechanisms. This connector series supports manufacturers and designers in creating efficient, safe, and rugged electronic devices and assemblies.

Compact power connector system suitable for low to mid-range power distribution applications. Supports up to 5A current capacity with high temperature thermoplastic housing. Shrouded design with positive latching for secure mating and prevention of accidental disconnections.

Surface mount type with solder tabs for secure PCB mounting. Brass contacts plated with tin provide reliable electrical performance. Operating temperature range from -40°C to 105°C for varied environmental conditions. Single row with 3 mm pitch ensures efficient space utilization on PCB layouts.

Fully isolated dual beam terminals reduce arcing and improve contact reliability. Suitable for use in military, solar power, consumer products, medical, telecommunications, and gaming terminal applications.

This Pixelated header is a key component for PCB connector assemblies typically used in industrial, laboratory, manufacturing, and electronic consumer equipment sectors. For additional technical details and design assistance, exploring the entire Molex Micro-Fit 3.0 Series can provide comprehensive system integration solutions. Discover more PCB Headers and connectors by browsing the Electronics Components category at EnvMart.
