TDK Flange EMC Filter 80 A 440V ac 50Hz, 60 Hz, Tab Termination 3 Phase B84144A0080R000

Free Delivery in India | Lowest Global Shipping Charges

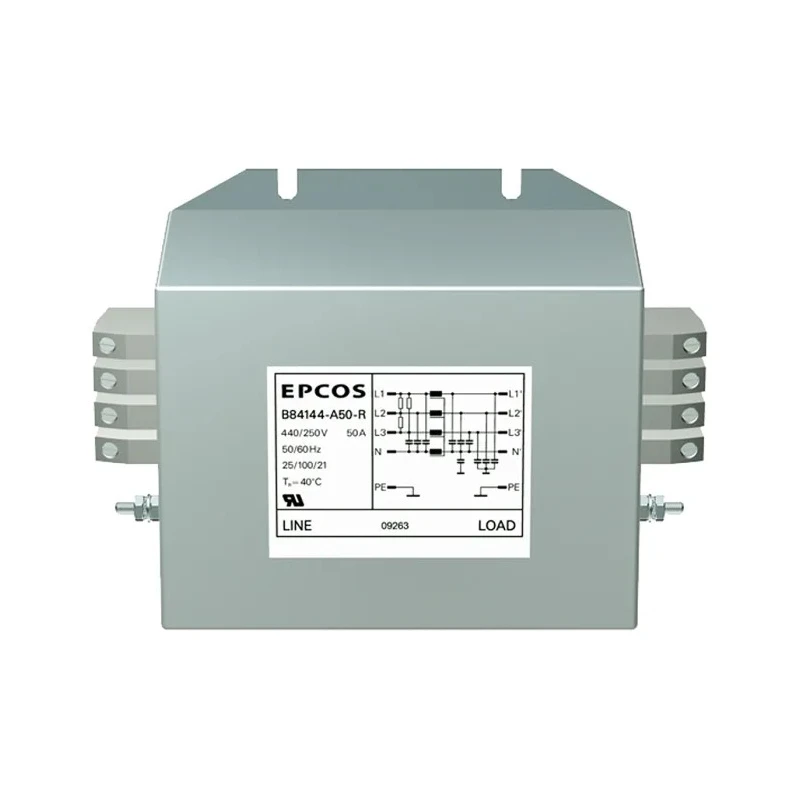

TDK Flange EMC Filter 80 A 440V ac 50Hz, 60 Hz, Tab Termination 3 Phase B84144A0080R000



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	141mm
Length	171mm
Model	B84144A0080R000
Depth	300mm
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	B84144A*R000
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	700Ω
Minimum Operating Temperature	-25°C
Maximum Current	80A
Number of Phases	3
Leakage Current	8.8mA
Maximum Voltage	440V ac
Standards/Approvals	UL 1283
Termination Style	Tab

Key Features

Constructed with a metal case for robust durability and RF-tight installation.
Flange mount type with tab termination for secure connections.
Operates efficiently at 50Hz and 60Hz frequencies.
Optimized to reduce leakage current to 8.8mA for safety and efficiency.
Capable of withstanding minimum operating temperature of -25°C and maximum of 100°C.
Rated resistance of 700Ω ensures effective EMI filtering performance.
Complies with UL 1283 and CSA 22.2 No.8 1986 standards for safety and reliability.
Ideal for power electronics applications such as wind farms, UPS, machine tools, textile, and packaging machines.

Product Description

TDK B84144A0080R000 Flange EMC Filter is engineered for high-performance EMI filtering in industrial and electronic power applications. Designed to handle a maximum current of 80 A and voltage of 440V AC, it is suitable for 3 phase systems operating at 50Hz and 60Hz frequency ranges.

This EMC Filter comes in a robust metal case with threaded bushes for RF-tight installation and space-saving flange mounting. The tab termination style facilitates secure and reliable electrical connections.

Featuring a low leakage current of 8.8 mA, this filter supports safe and efficient operation over a wide temperature range from -25°C up to 100°C. Physically compact with dimensions of 171mm (L) x 141mm (H) x 300mm (D), it fits well in power electronics units where space optimization is critical.

The filter offers a resistance rating of 700Ω, ensuring high insertion loss and optimal EMI suppression. It adheres to industry safety standards including UL 1283 and CSA 22.2 No.8 1986, assuring quality and reliability for demanding applications.

This product finds broad applications in power electronic devices including wind farms, uninterruptible power supplies (UPS), machine tools, textile manufacturing, and packaging machinery. Its design supports converters and power electronics usage in industrial settings.

Constructed of a metal case with threaded bushes at end faces for RF-tight installation. Flange mounting and tab type termination for space saving and ease of installation. Optimized leakage current of 8.8mA enhances safety.

Compliant with UL1283 and CSA 22.2 No.8 standards. Suitable for general power electronics, wind farms, UPS, machine tools, textile and packaging machines. This high-quality EMC filter is manufactured in China and guarantees new product condition.
