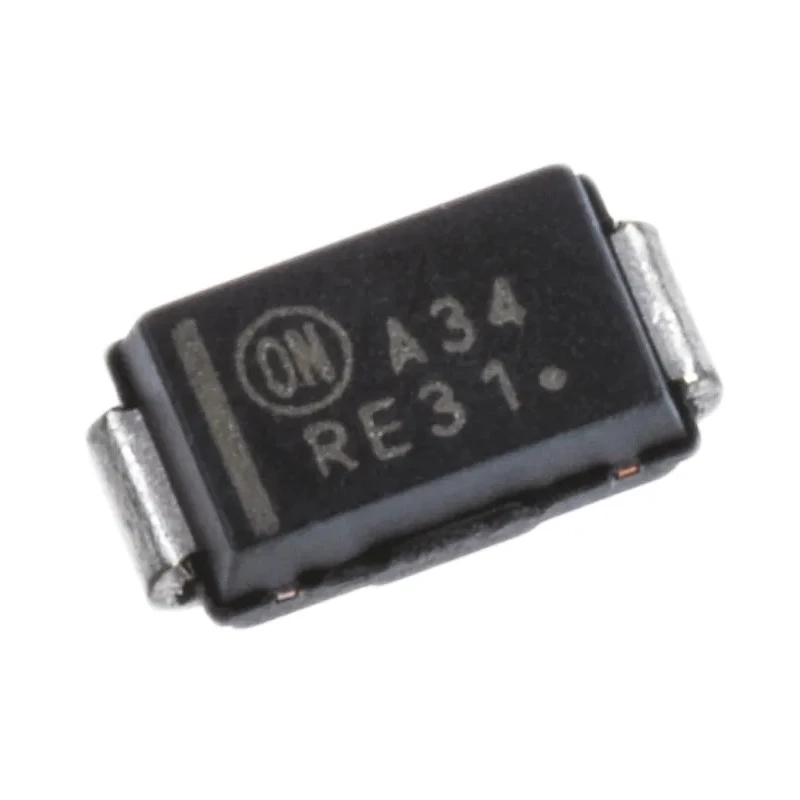

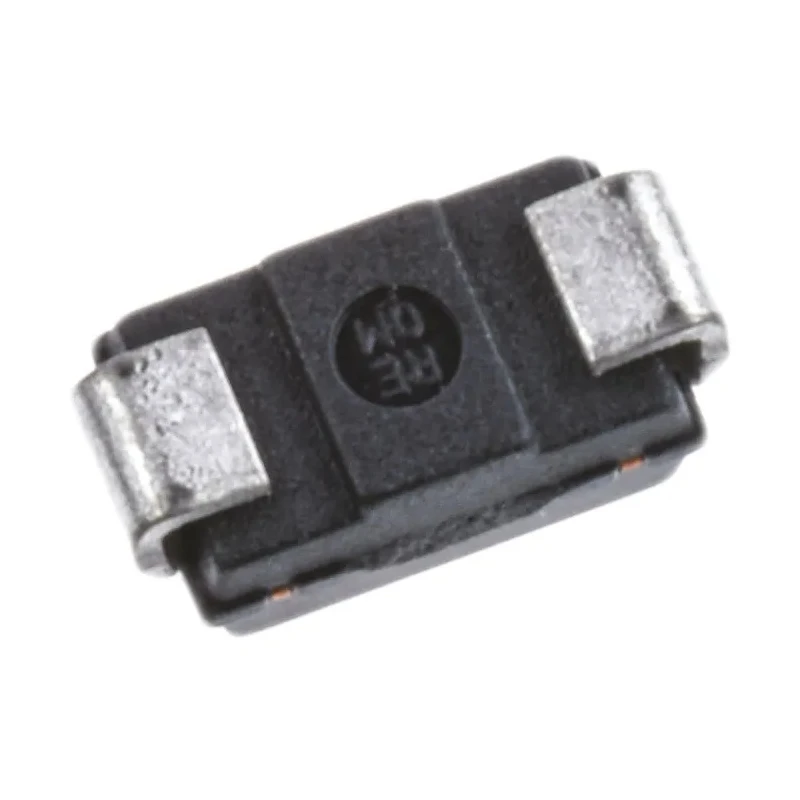

onsemi Surface Mount Schottky Diode 40 V 3 A, 2-Pin DO-214AC MBRA340T3G

onsemi MBRA340T3G is a Schottky barrier diode in a compact 2-pin DO-214AC surface mount package. It employs a barrier metal design for optimal low forward voltage drop and reduced reverse current, making it suitable for high-frequency rectification and polarity protection. The robust construction ensures reliable operation across a broad temperature range from -55°C to 150°C. This diode supports a maximum continuous forward current of 3 A and withstands peak reverse voltages up to 40 V.

Its epoxy moulded case and lightweight design (approximately 11.7 mg) render it ideal for automated PCB assembly and applications where size and weight are critical. The MBRA340T3G is qualified to automotive standard AEC-Q101, emphasizing quality and durability for automotive electronics and industrial use.

The device features a low forward voltage drop of 450 mV and has low leakage current characteristics, with a peak reverse current of only 300 μA. Additionally, it supports a peak non-repetitive forward surge current rating of 100 A, enabling it to handle transient current spikes effectively.

Dimensions include a length of 4.32 mm, width of 2.6 mm, and height of 2 mm, suitable for dense circuit board layouts. Its 2-pin configuration facilitates easy integration in surface mounted applications.

Typical applications encompass use as a high-frequency rectifier, freewheeling diode in power conversion circuits, and polarity protection diode in automotive, industrial, and consumer electronics.

The MBRA340T3G diode supports manufacturing environments requiring efficient assembly and reliable component performance, aligning with rigorous quality standards. Compact surface mount package type DO-214AC measuring 4.32 mm length.

Maximum continuous forward current of 3 amperes with 40 volts peak reverse voltage. Low forward voltage drop of 450 mV ensures efficient rectification. Wide operating temperature range from -55°C to 150°C for reliability.

Constructed with epoxy moulded lightweight package weighing approximately 11.7 mg. Features automotive grade AEC-Q101 qualification. Low peak reverse current of 300 μA and high peak surge current of 100 A. Applications include high-frequency rectification, polarity protection, and freewheeling diode roles.

Measured width of 2.6 mm and height of 2 mm, ideal for compact electronics. Explore onsemi and other semiconductor products for industrial, automotive, and electronic component needs at EnvMart.
