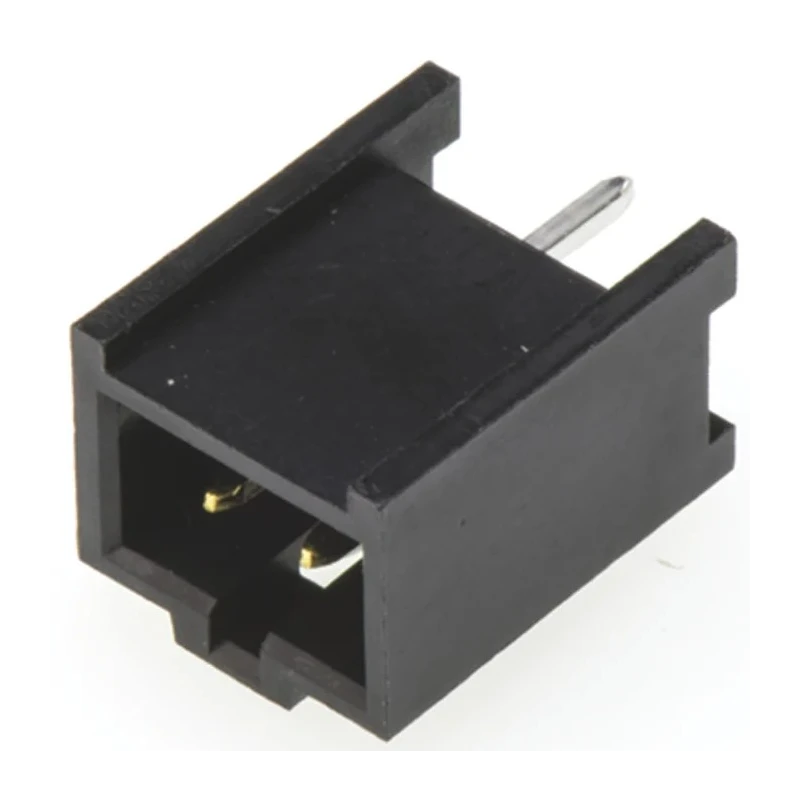

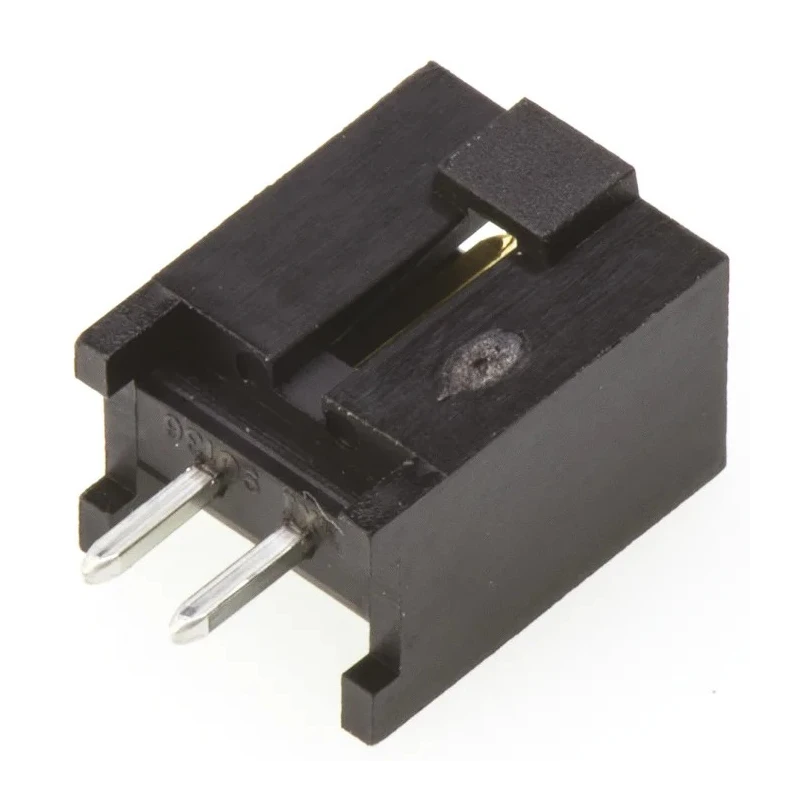

Molex C-Grid III Series Straight Through Hole PCB Header 2 Contacts 2.54 mm Pitch 1 Row Shrouded 90136-1202
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- This shrouded header features a single row design for compact PCB mounting.
- The contact material is brass with gold plating to ensure optimal conductivity.
- It supports a rated current of 3 amperes and a voltage of 350 volts.
- Designed for through-hole mounting with solder termination for secure attachment.
- Operates reliably between -55°C and 125°C temperature range.
- The connector pitch and row pitch are both 2.54 mm, suitable for standard PCB layouts.
- Includes male contact gender with a tail pin length of 2.9 mm and mating pin length of 6.75 mm.
- Housing is made from durable polyester and the product is manufactured in Malaysia.
Product Description
Molex 90136-1202 is a C-Grid III Series Straight Through Hole PCB Header designed for industrial and electronic applications requiring wire-to-board connections.
This connector features 2 contacts arranged in a single row with a standard 2.54 mm pitch and shrouded design to enhance connection security and prevent misalignment during assembly.
The contact material is brass, plated with gold to enhance corrosion resistance and electrical conductivity, rated for a current of 3 amperes and voltage up to 350 volts, suitable for a wide range of low to moderate power applications.
The through-hole mount type ensures sturdy mechanical attachment and reliable soldering termination. Operating temperature specifications range from -55°C to 125°C, ensuring performance in diverse environmental conditions.
The housing is fabricated from polyester material providing durability and insulation. Contact gender is male with a tail pin length of 2.9 mm and mating pin length of 6.75 mm for proper engagement with compatible connectors.
This PCB header is ideal for use in industrial electronics, telecommunications, instrumentation, and manufacturing environments where dependable PCB interconnection is required. This PCB header supports a rated current of 3A and voltage of 350V.
Compact single row with 2 contacts ensures space-efficient PCB design. Gold-plated brass contacts provide reliable signal and power transmission. Shrouded design enhances connector mating and protection. Operates in extreme temperature ranges from -55°C to 125°C.
Manufactured in Malaysia adhering to quality standards. Explore a wide range of PCB connectors and electronic components in EnvMart’s Electronics & Electricals category to complement your PCB Header needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB header is 3 amperes.
This header has a voltage rating of 350 volts.
The pitch of the contacts is 2.54 mm, which is standard for many PCB layouts.
It operates reliably within a temperature range of -55°C to 125°C.
This model uses through-hole mounting with solder termination for secure attachment.
The contacts are made of brass with gold plating, and the housing is made from durable polyester.
This header features 2 contacts arranged in a single row.
The tail pin length is 2.9 mm, ensuring proper engagement with compatible connectors.
The mating pin length is 6.75 mm.
This model is shrouded, which enhances connection security and prevents misalignment during assembly.
It is suitable for industrial electronics, telecommunications, instrumentation, and manufacturing environments.
This PCB header is manufactured in Malaysia.
