| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.3mm |
| Length | 2.8mm |
| Model | PMEG3005EGWX |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | PMEG3005EGW |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Forward Current | IF ≤ 0.5 A |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 500mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 10A |
| Maximum Forward Voltage Vf | 430mV |
| Reverse voltage | VR ≤ 30 V |

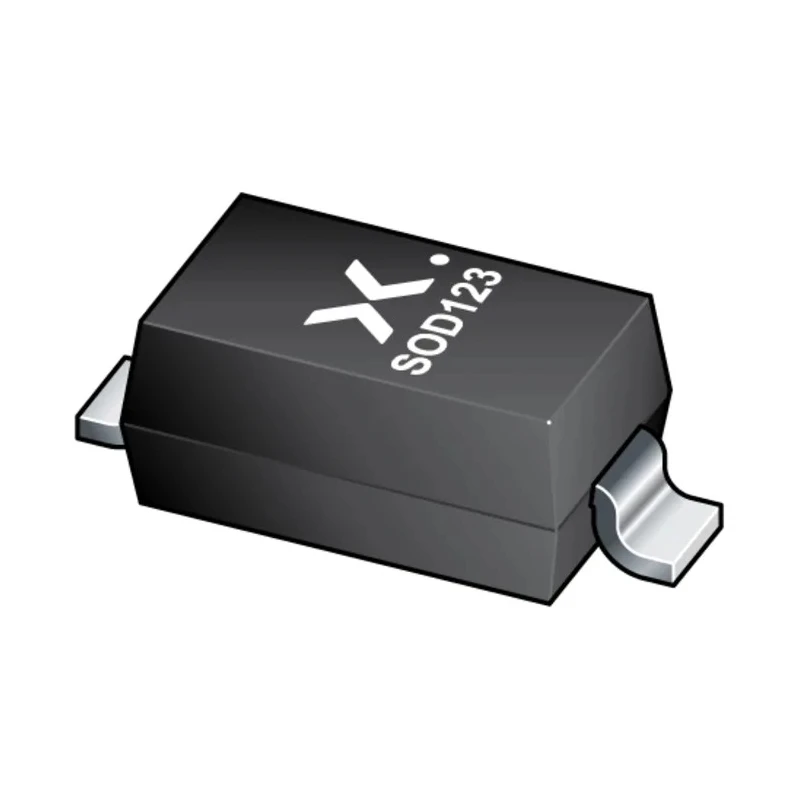

Nexperia PMEG3005EGWX is a Schottky barrier rectifier diode designed for applications requiring low forward voltage drop and high efficiency. Encapsulated in a compact surface-mounted SOD-123 plastic package, this 2-pin diode supports continuous forward current up to 500 mA and can withstand reverse voltages to 30 V.
This device features low forward voltage (typical 380 mV) and low reverse current (typical 40 µA), making it suitable for low power consumption applications such as DC-DC converters, switch mode power supplies, and reverse polarity protection circuits. The integrated guard ring offers added reliability by protecting against electrical stress.
The diode is automotive grade, AEC-Q101 qualified, with an operating temperature encompassing -55°C up to 150°C, thus making it robust for automotive electronics. Dimensionally, the SOD-123 package measures 2.8 mm in length, 1.7 mm in width, and 1.3 mm in height, contributing to compact designs on PCBs.
Maximum forward continuous current of 0.5 A ensures reliable operation under normal load conditions. Peak reverse repetitive voltage rating of 30 V supports moderate voltage blocking needs. Low forward voltage drop reduces power loss and improves overall circuit efficiency.
AEC-Q101 qualification assures compliance with automotive quality standards. Compact surface mount package enables space-efficient circuit board layout. Wide operating temperature range suitable for various environmental conditions.
Ideal for automotive, industrial, and general-purpose power rectification uses. Used in applications like DC-DC conversion, power management, and reverse polarity protection.
This technical diode meets requirements for industrial and automotive electronics manufacturing and repairs. Browse the Schottky Diodes & Rectifiers category on EnvMart for compatible products and advanced semiconductor components.
