| Country of Origin | Philippines |
|---|---|
| Brand | Nexperia |
| Height | 2.6mm |
| Length | 4.8mm |
| Model | 1N4742A,113 |
| Mount Type | Through Hole |
| Series | 1N4742A |
| Maximum Operating Temperature | 200°C |
| Package Type | SOD-66 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 21mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 12V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 700Ω |
| onsemi 1, 12 V Zener Diode, Single 1 W 5 % Through Hole 2-Pin DO-41Brand | onsemi |

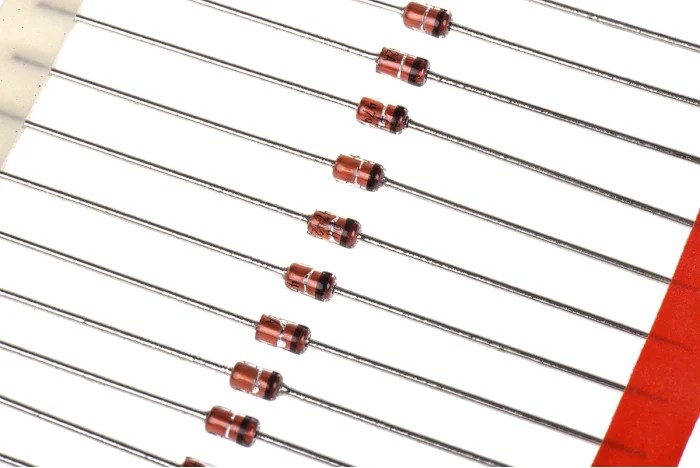

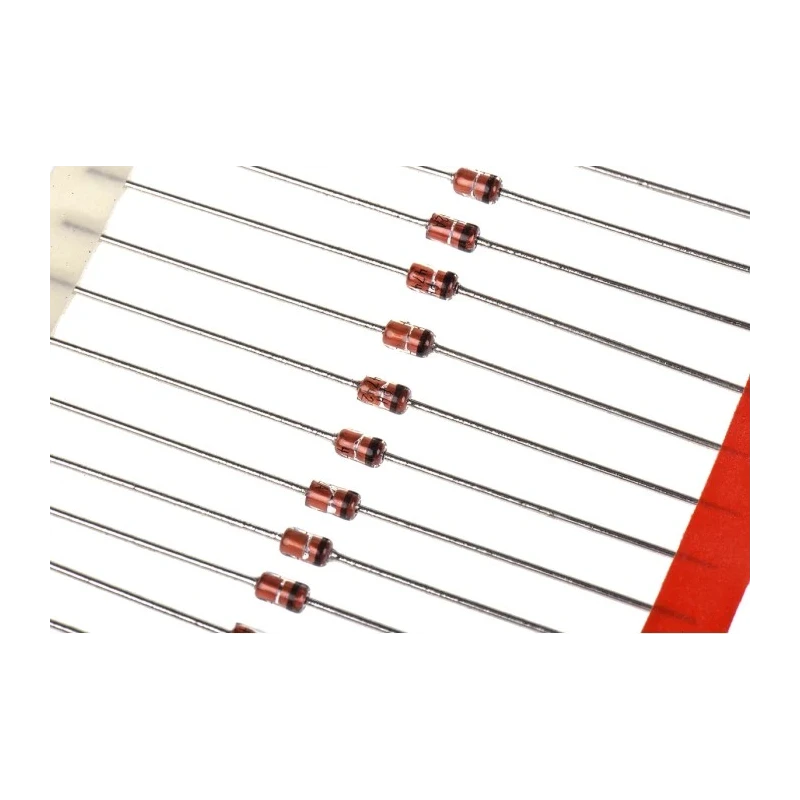

The Nexperia 1N4742A,113 Zener Diode is designed as a voltage regulator diode with a nominal zener voltage of 12 V and power dissipation capacity of 1 W. It features a single diode configuration mounted through hole in a compact 2-pin SOD-66 package ensuring stable voltage regulation in electronic circuits.
This diode supports a test current of 21 mA and operates effectively within a wide temperature range from -65°C to 200°C, making it suitable for various industrial and electronic applications.
With a maximum zener impedance of 700 Ω and reverse leakage current limited to 5 μA, this diode provides stable operation under voltage stress conditions common in semiconductor power regulation.
Its small form factor with a height of 2.6 mm and length of 4.8 mm facilitates integration into dense electronic assemblies. This product is manufactured in the Philippines, ensuring quality control and product consistency.
The diode is ideal for use in voltage regulation circuits in electronics manufacturing, power supply circuits, and other semiconductor applications requiring reliable voltage stabilization.
Single diode configuration for voltage regulation. Nominal Zener voltage of 12 volts with ±5% tolerance. Maximum power dissipation rated at 1 watt for reliable operation. Through hole mounting with 2-pin SOD-66 package type.
Operating temperature range from -65°C to 200°C. Test current of 21 mA ensures consistent performance. Maximum Zener impedance of 700 ohms for voltage stability. Maximum reverse leakage current of 5 microamperes at rated voltage.
This product is part of the Nexperia range available on EnvMart, a trusted source for industrial semiconductor components.
Explore more products in our Zener Diodes category.
