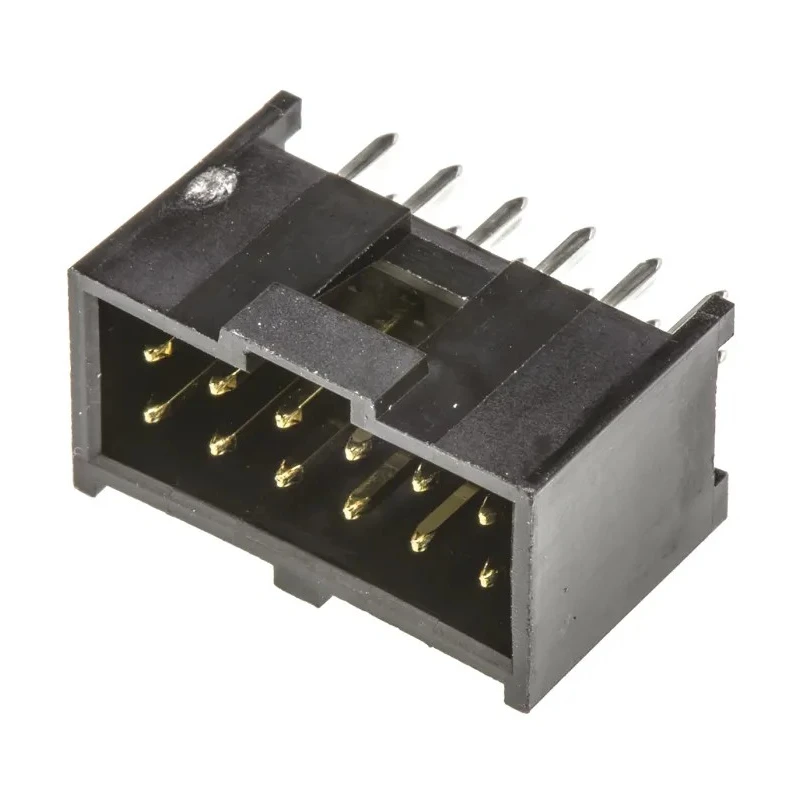

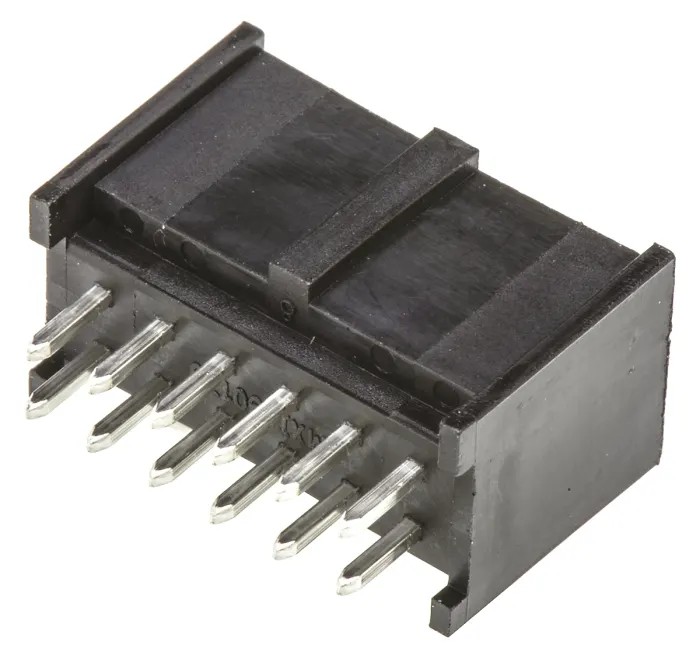

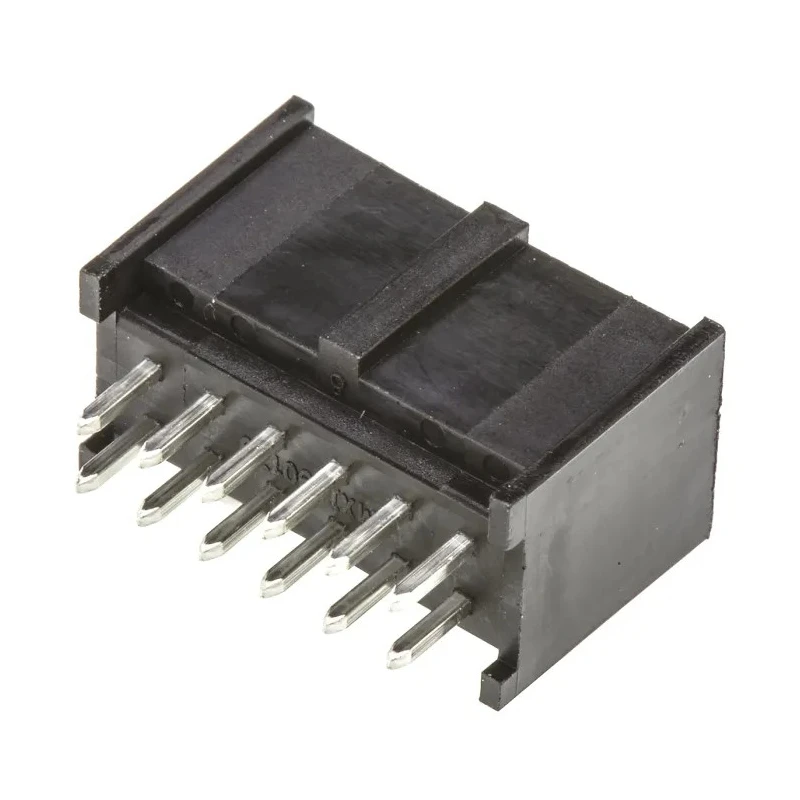

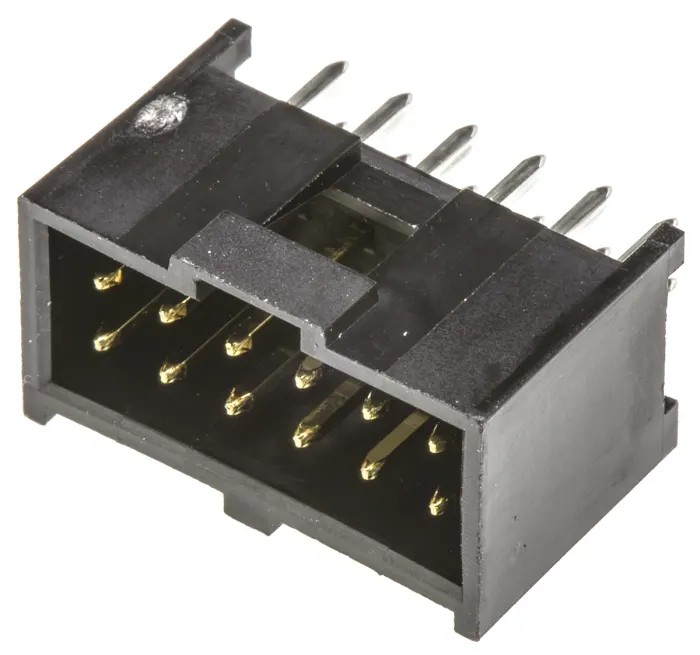

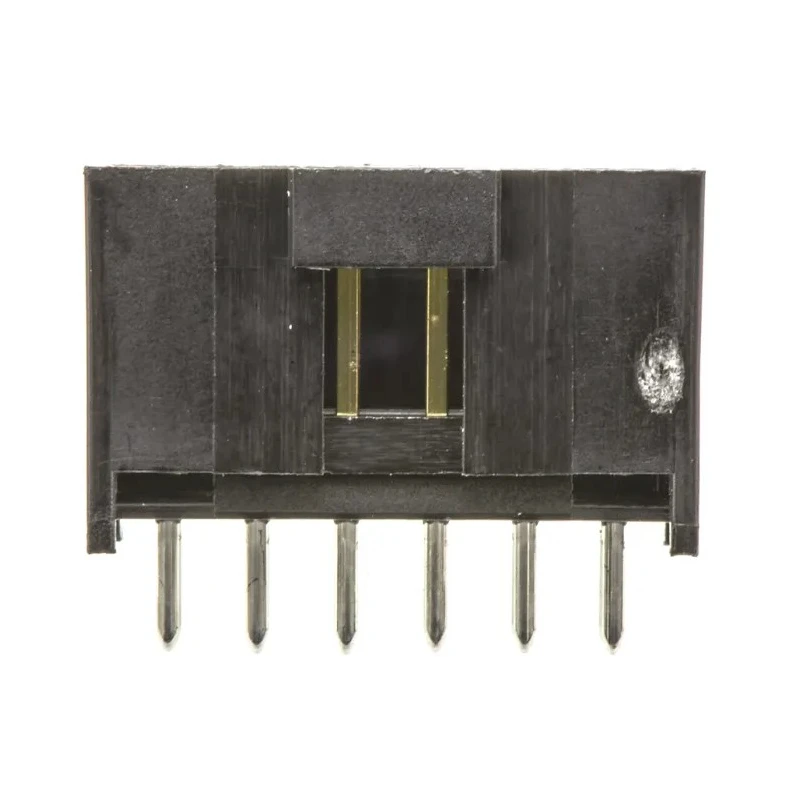

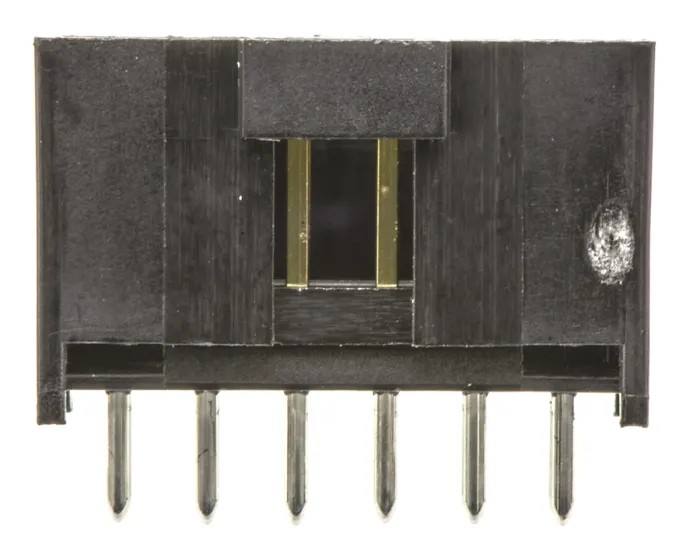

Molex C-Grid III Series Straight Through Hole PCB Header, 12 Contacts, 2.54 mm Pitch, 2 Rows, Shrouded 90130-1212
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- This PCB header supports up to 3A current capacity.
- Constructed with polyester housing for durability and insulation.
- Brass male contacts are gold-plated for enhanced conductivity and corrosion resistance.
- Suitable for wire-to-board connection systems using through-hole mounting.
- Operating temperature ranges from -55°C to 125°C.
- Contact tail pin length is 2.9 mm and mating pin length is 6.75 mm for reliable solder termination.
- Shrouded design ensures secure locking with compatible housings.
- Row pitch matches the 2.54 mm standard pitch for compatibility with standard PCBs.
Product Description
Molex 90130-1212 C-Grid III Series Straight Through Hole PCB Header provides reliable and robust connection for printed circuit boards. The product features a dual-row configuration with 12 male brass contacts plated with gold, ensuring excellent electrical conductivity and resistance to corrosion. Its polyester housing is shrouded, offering protection and secure mating with compatible connectors.
This header is designed for through-hole mounting on PCBs with a standard 2.54 mm pitch, supporting wire-to-board applications in various electronic systems. Rated for a current of 3A and voltage up to 350V, it is suitable for industrial, commercial, and manufacturing usage where reliable PCB connectivity is critical.
Operating temperature ranges from -55°C up to 125°C, making this header suitable for a wide range of environmental conditions. The termination type is solder, with a tail pin length of 2.9 mm and mating pin length of 6.75 mm, providing strong mechanical and electrical connection.
The shrouded housing design facilitates straight mounting orientation and features locking capabilities with compatible housings, reducing accidental disconnection and enhancing durability in use. This product aligns with DIN 41651 and HE13/14 standards for PCB headers.
This PCB header supports up to 3A current capacity. Constructed with polyester housing for durability and insulation. Brass male contacts are gold-plated for enhanced conductivity and corrosion resistance. Suitable for wire-to-board connection systems using through-hole mounting.
Operating temperature ranges from -55°C to 125°C. Contact tail pin length is 2.9 mm and mating pin length is 6.75 mm for reliable solder termination. Voltage rating is 350V, meeting industry standards for PCB connectivity.
Shrouded design ensures secure locking with compatible housings. Row pitch matches the 2.54 mm standard pitch for compatibility with standard PCBs.
This Molex PCB Header is ideal for electronic, industrial, and manufacturing applications requiring dependable PCB connector solutions. Browse our comprehensive electronics components selection at EnvMart for more solutions from Molex and other reputable brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current capacity of up to 3A.
The voltage rating for this model is 350V, making it suitable for various applications.
The operating temperature range for this header is from -55°C to 125°C.
This model is designed for through-hole mounting on printed circuit boards.
The housing is made of polyester, while the contacts are brass with gold plating for enhanced conductivity and corrosion resistance.
This PCB header features 12 male contacts arranged in a dual-row configuration.
The pitch of this model is 2.54 mm, which is a standard size for PCB headers.
The tail pin length for this header's contacts is 2.9 mm.
The mating pin length is 6.75 mm, providing reliable solder termination.
This model is shrouded, which ensures secure locking with compatible housings.
It supports a wire-to-board connection system, suitable for various electronic applications.
This product aligns with DIN 41651 and HE13/14 standards for PCB headers.
