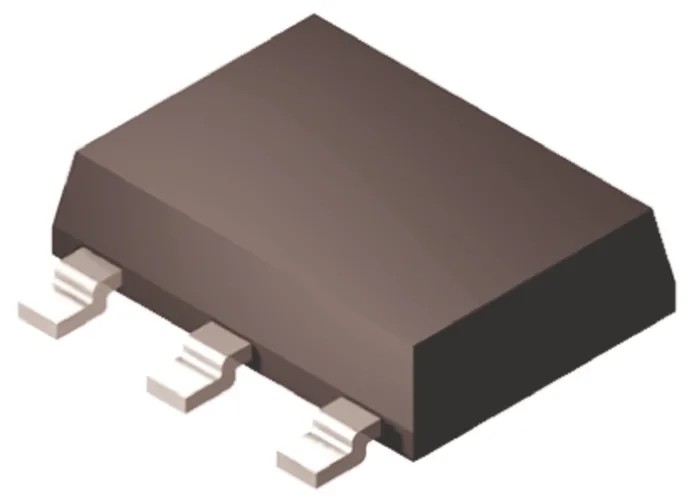

DiodesZetex General Purpose PNP Transistor 5 A, 100 V, 4-Pin SOT-223 FZT953TA

DiodesZetex FZT953TA is a general purpose PNP bipolar transistor designed for electronic applications requiring a maximum collector current of 5 A and maximum collector-emitter voltage of 100 V. Packaged in a compact 4-pin SOT-223 surface mount package, this transistor allows efficient PCB mounting and integration into various electronic circuits.

With a minimum DC current gain of 30, the transistor offers effective amplification in switching and amplification circuits, operating reliably in temperatures ranging from -55°C up to 150°C. The device also supports a maximum power dissipation of 3 W, making it suitable for power handling tasks in various electronic designs.

The maximum transition frequency of 125 MHz enables moderate to high-speed switching applications. The PNP polarity and single transistor configuration makes it compatible with a wide range of bipolar circuit designs.

Designed to meet AEC-Q101 automotive standards, the FZT953TA ensures high quality and reliability in automotive and industrial applications. The transistor's compact dimensions include 6.55 mm length, 7.1 mm width, and 1.65 mm height, facilitating use in space-constrained layouts.

Supports maximum collector current of 5 A. Collector-emitter voltage rating of 100 V ensures voltage handling capability. Surface mount 4-pin SOT-223 package for compact PCB implementation. Minimum current gain (hFE) of 30 for efficient amplification.

Wide operating temperature range from -55°C to 150°C. Power dissipation rating of 3 W for power efficient design. Transition frequency of 125 MHz suitable for switching circuits. PNP transistor configuration compatible with various electronic designs.

Certified to AEC-Q101 automotive quality standards. Compact size ensures minimal PCB footprint.

This bipolar transistor is ideal for use in electronic, automotive, industrial, and manufacturing applications where reliable PNP transistor performance is essential. Its robust specifications and automotive standard compliance make it suitable for high quality, demanding environments. Explore additional DiodesZetex semiconductor components on EnvMart for complementary solutions.
