Semikron Danfoss Power Bridge Rectifier Panel Mount 800 V 35 A 330 A Peak Surge SKB 35/08

Free Delivery in India | Lowest Global Shipping Charges

Semikron Danfoss Power Bridge Rectifier Panel Mount 800 V 35 A 330 A Peak Surge SKB 35/08

Name: Semikron Danfoss Power Bridge Rectifier Panel Mount 800 V 35 A 330 A Peak Surge SKB 35/08
Brand: Semikron Danfoss
SKU: 167978
Price: 29.63 USD
Availability: InStock



Category Bridge Rectifier Brand Semikron Danfoss Condition New

Specifications

Country of Origin	India
Brand	Semikron Danfoss
Model	SKB 35/08
Mount Type	Panel
Series	SKB 35
Maximum Operating Temperature	150°C
Package Type	G-10b
Minimum Operating Temperature	-40°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	5mA
Peak Non-Repetitive Forward Surge Current Ifsm	330A
Forward Current If	35A
Peak Forward Voltage Vf	1.9V
Semikron Bridge Rectifier, 35A, 400V, 4-PinBrand	Semikron

Key Features

Designed for single-phase supplies with high surge current tolerance.
Peak reverse repetitive voltage rating of 800 volts ensures reliable blocking.
Forward current capacity of 35 amperes with peak surge current of 330 amperes.
Maximum operating temperature up to 150°C and minimum operating temperature of -40°C.

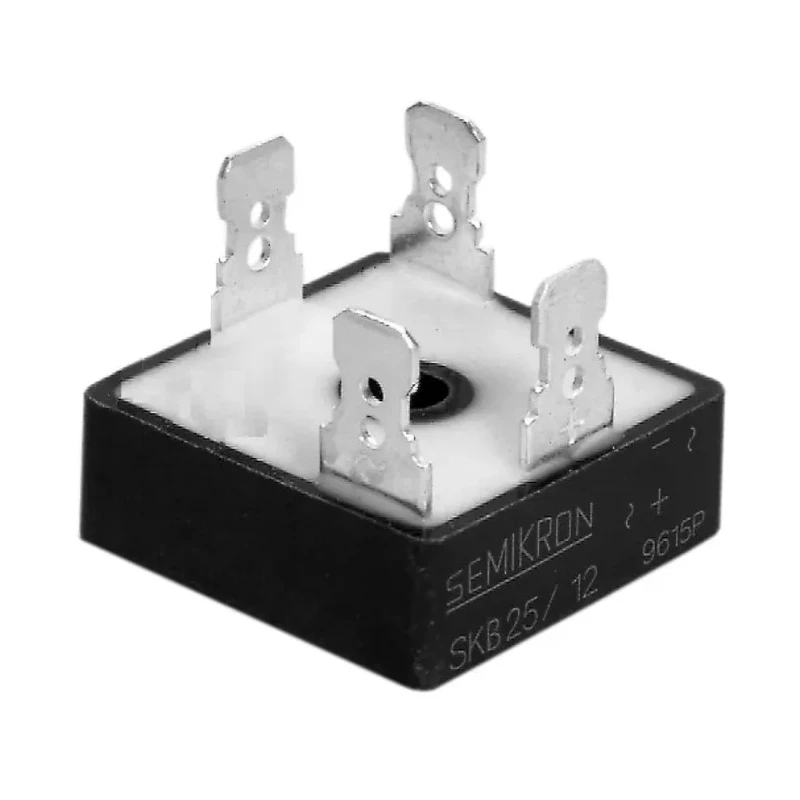

Compact square plastic case with an isolated metal base plate for easy chassis mounting.
Features fast-on connectors and a 4-pin count for straightforward installation.
Typical applications include power supplies, variable frequency drives, battery chargers, and DC motor field supplies.

Product Description

Semikron Danfoss SKB 35/08 Bridge Rectifier is a high-performance power bridge rectifier designed for single-phase supply applications requiring robust voltage and current handling capabilities. This device features a peak reverse repetitive voltage of 800 volts and a forward current rating of 35 amperes, making it suitable for power supply rectification, variable frequency drives, battery charging, and DC motor field supply circuits.

The SKB 35 series incorporates an isolated metal base plate and a durable square plastic casing with panel mount configuration for convenient installation and thermal management. Its compact 4-pin design facilitates efficient electrical connections via fast-on connectors. The maximum operating temperature of this bridge rectifier is rated up to 150°C, with a minimum operating limit of -40°C, ensuring reliable performance across diverse environmental conditions.

With a peak non-repetitive forward surge current of 330 amperes and a low peak forward voltage of 1.9 volts, the product offers high transient tolerance and low conduction losses, enhancing system efficiency. Its peak reverse current is rated at 5 mA, supporting stable operation in power electronics applications.

This bridge rectifier does not carry specific automotive approval standards but complies with industrial-grade specifications suitable for manufacturing, industrial, laboratory and commercial electronics. The G-10b package type and panel mount ensure ease of integration in custom assemblies.

Designed for single-phase power electronic rectification. High reverse voltage blocking and surge current capacity. Robust thermal operating range (-40°C to 150°C). Compact, isolated metal base plate with fast-on connector design.

Applications include power supplies, VFDs, battery chargers, and DC motor controls.

Semikron Danfoss products like the SKB 35/08 series Bridge Rectifier represent reliable semiconductor solutions for electronics and electrical power management, ideal for engineers and designers in industrial and HVAC sectors. Discover more components and accessories in the Electronics & Electricals sections at EnvMart.
