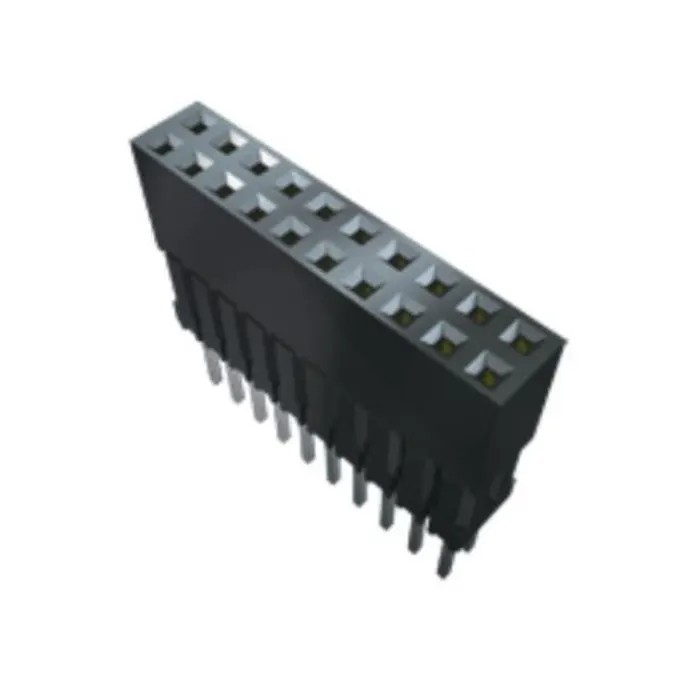

Samtec ESQ Series Vertical Through Hole PCB Socket 10-Contact 2 Row 2.54 mm Pitch Solder ESQ-105-33-L-D

Samtec ESQ-105-33-L-D is a high-quality vertical through-hole PCB socket designed to provide a robust and reliable connection for electronic circuits. Offering 10 contacts arranged in 2 rows with a 2.54 mm pitch, this socket is ideal for industrial, laboratory, and manufacturing environments requiring durable interconnections.

The socket assembly features a black glass filled polyester housing that ensures electrical insulation and mechanical strength under harsh operating conditions. Its phosphor bronze contacts are plated with gold, delivering superior conductivity and corrosion resistance, which is essential for long-term reliability.

Operating at a voltage of 515V and supporting a current capacity of up to 5.7A, the ESQ-105-33-L-D is suited for a broad spectrum of power and signal transmission applications. It withstands extreme temperatures from -55°C to 125°C, making it suitable for demanding environments such as automotive electronics, aerospace instrumentation, and heavy industrial equipment.

The connector system adopts a board-to-board interface with a vertical orientation and through-hole mounting style, facilitating easy installation on printed circuit boards. Its Tiger Buy™ contact system includes standard and low insertion force contacts with square tails optimized for PC/104™ applications, enabling ease of use and reliable connections.

This ESQ series socket supports configurations ranging from single to triple row setups with up to 108 pins, providing flexibility for various design requirements. Termination is performed via soldering to ensure optimal mechanical strength and electrical continuity over time.

This socket supports a maximum current rating of 5.7A ensuring reliable electrical performance. Designed with black glass filled polyester housing providing durability and insulation. Phosphor bronze contacts plated with gold deliver excellent conductivity and corrosion resistance.

The connector system is board-to-board with a vertical orientation and through-hole mount type. Operational voltage is rated up to 515V, suitable for industrial and electronic applications. Operates reliably in harsh temperature ranges from -55°C up to 125°C.

Standard pitch of 2.54 mm and row pitch of 2.54 mm enable versatile PCB integration. Includes Tiger Buy™ contact system with low insertion force for easy installation and replacement. This ESQ series socket supports single, double, and triple row configurations up to 108 pins.

Robust termination is achieved through soldering to ensure stable mechanical and electrical connections.

Ideal for electronics manufacturing, hardware prototyping, and systems requiring reliable connector sockets, the Samtec ESQ-105-33-L-D is a trusted component in PCB assembly applications. Explore more Samtec electronic components and connectors at EnvMart for enhanced product solutions.
