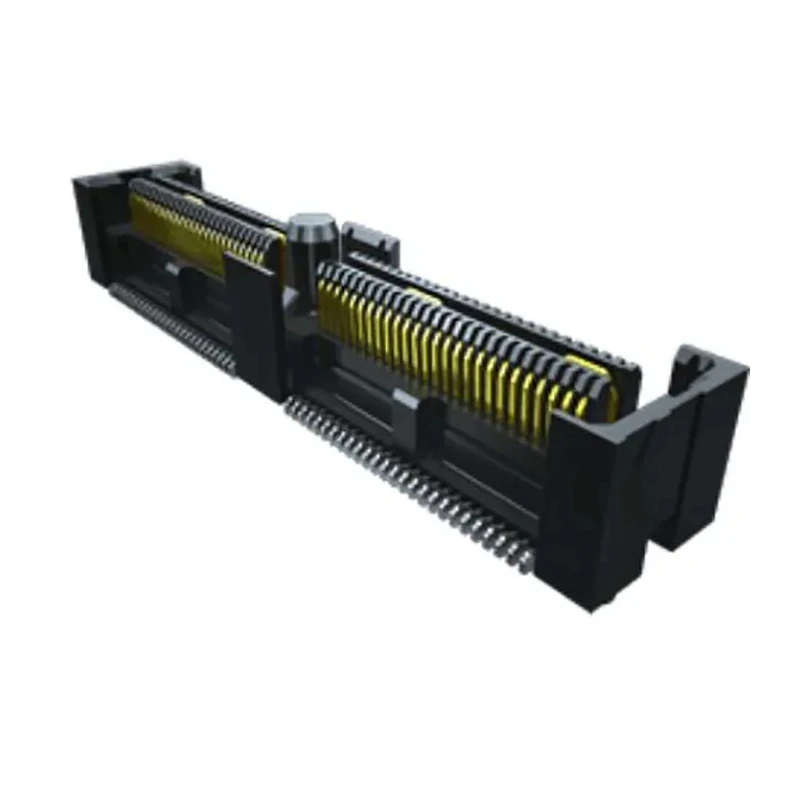

Samtec QFS Series Right Angle Surface PCB Socket 52-Contact 2 Row 0.64 mm Pitch Solder QFS-026-04.25-L-D-A-P-TR

The Samtec QFS-026-04.25-L-D-A-P-TR is a high-quality right angle surface PCB socket featuring 52 contacts arranged in 2 rows with a 0.64 mm pitch for precise and compact PCB connections. This socket is engineered to handle currents up to 15.7A and voltages up to 300V, making it suitable for demanding electronic applications in industrial, manufacturing, and electronic component assembly sectors.

Its housing is made from liquid crystal polymer, ensuring robust mechanical strength and thermal stability, while the contacts are crafted from phosphor bronze with gold plating to provide excellent electrical conductivity and resistance against corrosion. The socket’s solder termination type facilitates secure mounting on PCB surfaces, enhancing the reliability of board-to-board connections.

Designed with a stacking height of 10 mm and a row pitch of 6.48 mm, this connector system is ideal for applications requiring compactness without compromising performance. It is rated for operation across a wide temperature range from -55°C to 125°C, allowing versatile deployment in various environmental conditions.

This PCB socket supports a current of 15.7A, ensuring reliable power handling. Constructed from liquid crystal polymer housing for durability and stability. Termination type is solder, facilitating strong electrical connections.

Contact material is phosphor bronze with gold plating for excellent conductivity and corrosion resistance. Operating temperature range is from -55°C to 125°C for wide application use. Board-to-board connector system with a stacking height of 10 mm and a row pitch of 6.48 mm.

Designed to operate at a voltage of 300V with a right angle orientation for flexible PCB layouts.

Samtec QFS Series connectors are widely employed in industrial electronics, telecommunications, computing hardware, and various control systems where reliable electrical connections and space efficiency are critical. This socket contributes to enhanced signal integrity and mechanical robustness in PCB assemblies.

Overall, the QFS-026-04.25-L-D-A-P-TR model demonstrates an optimal balance of electrical performance, mechanical design, and operational reliability, conforming to industry standards for high-density PCB socket solutions.
