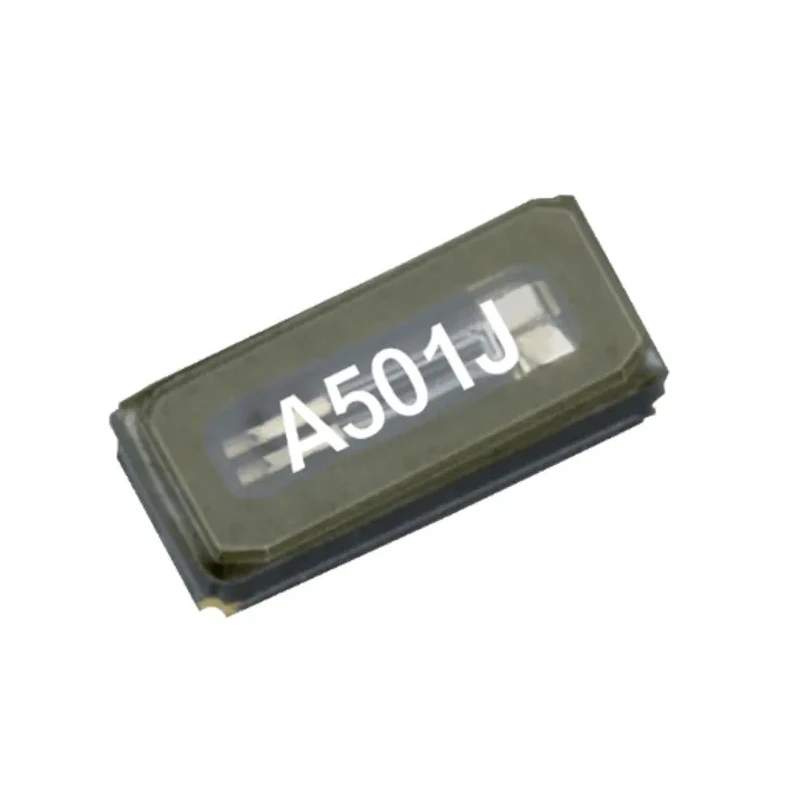

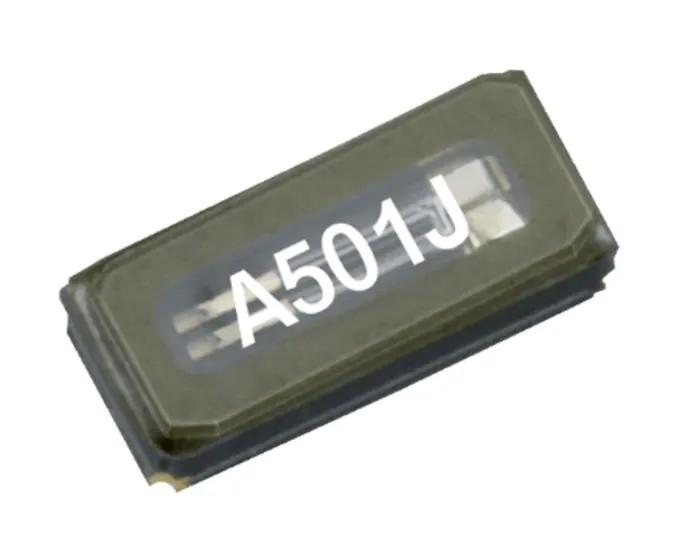

Epson 32.768 MHz Crystal Unit 6pF Load Capacitance SMT 2-Pin Surface Mount X1A000141000612
Specifications
| Country of Origin | India |
|---|---|
| Brand | Epson |
| Height | 0.6mm |
| Operating Temperature Range | -40°C to +85 °C |
| Length | 2.05mm |
| Model | X1A000141000612 |
| Packaging | Tape & Reel |
| Width | 1.2mm |
| Mount Type | Surface |
| Series | X1A |
| Maximum Operating Temperature | 85°C |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 32.768MHz |
| Load Capacitance | 6pF |
| Series Resistance | 90kΩ |
Key Features
- This crystal unit operates with a nominal frequency of 32.768 MHz, suitable for timekeeping applications.
- Surface mount package type SMT with 2 pins enables easy PCB assembly.
- Compact dimensions measuring 2.05 mm length, 1.2 mm width, and 0.6 mm height.
- Operates within a temperature range of -40°C to +85°C, suitable for industrial environments.
- The series resistance is rated at 90 kΩ, ensuring stable oscillation performance.
- Compliance with RoHS directives confirms environmental safety standards.
- Packaged for automated assembly in tape and reel format.
- Ideal for use in small communication devices and electronic equipment requiring precise timing.
Product Description
Epson X1A000141000612 32.768 MHz Crystal Unit features a standard frequency of 32.768 MHz with tight frequency tolerance of ±20 ppm, making it ideal for precise timing applications in diverse electronics.
This surface mount technology (SMT) component provides a compact package with 2 pins, measuring 2.05 mm in length, 1.2 mm in width, and 0.6 mm in height, facilitating efficient mounting on printed circuit boards.
The crystal unit has a load capacitance of 6pF and series resistance of 90 kΩ, parameters that ensure stable and reliable oscillation in the designed operating range. Operating temperature range of -40°C to +85°C allows robust performance in harsh industrial, communication, and embedded system environments.
Packaged in tape and reel format, this unit supports high-volume automated assembly processes common in manufacturing. This crystal unit provides precise frequency stability with ±20 ppm tolerance. Compact SMT package optimizes integration in space-constrained designs.
Wide operating temperature range supports industrial and commercial applications. Compliant with RoHS environmental standards for safer use. Suitable for timing circuits in communication devices and other electronics.
Typical use cases for the Epson X1A000141000612 crystal unit include timing and clock applications in small communication devices, embedded systems, and other electronic hardware requiring frequency accuracy and reliability.
Discover more Crystal Units and related components in EnvMart's Electronics & Electricals category for consistent performance in your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 32.768 MHz, making it suitable for precise timing applications.
The load capacitance of this model is 6pF, which is essential for its oscillation performance.
This unit measures 2.05 mm in length, 1.2 mm in width, and 0.6 mm in height, allowing for compact PCB assembly.
It operates within a temperature range of -40°C to +85°C, suitable for various industrial environments.
The series resistance is rated at 90 kΩ, ensuring stable oscillation performance.
The crystal unit is packaged in tape and reel format, which supports automated assembly processes.
This model uses surface mount technology (SMT) with 2 pins for easy integration onto printed circuit boards.
It complies with RoHS directives, confirming that it meets environmental safety standards.
It is ideal for timing circuits in small communication devices, embedded systems, and other electronic hardware requiring frequency accuracy.
The frequency tolerance is ±20 ppm, providing precise frequency stability for its intended applications.
This unit belongs to the X1A series, which is known for its compact design and reliable performance.
The country of origin for this crystal unit is India.
