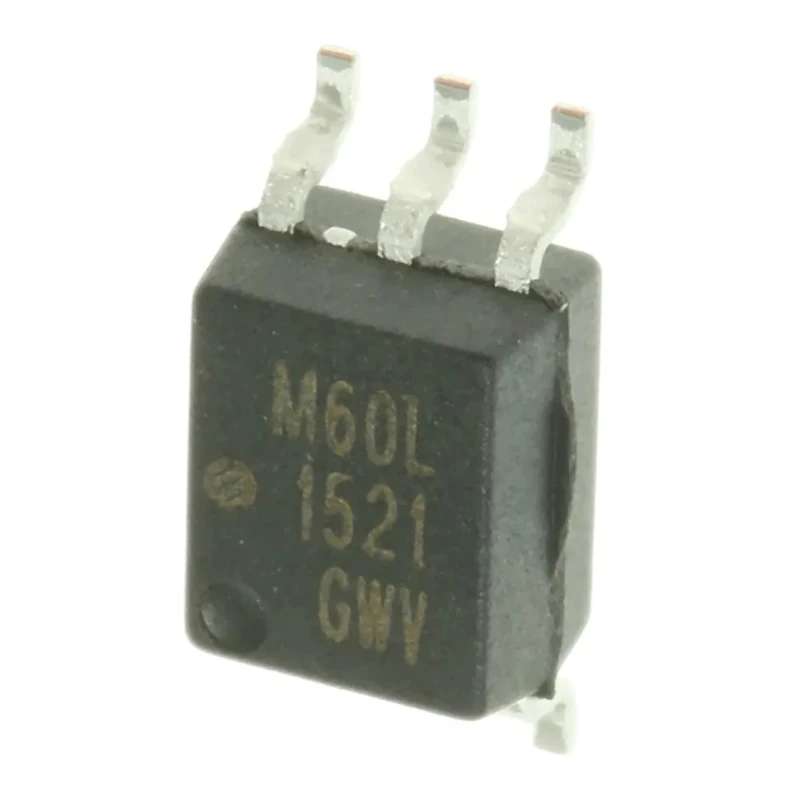

Broadcom DC Input Optocoupler, Surface Mount, 5-Pin SOIC Package, 1 Channel, 3750V AC Isolation, 20mA Max ACPL-M60L-000E

Broadcom ACPL-M60L-000E DC Input Optocoupler is a surface-mounted semiconductor device featuring a 5-pin Small Outline Integrated Circuit (SOIC) package. This optocoupler provides electrical isolation essential in industrial power systems, factory automation, power supplies, and medical equipment, ensuring safe and interference-free communication between circuits.

The device supports a single isolated channel with a maximum isolation voltage of 3750V AC, suitable for high-voltage applications requiring robust isolation. It accepts a DC input current type, with a maximum rating of 20mA, and withstands a maximum forward voltage of 1.75V. Its fast switching capabilities include a typical rise time of 24 nanoseconds and a fall time of 0.02 microseconds, making it ideal for digital logic gate applications operating at 10 MBd.

Operating across a broad temperature range from -40°C to 85°C, the ACPL-M60L-000E ensures reliability in harsh environmental conditions typical of industrial and commercial equipment settings. The component is packaged in tape and reel format, facilitating high-volume automated manufacturing processes.

This optocoupler complies with internationally recognized standards including IEC/EN/DIN EN 60747-5-2, CSA, and UL, assuring quality and safety in critical electronic systems. It is designed specifically for industrial applications rather than automotive systems, offering precise logic output and isolation capabilities.

Applications include isolated communication interfaces, industrial power control, signal isolation in automation equipment, and medical instrumentation requiring electrical safety and noise immunity.

Single-channel 10 MBd digital optocoupler for logic gate isolation. High isolation voltage of 3750V AC ensures safe electrical separation. Fast response times with 24ns rise and 0.02μs fall times. Robust operational temperature range from -40°C to 85°C.

Compliant with IEC/EN/DIN EN 60747-5-2, CSA, and UL standards. Surface mount 5-pin SOIC package supports automated PCB assembly. Suitable for industrial automation, power supplies, and medical devices. Tape and reel packaging for ease of manufacturing integration.

Designed as part of the ACPL series by Broadcom for reliable logic isolation. Explore more industrial electronics and Optocoupler solutions on EnvMart, ensuring quality and compatibility for your electronic component needs.
