| Country of Origin | Malaysia |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 2.2mm |
| Model | BAS16VY,115 |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | BAS16 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-363 (SC-88) |
| Minimum Operating Temperature | -65°C |
| Pin Count | 6 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 500nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 4ns |

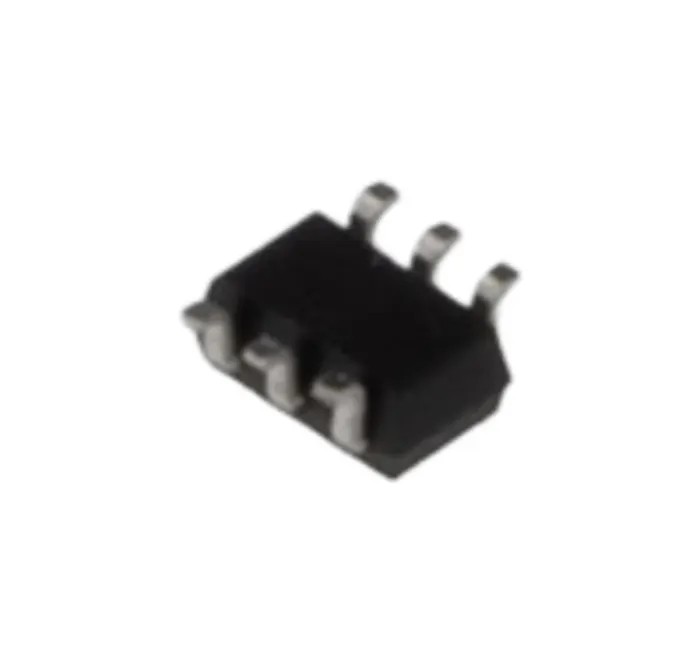

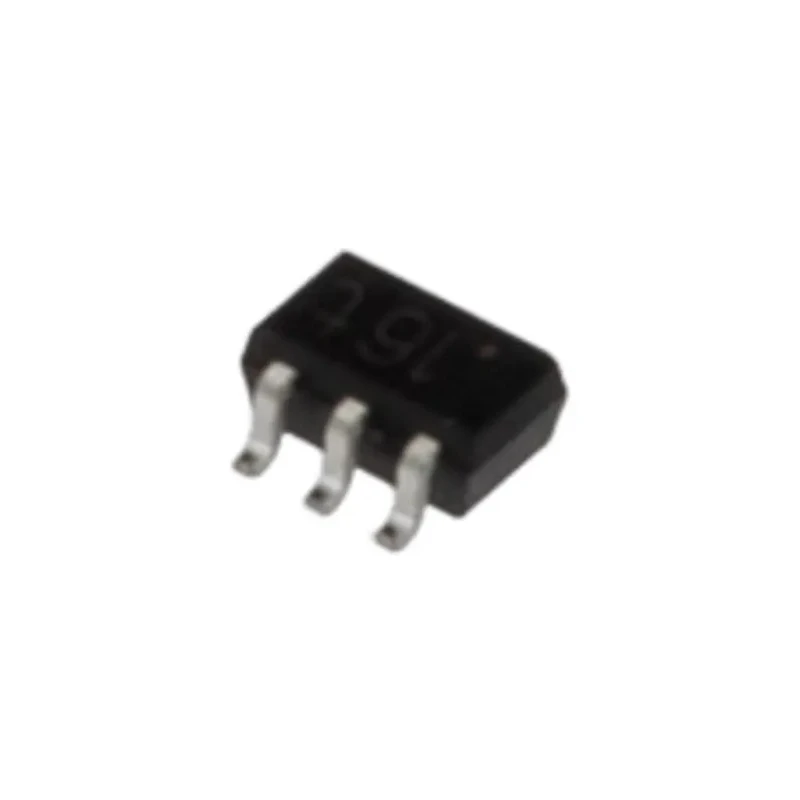

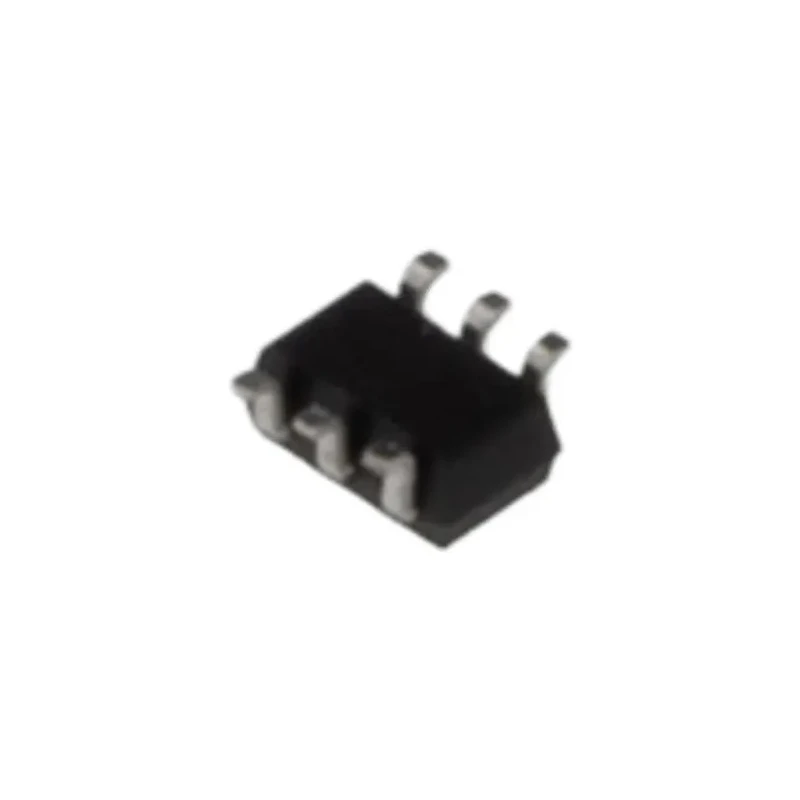

Nexperia BAS16VY,115 is a high-speed switching diode designed for efficient general-purpose switching circuits. It features a voltage rating of 100 V and a maximum continuous forward current of 200 mA, making it suitable for a wide range of electronic and automotive applications.
This diode comes in a space-saving 6-pin SOT-363 (SC-88) surface-mount package, enabling compact PCB layouts. Its peak reverse recovery time of 4 ns allows for fast switching speeds with minimal power loss, improving performance in high-frequency circuits.
The BAS16 series diodes offer low leakage current and low capacitance characteristics, which help maintain signal integrity and reduce noise. The diode also supports a peak non-repetitive forward surge current of 4 A, providing transient robustness.
Operating temperature ranges from -65°C up to 150°C, enabling reliable use in harsh industrial, automotive, and commercial environments. Furthermore, the diode is AEC-Q101 qualified, confirming its automotive-grade reliability standards.
Surface mount SOT-363 package optimizes PCB space usage. Maximum continuous forward current of 200 mA for low current switching. Peak reverse voltage up to 100 V supports stable operation under load. Fast peak reverse recovery time of 4 ns reduces switching losses.
Low leakage current and capacitance for improved circuit performance. High surge current capability of 4 A for protection against transients. Wide operating temperature range from -65°C to 150°C. AEC-Q101 certified for automotive applications.
Isolated diode configuration suitable for discrete switching tasks.
This switching diode is ideally suited for industrial, automotive, telecommunications, and consumer electronics applications requiring reliable, high-speed diode performance. Browse more semiconductor components and switching diodes on EnvMart for your design and manufacturing needs.
