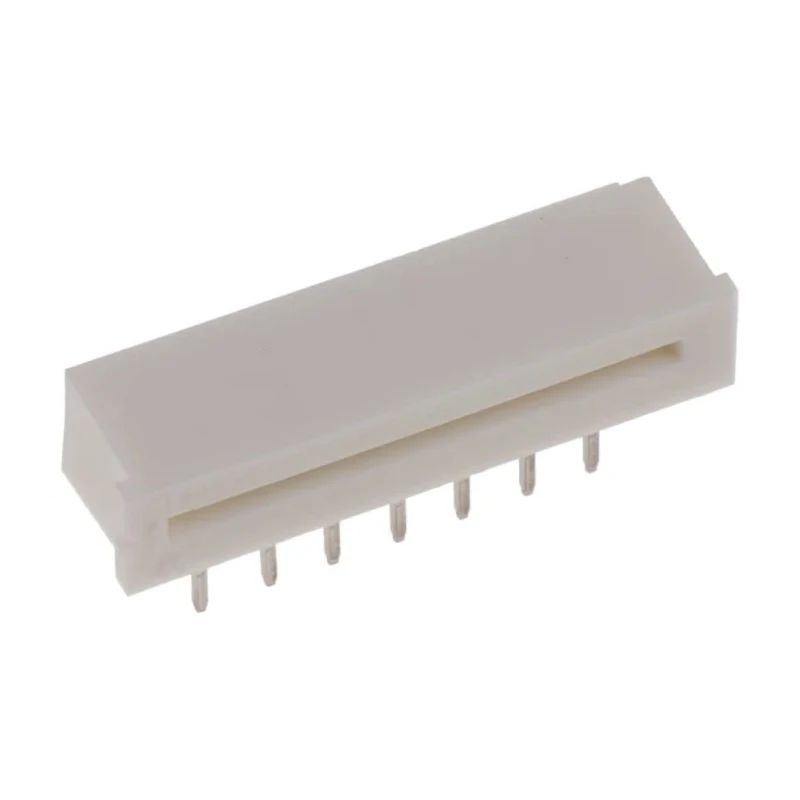

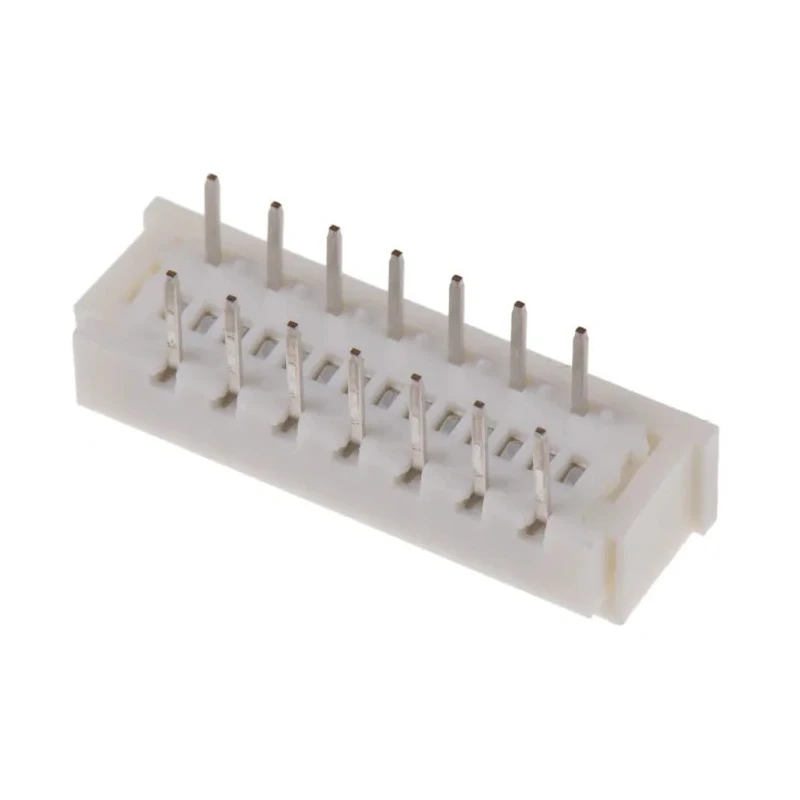

Molex 1.25 mm Pitch 14 Way Right Angle Female FPC Connector Through Hole Solder Termination 39-53-2144

Molex 39-53-2144 is a 14-way female FPC Connector designed for robust and space-efficient PCB connections in electronics and automotive industries. This connector belongs to the 5597 series and features a 1.25 mm pitch with right angle orientation, making it ideal for use in tight packaging environments.

The Zero Insertion Force (ZIF) design enables easy insertion and removal of FPC cables, minimizing contact wear and extending product life. Manufactured with phosphor bronze contacts plated with tin bismuth over nickel, and housed in polybutylene terephthalate, it offers excellent durability and corrosion resistance.

The termination is via solder, and the connector is mountable through hole on PCBs. It supports current up to 1A and voltage up to 200V, operating reliably between -20°C and 80°C. The product features a locking mechanism and slide type actuator to ensure a secure and stable connection with FPC cables.

This connector is suitable for a wide range of industrial, electronic, automotive, and manufacturing applications where compact, reliable connections are critical. Features a 1.25 mm pitch and 14 contacts for reliable connectivity.

Utilizes Zero Insertion Force (ZIF) technology for minimum wear during repeated cycling. Right angle orientation with through hole mounting and solder termination ensures durable installation. Contact material is phosphor bronze with tin bismuth over nickel plating for corrosion resistance.

Operates at up to 200V and 1A current within a temperature range of -20°C to 80°C. Housing is made of polybutylene terephthalate for chemical stability and durability. Locking mechanism with slide type actuator for secure FPC connection.
