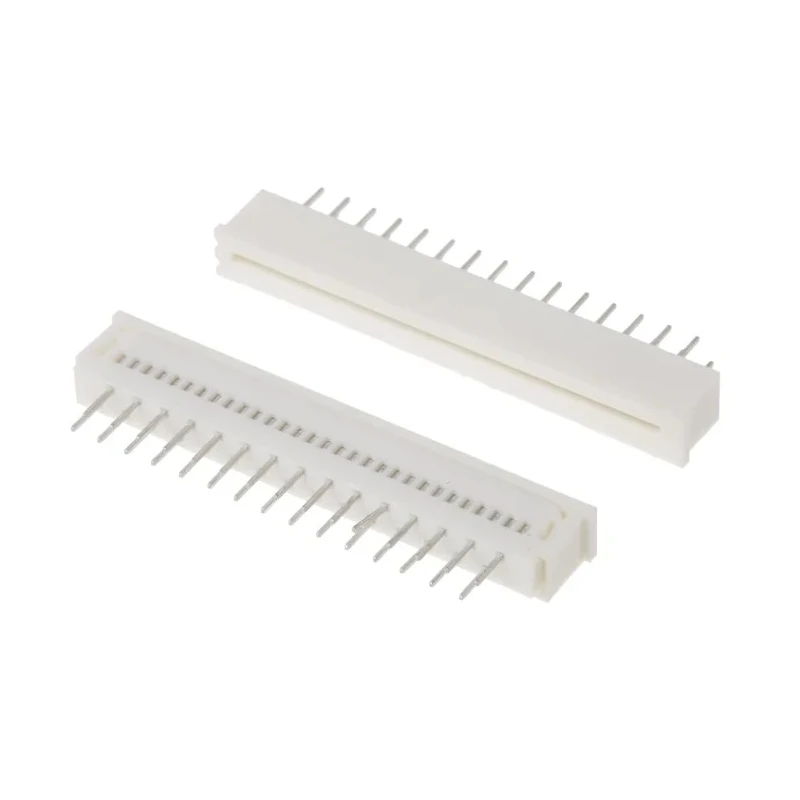

Molex 1.25 mm Pitch 30 Way Straight Female FPC Connector, Through Hole, Solder Termination, 200V, 1A Current 39-53-2305
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- The connector has a 1.25 mm pitch with 30 contact points for secure connectivity.
- Features a zero insertion force (ZIF) slide type actuator for easy FPC insertion and secure mating.
- Constructed with phosphor bronze contacts plated with tin over nickel for durability.
- Through-hole mount type ensures stable mechanical and electrical connection.
- Rated for 1A current and 200V voltage for reliable performance.
- Designed with locking mechanism and straight orientation for secure fit.
- Operating temperature ranges from -20°C to 80°C for versatile applications.
- Housing is made of polyethylene terephthalate for sturdy insulation.
Product Description
Molex 39-53-2305 is a high-quality 1.25 mm pitch 30 way straight female FPC connector designed for through-hole mounting applications in electronics and automotive industries. The connector supports solder termination and operates at a current rating of 1A with a voltage capacity of 200V.
The 5597 series connectors feature zero insertion force (ZIF) technology with a slide type actuator to enable easy insertion and secure connection of flexible printed circuits with minimal wear, allowing for repeat cycling without degradation of contacts. Its compact design and single row of contacts make it suitable for tight packaging needs.
Constructed with phosphor bronze contacts plated with tin over nickel, the connector provides excellent electrical conductivity and corrosion resistance. The polyethylene terephthalate housing ensures mechanical robustness and insulation to withstand operating temperatures from -20°C to 80°C.
This connector includes a locking mechanism to maintain secure electrical connection and a straight orientation facilitating easy board mounting. Its through-hole mount type allows for enhanced mechanical stability compared to surface mount alternatives.
Ideal for industrial and automotive electronic applications requiring reliable, compact, and durable FPC connection solutions. This product is manufactured in Japan, ensuring high engineering standards.
The connector has a 1.25 mm pitch with 30 contact points for secure connectivity. Features a zero insertion force (ZIF) slide type actuator for easy FPC insertion and secure mating. Constructed with phosphor bronze contacts plated with tin over nickel for durability.
Through-hole mount type ensures stable mechanical and electrical connection. Rated for 1A current and 200V voltage for reliable performance. Designed with locking mechanism and straight orientation for secure fit. Operating temperature ranges from -20°C to 80°C for versatile applications.
Housing is made of polyethylene terephthalate for sturdy insulation. Ideal for electronic automotive and other electronics requiring compact FPC connections. For more electronics components like this, explore the FPC Connector category and other advanced connector solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector features a 1.25 mm pitch.
It has 30 contact points for secure connectivity.
It is rated for a current of 1A and a voltage of 200V.
This model uses a through-hole mount type for enhanced mechanical stability.
The contacts are made of phosphor bronze plated with tin over nickel, and the housing is made of polyethylene terephthalate.
It operates within a temperature range of -20°C to 80°C.
Yes, it is designed with a locking mechanism to maintain a secure electrical connection.
This model supports solder termination.
The ZIF feature allows for easy insertion of flexible printed circuits with minimal wear, enabling repeat cycling without degradation of contacts.
It has a straight orientation, which facilitates easy board mounting.
This connector is manufactured in Japan.
It belongs to the 5597 series of connectors.
