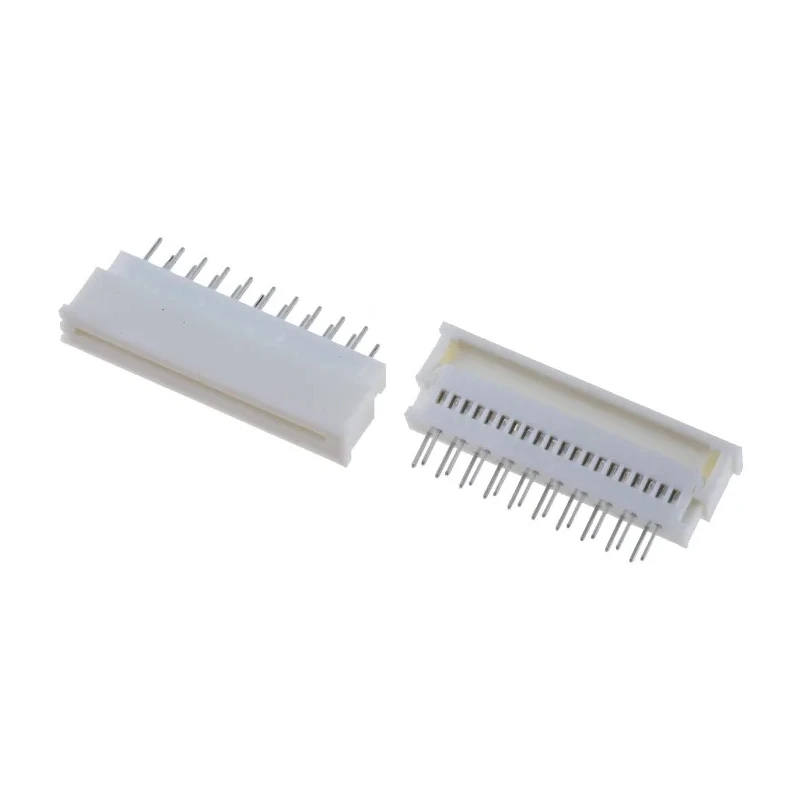

Molex 1.25 mm Pitch 20 Way Straight Female FPC Connector Through Hole Solder Termination 39-53-2205
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| TE Connectivity 1.25mm Pitch 20 Way Straight Female FPC ConnectorBrand | TE Connectivity |
Key Features
- Supports 20 contacts for reliable electrical connection.
- Constructed with phosphor bronze contacts plated with tin over nickel for durability.
- Zero Insertion Force (ZIF) slide actuator enables easy FPC insertion and secure locking mechanism.
- Operates at voltage up to 200V with current rating of 1A.
- Housing made from polyethylene terephthalate for robust electrical insulation.
- Designed for straightforward vertical orientation in compact PCB layouts.
- Rated for temperatures from -20°C to 80°C ensuring versatility in operating environments.
- Single row, easy-on type connector optimized for tight packaging and automotive electronics.
Product Description
Molex 39-53-2205 is a 20 way straight female Flexible Printed Circuit (FPC) connector designed for PCB through hole mounting with solder termination.
Featuring a 1.25 mm pitch and Zero Insertion Force (ZIF) slide type actuator, this connector allows for secure and easy insertion while minimizing wear during repeated connections. The phosphor bronze contacts are plated with tin over nickel providing excellent conductivity and corrosion resistance. The housing material is polyethylene terephthalate, ensuring strong insulation and mechanical stability.
Operating voltage is rated up to 200V with a current capacity of 1A, suitable for a wide range of electronic applications including automotive and other industrial electronics. It accommodates a single row of 20 female contacts arranged for vertical mounting orientation, optimizing for space-saving PCB layouts.
The connector locks firmly using a locking mechanism to maintain reliable connections in demanding environments. It is rated for minimum operating temperatures of -20°C up to a maximum of 80°C, ensuring performance under various environmental conditions.
This connector is ideal for industrial, automotive, and electronic manufacturing sectors where compact, reliable FPC connections are required. The low insertion force design and staggered solder tails facilitate efficient assembly and durability over product life cycles.
Supports 20 contacts for reliable electrical connection. Constructed with phosphor bronze contacts plated with tin over nickel for durability. Zero Insertion Force (ZIF) slide actuator enables easy FPC insertion and secure locking mechanism.
Operates at voltage up to 200V with current rating of 1A. Housing made from polyethylene terephthalate for robust electrical insulation. Designed for straightforward vertical orientation in compact PCB layouts. Rated for temperatures from -20°C to 80°C ensuring versatility in operating environments.
Single row, easy-on type connector optimized for tight packaging and automotive electronics. Explore more in our Electronics & Electricals category for quality FPC Connectors and related components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage of up to 200V and has a current rating of 1A.
It is designed for through hole mounting with solder termination.
The housing is made from polyethylene terephthalate, while the contacts are constructed from phosphor bronze and plated with tin over nickel.
The pitch size of this connector is 1.25 mm.
It supports 20 contacts, allowing for reliable electrical connections.
This connector is rated for operating temperatures from -20°C to 80°C.
It features a straight orientation, designed for vertical mounting in compact PCB layouts.
It utilizes a Zero Insertion Force (ZIF) slide actuator for easy FPC insertion and secure locking.
It is suitable for a wide range of applications, including automotive and other industrial electronics.
The connector locks firmly using a locking mechanism to maintain reliable connections in demanding environments.
This model is part of the Molex 5597 series.
The connector features female contacts, making it a female connector.
