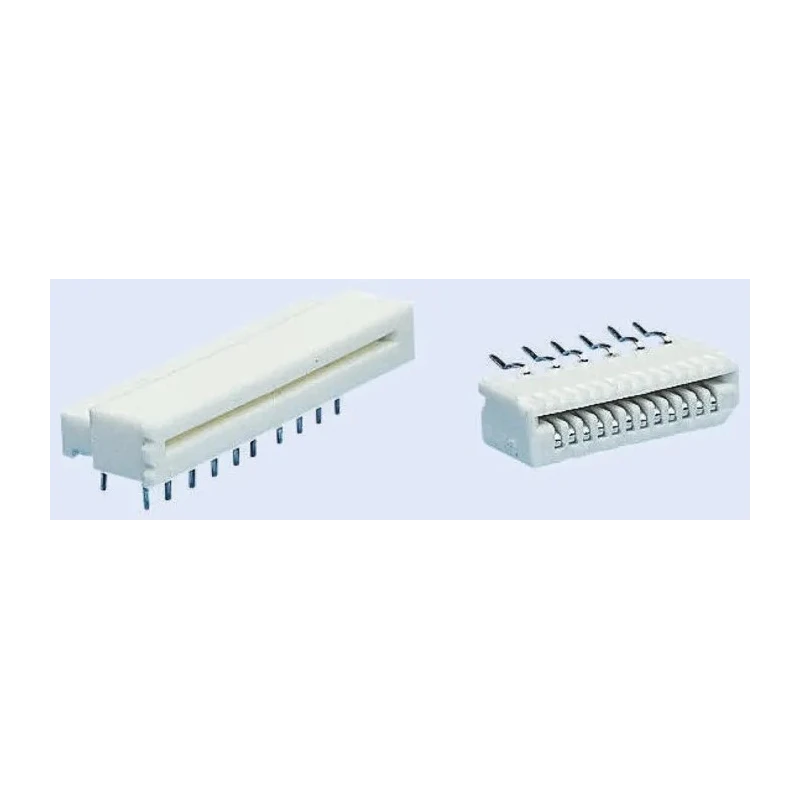

Molex 5597 Series 1.25 mm Pitch 26 Way Right Angle Female FPC Connector Through Hole Solder 39-53-2264
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Molex, 5597 1.25 mm Pitch 26 Way Right Angle Female FPC Connector, SolderBrand | Molex |
Key Features
- Features a 1.25 mm pitch with 26 contact points for reliable electrical connectivity.
- Right angle orientation suitable for space-saving PCB designs.
- Constructed with phosphor bronze contacts plated with tin bismuth over nickel for durability.
- Operates at a voltage rating of 200V and current rating of 1A.
- Includes a slide type actuator enabling zero insertion force and secure connection.
- Housing made from polybutylene terephthalate to resist mechanical stress and temperature.
- Ideal for automotive and electronic applications requiring compact, reliable FPC connections.
- Temperature operating range from -20°C to 80°C ensuring performance across environments.
Product Description
Molex 5597 Series model 39-53-2264 is a 1.25 mm pitch, 26 way right angle female FPC Connector designed for through hole solder mounting applications. This Easy-On connector features a zero insertion force (ZIF) slide actuator to minimize wear during repeated cycling and ensure strong, reliable connections between flexible printed circuits and PCB terminals.
The connector contacts are fabricated from phosphor bronze and plated with tin bismuth over nickel to provide excellent conductivity and corrosion resistance. The housing is crafted from high-quality polybutylene terephthalate, offering mechanical durability and chemical stability.
Rated for a voltage of 200V and current of 1A, it is suitable for low power signal connections typical in automotive and compact electronic devices. The right angle orientation promotes space-saving PCB layouts and ease of assembly in tight package designs. A locking mechanism secures the FPC firmly to prevent accidental disconnections.
Operating temperature ranges from -20°C to 80°C, enabling use in varying environmental conditions commonly encountered in industrial and automotive sectors. The connector has a single row with 26 contacts and supports a pitch of 1.25 mm, compatible with 1.25mm FFC cables. This series is ideal for professionals designing electronic and automotive equipment requiring reliable, compact FPC connectivity.
1.25 mm pitch with 26 contacts ensuring secure signal transmission. Through hole solder mount for robust PCB attachment. ZIF slide actuator minimizes insertion force and wear. Phosphor bronze contact material with tin bismuth nickel plating for durability.
Operating voltage of 200V and current of 1A suitable for signal-level connections. Polybutylene terephthalate housing withstands mechanical and thermal stresses. Right angle female connector supports space-constrained PCB design.
Temperature range from -20°C to 80°C covers typical operating environments. Locking mechanism secures the flexible printed circuit firmly.
This Molex 5597 Series connector supports automotive, electronics manufacturing, telecommunications, and general industrial applications where reliable FPC connection integrity is critical. Available from EnvMart’s Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a pitch of 1.25 mm and has 26 contact points for reliable electrical connectivity.
It operates at a maximum voltage rating of 200V and a current rating of 1A, suitable for low power signal connections.
This connector is designed for through hole solder mounting applications, ensuring a robust attachment to the PCB.
The contacts are made from phosphor bronze and plated with tin bismuth over nickel, while the housing is made from polybutylene terephthalate.
It operates effectively within a temperature range from -20°C to 80°C, accommodating various environmental conditions.
This connector has a right angle orientation, which is suitable for space-saving PCB designs.
Yes, it includes a zero insertion force (ZIF) slide actuator that minimizes wear during repeated cycling and ensures secure connections.
The locking mechanism secures the flexible printed circuit firmly to prevent accidental disconnections during operation.
It is ideal for automotive and electronic applications requiring compact and reliable FPC connections.
This model has a single row with 26 contacts, designed for efficient signal transmission.
The termination type for this connector is solder, which is typical for through hole mounting applications.
The contacts are plated with tin bismuth over nickel, which provides excellent conductivity and corrosion resistance, enhancing the connector's reliability.
