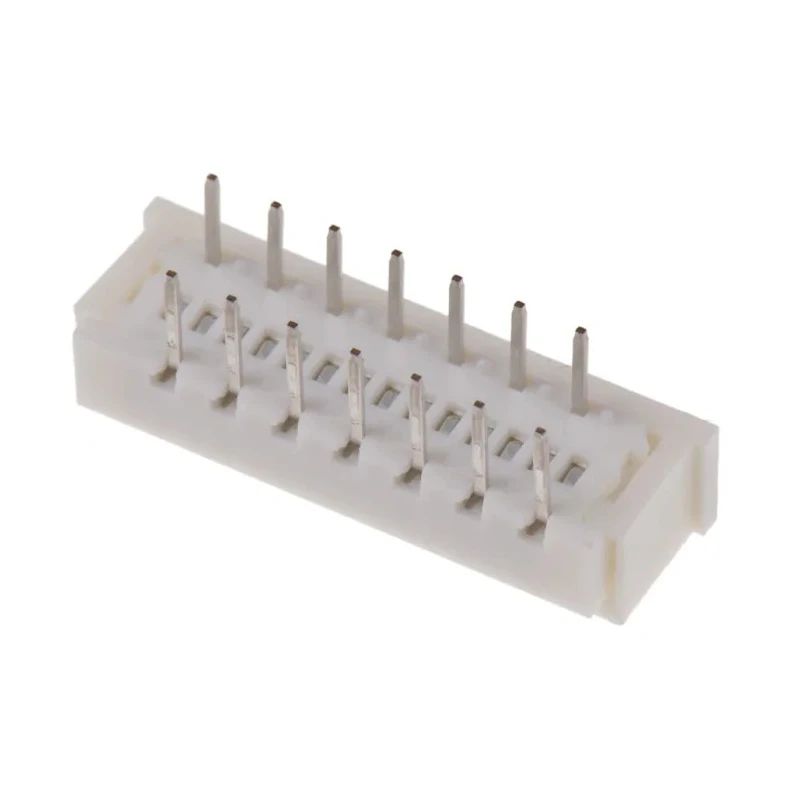

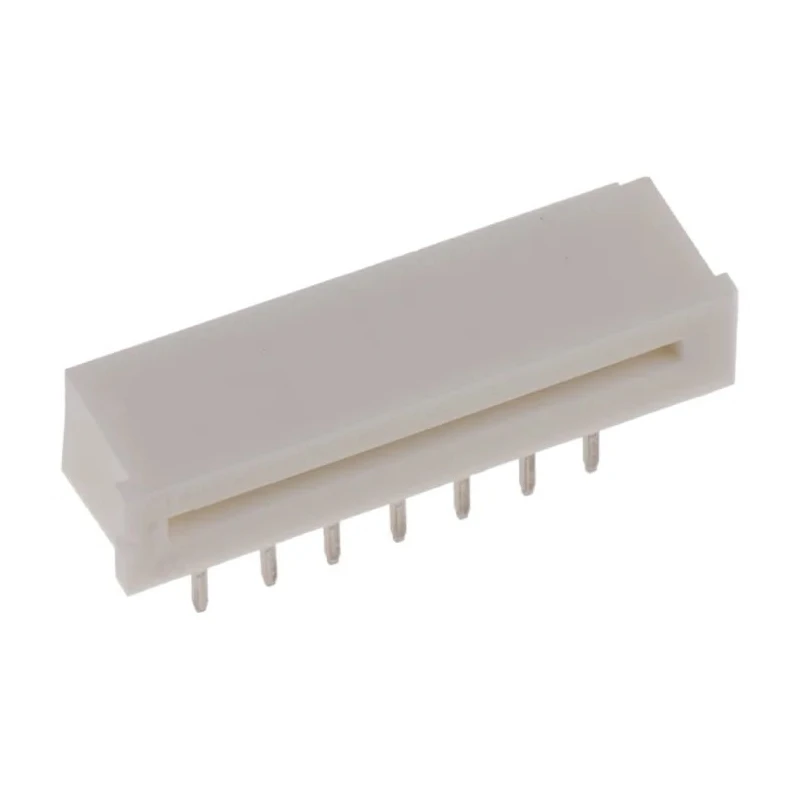

Molex 1.25 mm Pitch 14 Way Right Angle Female FPC Connector Through Hole Solder 39-53-2144
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- Features a reliable right angle orientation for PCB connections.
- Offers Zero Insertion Force (ZIF) with a slide type actuator for easy and secure FPC insertion.
- Constructed with phosphor bronze contacts plated with tin bismuth over nickel.
- Supports operating voltage up to 200V and current rating of 1A.
- Housing is made from durable polybutylene terephthalate to ensure stability.
- Locking mechanism ensures secure mating with FPC cables.
- Rated for operating temperatures between -20°C and 80°C.
- Designed with 14 contacts arranged in a single row with 1.25 mm pitch spacing.
Product Description
Molex 39-53-2144 is a 1.25 mm pitch 14 way right angle female FPC connector designed for through-hole PCB mounting and solder termination. This connector belongs to the 5597 series, offering a low-profile, space-saving design suitable for electronic automotive and other tight packaging applications.
The Zero Insertion Force (ZIF) connector features a slide type actuator that minimizes wear and ensures easy insertion and secure connection of flexible printed circuits (FPCs). The contact material consists of phosphor bronze with tin bismuth plating over nickel, providing reliable electrical performance. The housing is constructed from polybutylene terephthalate, offering mechanical robustness and thermal stability.
Technical highlights include a maximum operating voltage of 200V, current rating of 1A, and operating temperature range from -20°C to 80°C. The connector’s locking mechanism enhances connection integrity during operation. With 14 contacts spaced at a 1.25 mm pitch and arranged in a single row, it effectively supports fine pitch PCB interconnections.
This FPC connector is ideal for use in industrial, automotive, and electronic manufacturing sectors where compact, reliable PCB cable connections are essential. Its right angle orientation allows for space-efficient cable routing in complex assemblies.
Right angle pitch 1.25 mm female connector with 14 contacts for FPC applications. Zero Insertion Force (ZIF) actuator reduces wear and eases cable installation. Phosphor bronze contacts plated with tin bismuth ensure electrical reliability.
Durable polybutylene terephthalate housing for mechanical and thermal resilience. Locking mechanism secures connector mating under operational stresses. Rated for 200V and 1A electrical parameters. Operating temperature range: -20°C to 80°C supports diverse environments.
Through-hole mount suitable for solder termination on PCB assemblies. Explore our extensive selection of FPC Connectors and related components on EnvMart for your electronics production and prototyping needs.
